2001 Lincoln LS
large luxury car / 4-door sedan
Moderate overlap front: original test
Rating applies to 2000-06 models built after February 2000

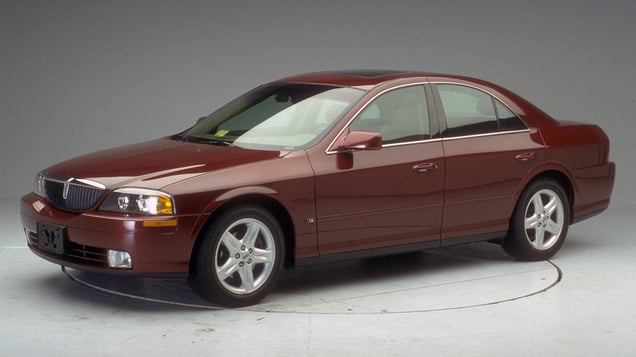

Tested vehicle: 2000 Lincoln LS8 4-door
The Lincoln LS was introduced in the 2000 model year and discontinued after the 2006 model year. All 2000-06 LS models manufactured after February 2000 include structural changes to improve occupant protection in frontal crashes (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door).
The Insurance Institute for Highway Safety has evaluated the crashworthiness of a 2000 LS with the structural changes in a 40 mph frontal offset crash test into a deformable barrier.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
Despite buckling of both doors on the driver side, intrusion into the driver's space was minimal.
Good control of dummy movement allowed the dummy to rebound into the seat without its head coming close to any stiff structure that could cause injury.
Measures of occupant compartment intrusion on driver side
| Test ID | CF00017 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 12 |
| Left (cm) | 14 |
| Center (cm) | 14 |
| Right (cm) | 11 |
| Brake pedal (cm) | 9 |
| Instrument panel rearward movement | |
| Left (cm) | -1 |
| Right (cm) | -3 |
| Steering column movement | |
| Upward (cm) | 0 |
| Rearward (cm) | -4 |
| A-pillar rearward movement (cm) | 4 |
Driver injury measures
| Test ID | CF00017 |
|---|---|
| Head | |
| HIC-15 | 333 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.8 |
| Extension bending moment (Nm) | 18 |
| Maximum Nij | 0.32 |
| Chest maximum compression (mm) | 28 |
| Legs | |
| Femur force - left (kN) | 2.9 |
| Femur force - right (kN) | 1.5 |
| Knee displacement - left (mm) | 8 |
| Knee displacement - right (mm) | 5 |
| Maximum tibia index - left | 0.42 |
| Maximum tibia index - right | 0.48 |
| Tibia axial force - left (kN) | 1.6 |
| Tibia axial force - right (kN) | 3.3 |
| Foot acceleration (g) | |
| Left | 67 |
| Right | 65 |
