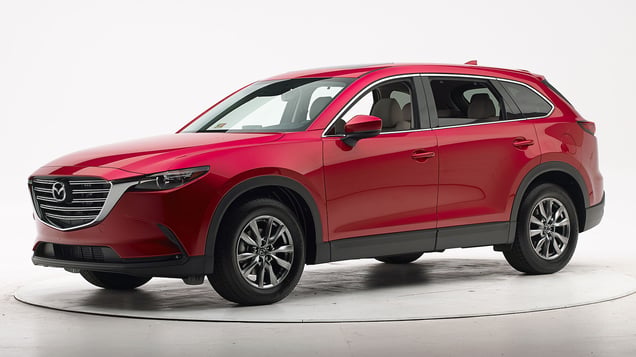

2016 Mazda CX-9

midsize SUV / 4-door SUV

Crashworthiness

Rating overview
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Front crash prevention: vehicle-to-vehicle
Headlights (varies by trim/option)
Optional system	Superior
Optional system	Advanced

Seat belts & child restraints

LATCH ease of use

Other available safety features

Optional blind spot detection
Optional lane departure warning
Optional lane departure prevention

Key

G
Good
A
Acceptable
M
Marginal
P
Poor

Superior
Advanced
Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Roof strength

Rating applies to 2016-23 models

Tested vehicle: 2016 Mazda CX-9 Sport 4-door 4wd

Overall evaluation
Curb weight	4,139 lbs
Peak force	21,311 lbs
Strength-to-weight ratio	5.15

About the roof strength test

Head restraints & seats

Seat type: Power leather seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Technical measurements for this test

Geometry
Seat type	Power leather seat
Backset (mm)	30
Distance below top of head (mm)	2
Seat design parameters
Pass/fail	Pass
Max T1 acceleration (g)	11.9
Head contact time (ms)	60
Force rating	1
Neck forces
Max neck shear force (N)	0
Max neck tension (N)	304

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

Grand Touring trim
Signature trim

Distance at which headlights provide at least 5 lux illumination:
Low-beam headlight type	LED projector
High-beam headlight type	LED projector
Curve-adaptive?	Yes
High-beam assist?	Yes
Overall rating

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was good on both right curves and fair on both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test

Trim level(s)	Grand Touring trim Signature trim
Low-beam headlight type	LED projector
High-beam headlight type	LED projector
Curve-adaptive?	Yes
High-beam assist?	Yes
Overall rating Applies to 2016-18 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	93.9 m	None
Straightaway left edge	46.6 m	None
250m radius right curve, right edge	85.3 m	None
250m radius left curve, left edge	46.7 m	None
150m radius right curve, right edge	75.3 m	None
150m radius left curve, left edge	45.8 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	141.1 m
Straightaway left edge	124.0 m
250m radius right curve, right edge	81.6 m
250m radius left curve, left edge	70.9 m
150m radius right curve, right edge	67.5 m
150m radius left curve, left edge	62.6 m

Trim level(s)

Sport trim
Touring trim

Distance at which headlights provide at least 5 lux illumination:
Low-beam headlight type	LED projector
High-beam headlight type	LED projector
Curve-adaptive?	No
High-beam assist?	No
Overall rating

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on both right curves and inadequate on both left curves.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

Technical measurements for this test

Trim level(s)	Sport trim Touring trim
Low-beam headlight type	LED projector
High-beam headlight type	LED projector
Curve-adaptive?	No
High-beam assist?	No
Overall rating Applies to 2016-18 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	94.2 m	None
Straightaway left edge	45.2 m	None
250m radius right curve, right edge	70.8 m	None
250m radius left curve, left edge	43.7 m	None
150m radius right curve, right edge	55.5 m	None
150m radius left curve, left edge	41.3 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	143.6 m
Straightaway left edge	123.3 m
250m radius right curve, right edge	59.5 m
250m radius left curve, left edge	58.1 m
150m radius right curve, right edge	47.5 m
150m radius left curve, left edge	47.2 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

Ratings are given for 2 different trim variations available on this vehicle.

System details

Optional Smart Brake Support
optional Smart City Brake Support

Package name

Optional Grand Touring or Signature Trims

Overall evaluation

Applies to 2016-17 models

Superior

with optional equipment

This system meets the requirements for forward collision warning.
In the 12 mph test, this vehicle avoided a collision.
In the 25 mph test, this vehicle avoided a collision.

System details

Optional Smart City Brake Support

Package name

Optional Touring Premium Package
standard on Grand Touring and Signature Trims

Overall evaluation

Applies to 2016-17 models

Advanced

with optional equipment

This system does not meet the requirements for forward collision warning.
In the 12 mph test, this vehicle avoided a collision.
In the 25 mph test, this vehicle failed to slow.

About the original front crash prevention test

Child seat anchors

Rating applies to 2016-19 models

Overall evaluation
Vehicle trim	Sport
Seat type	cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Overall evaluation
Vehicle trim	Sport
Seat type	cloth

G	Good
A	Acceptable
M	Marginal
P	Poor
	Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol	Tether anchor
lower anchor symbol	Lower anchors
shared lower achors symbol	Lower anchor(s) can be borrowed from adjacent positions(s)
	No hardware available

Details by seating position

1
1	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
2
2	Tether anchor
	hard-to-find location
	other hardware could be confused for anchor
	Lower anchors
	Can be borrowed from 1 and 3
3
3	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
4
4	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	none available

Technical measurements for this test

Seat position 21

Lower anchor A
Open access rated	No
Depth (cm)	2-4
Force (lbs)	28
Clearance angle (degrees)	84
Lower anchor B
Open access rated	No
Depth (cm)	2-4
Force (lbs)	21
Clearance angle (degrees)	83
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Seat position 22

Lower anchor A
Lower latch is shared for this seat position
Lower anchor B
Lower latch is shared for this seat position
Tether anchor
Location	Bottom seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	No
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Seat position 23

Lower anchor A
Open access rated	No
Depth (cm)	0-2
Force (lbs)	12
Clearance angle (degrees)	83
Lower anchor B
Open access rated	No
Depth (cm)	2-4
Force (lbs)	20
Clearance angle (degrees)	78
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Seat position 33

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

About the child seat anchor evaluation
