2016 Ram 1500
large pickup / Extended cab pickup
Small overlap front: driver-side
Rating applies to 2015-18 models built after July 2015

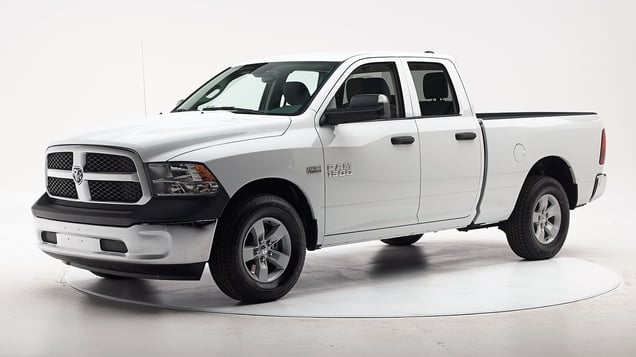

Tested vehicle: 2016 Ram 1500 Tradesman Quad Cab 2wd
The Dodge Ram 1500 Quad Cab was redesigned for the 2009 model year. The make name "Dodge" was officially changed to "Ram" beginning with the 2013 model year.
Beginning with 2015 models built after July 2015, structural changes were made to alter front wheel movement during small overlap frontal crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.
Extensive intrusion of the door hinge pillar, parking brake pedal (indicated), and instrument panel contributed to a high risk of injuries to the left foot and right lower leg.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1546 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 29 |
| Footrest (cm) | 42 |
| Left toepan (cm) | 43 |
| Brake pedal (cm) | 24 |
| Parking brake (cm) | 36 |
| Rocker panel lateral average (cm) | 1 |
| Upper occupant compartment | |
| Steering column | 15 |
| Upper hinge pillar max (cm) | 23 |
| Upper dash (cm) | 22 |
| Lower instrument panel (cm) | 20 |
Driver injury measures
| Test ID | CEN1546 |
|---|---|
| Head | |
| HIC-15 | 286 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.6 |
| Extension bending moment (Nm) | 18 |
| Maximum Nij | 0.27 |
| Chest maximum compression (mm) | 24 |
| Femur (kN) | |
| Left | 4.0 |
| Right | 3.5 |
| Knee displacement (mm) | |
| Left | 3 |
| Right | 3 |
| Knee-thigh-hip injury risk (%) | |
| Left | 1 |
| Right | 1 |
| Maximum tibia index | |
| Left | 0.76 |
| Right | 1.30 |
| Tibia axial force (kN) | |
| Left | 4.0 |
| Right | 3.4 |
| Foot acceleration (g) | |
| Left | 273 |
| Right | 76 |
Moderate overlap front: original test
Rating applies to 2013-18 models
Tested vehicle: 2016 Ram 1500 ST Quad Cab 2wd
The Dodge Ram 1500 Quad Cab was redesigned for the 2009 model year. The make name "Dodge" was officially changed to "Ram" beginning with the 2013 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the moderate overlap frontal crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure that could cause injury.
Forces on the left foot were just high enough to indicate the possibility of injuries.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF1603 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 6 |
| Left (cm) | 8 |
| Center (cm) | 7 |
| Right (cm) | 2 |
| Brake pedal (cm) | 2 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | 0 |
| Rearward (cm) | -2 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | CEF1603 |
|---|---|
| Head | |
| HIC-15 | 143 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 21 |
| Maximum Nij | 0.23 |
| Chest maximum compression (mm) | 25 |
| Legs | |
| Femur force - left (kN) | 2.3 |
| Femur force - right (kN) | 1.1 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.47 |
| Maximum tibia index - right | 0.26 |
| Tibia axial force - left (kN) | 1.9 |
| Tibia axial force - right (kN) | 3.4 |
| Foot acceleration (g) | |
| Left | 155 |
| Right | 70 |
Side: original test
Rating applies to 2013-18 models
Tested vehicle: 2016 Ram 1500 Tradesman Quad Cab 2wd
The Dodge Ram 1500 Quad Cab was redesigned for the 2009 model year. Beginning with 2012 models manufactured after January 2012, side airbags designed to protect drivers' and front passengers' torsos were added to the side curtain airbags previously included. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
The make name "Dodge" was officially changed to "Ram" beginning with the 2013 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES1602 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -15.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES1602 |
|---|---|
| Head HIC-15 | 92 |
| Neck | |
| Tension (kN) | 1.2 |
| Compression (kN) | 0.3 |
| Shoulder | |
| Lateral deflection (mm) | 26 |
| Lateral force (kN) | 0.9 |
| Torso | |
| Maximum deflection (mm) | 44 |
| Average deflection (mm) | 39 |
| Maximum deflection rate (m/s) | 3.80 |
| Maximum viscous criterion (m/s) | 0.77 |
| Pelvis | |
| Iliac force (kN) | 2.3 |
| Acetabulum force (kN) | 0.9 |
| Combined force (kN) | 3.3 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 37 |
| A-P moment (Nm) | -15 |
Passenger injury measures
| Test ID | CES1602 |
|---|---|
| Head HIC-15 | 285 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.9 |
| Shoulder | |
| Lateral deflection (mm) | 42 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 43 |
| Average deflection (mm) | 29 |
| Maximum deflection rate (m/s) | 4.97 |
| Maximum viscous criterion (m/s) | 0.62 |
| Pelvis | |
| Iliac force (kN) | 0.3 |
| Acetabulum force (kN) | 2.5 |
| Combined force (kN) | 2.7 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 64 |
| A-P moment (Nm) | -52 |
Roof strength
Rating applies to 2013-18 models
Tested vehicle: 2016 Ram 1500 Tradesman Quad Cab 2wd
| Overall evaluation | |
|---|---|
| Curb weight | 5,120 lbs |
| Peak force | 16,255 lbs |
| Strength-to-weight ratio | 3.17 |
Head restraints & seats
Seat type: Power cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 61 |
| Distance below top of head (mm) | 37 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 8.6 |
| Head contact time (ms) | 74 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 21 |
| Max neck tension (N) | 527 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Headlights
Ratings are given for 3 different headlight variations available on this vehicle.
Trim level(s)
- Tradesmen trim
- Express trim
- Lone Star trim
- Big Horn trim
- Tradesmen HFE trim
- Outdoorsman trim
- SLT trim
| Low-beam headlight type | Halogen reflector |
|---|---|
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on the left side of the road and inadequate on the right side. On curves, visibility was inadequate in all 4 tests.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual left and gradual right curves and inadequate on the sharp left and sharp right curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | Halogen reflector |
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2016-18 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 77.0 m | None |
| Straightaway left edge | 55.2 m | None |
| 250m radius right curve, right edge | 48.1 m | None |
| 250m radius left curve, left edge | 48.1 m | None |
| 150m radius right curve, right edge | 39.5 m | None |
| 150m radius left curve, left edge | 40.1 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 144.6 m |
| Straightaway left edge | 136.7 m |
| 250m radius right curve, right edge | 68.2 m |
| 250m radius left curve, left edge | 68.3 m |
| 150m radius right curve, right edge | 49.8 m |
| 150m radius left curve, left edge | 50.3 m |
Trim level(s)
- Sport trim equipped with Convenience Group package
- Laramie trim equipped with Convenience Group package
- Laramie Longhorn trim equipped with Convenience Group package
- Limited trim
| Low-beam headlight type | Halogen projector |
|---|---|
| High-beam headlight type | Halogen projector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was inadequate in all 4 tests.
The low beams created excessive glare.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual left curve and inadequate on the sharp left and both right curves.
High-beam assist compensates for some limitations of this vehicle's low beams on both left curves and on both right curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | Halogen projector |
| High-beam headlight type | Halogen projector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating Applies to 2016-18 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 102.5 m | 82.3% |
| Straightaway left edge | 63.2 m | 82.3% |
| 250m radius right curve, right edge | 49.7 m | 77.5% |
| 250m radius left curve, left edge | 48.5 m | None |
| 150m radius right curve, right edge | 39.4 m | 111.3% |
| 150m radius left curve, left edge | 38.6 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 144.8 m |
| Straightaway left edge | 128.0 m |
| 250m radius right curve, right edge | 61.8 m |
| 250m radius left curve, left edge | 65.3 m |
| 150m radius right curve, right edge | 46.2 m |
| 150m radius left curve, left edge | 47.9 m |
Trim level(s)
- Sport trim
- Laramie trim
- Rebel trim
- Laramie Longhorn trim
| Low-beam headlight type | Halogen projector |
|---|---|
| High-beam headlight type | Halogen projector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was inadequate in all 4 tests.
The low beams created excessive glare.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual left curve and inadequate on the sharp left and both right curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | Halogen projector |
| High-beam headlight type | Halogen projector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2016-18 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 102.5 m | 82.3% |
| Straightaway left edge | 63.2 m | 82.3% |
| 250m radius right curve, right edge | 49.7 m | 77.5% |
| 250m radius left curve, left edge | 48.5 m | None |
| 150m radius right curve, right edge | 39.4 m | 111.3% |
| 150m radius left curve, left edge | 38.6 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 144.8 m |
| Straightaway left edge | 128.0 m |
| 250m radius right curve, right edge | 61.8 m |
| 250m radius left curve, left edge | 65.3 m |
| 150m radius right curve, right edge | 46.2 m |
| 150m radius left curve, left edge | 47.9 m |
Child seat anchors
Rating applies to 2016-18 models
| Overall evaluation | |
| Vehicle trim | Tradesman Quad Cab |
| Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
| Overall evaluation | |
| Vehicle trim | Tradesman Quad Cab |
| Seat type | cloth |
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| 1 | |
|---|---|
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| none available | |
| 3 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors |
Seat position 21
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 26 |
| Clearance angle (degrees) | 74 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 24 |
| Clearance angle (degrees) | 72 |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
| Lower anchor A | |
|---|---|
| No lower latch for this seat position | |
| Lower anchor B | |
| No lower latch for this seat position | |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 23 |
| Clearance angle (degrees) | 75 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 26 |
| Clearance angle (degrees) | 74 |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
