Moderate overlap front: original test
Rating applies to 2010-24 models

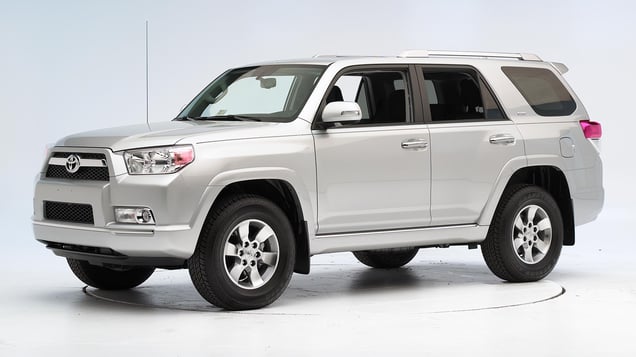

Tested vehicle: 2010 Toyota 4Runner SR5 4-door 4wd
The Toyota 4Runner was redesigned for the 2010 model year. Frontal ratings are assigned by the Institute based on a test conducted by Toyota.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF0910 |
---|---|
Footwell intrusion | |
Footrest (cm) | 9 |
Left (cm) | 11 |
Center (cm) | 12 |
Right (cm) | 10 |
Brake pedal (cm) | 3 |
Instrument panel rearward movement | |
Left (cm) | 0 |
Right (cm) | 1 |
Steering column movement | |
Upward (cm) | -5 |
Rearward (cm) | -5 |
A-pillar rearward movement (cm) | 1 |
Driver injury measures
Test ID | VTF0910 |
---|---|
Head | |
HIC-15 | 357 |
Peak gs at hard contact | 71 |
Neck | |
Tension (kN) | 1.5 |
Extension bending moment (Nm) | 22 |
Maximum Nij | 0.30 |
Chest maximum compression (mm) | 21 |
Legs | |
Femur force - left (kN) | 1.5 |
Femur force - right (kN) | 1.6 |
Knee displacement - left (mm) | 3 |
Knee displacement - right (mm) | 1 |
Maximum tibia index - left | 0.49 |
Maximum tibia index - right | 0.31 |
Tibia axial force - left (kN) | 2.6 |
Tibia axial force - right (kN) | 3.3 |
Foot acceleration (g) | |
Left | 94 |
Right | 111 |
Side: original test
Rating applies to 2010-13 models
Tested vehicle: 2010 Toyota 4Runner SR5 4-door 4wd with front and second row head curtain airbags and front seat-mounted torso airbags (vehicle not equipped with third row seats)
The Toyota 4Runner was redesigned for the 2010 model year. Side ratings are assigned by the Institute based on a test conducted by Toyota.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS1002 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -16.5 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1002 |
---|---|
Head HIC-15 | 126 |
Neck | |
Tension (kN) | 0.0 |
Compression (kN) | 0.7 |
Shoulder | |
Lateral deflection (mm) | 35 |
Lateral force (kN) | 1.8 |
Torso | |
Maximum deflection (mm) | 23 |
Average deflection (mm) | 21 |
Maximum deflection rate (m/s) | 3.30 |
Maximum viscous criterion (m/s) | 0.29 |
Pelvis | |
Iliac force (kN) | 1.5 |
Acetabulum force (kN) | 3.2 |
Combined force (kN) | 4.6 |
Left femur | |
L-M force (kN) | 1.0 |
L-M moment (Nm) | 57 |
A-P moment (Nm) | -149 |
Passenger injury measures
Test ID | VTS1002 |
---|---|
Head HIC-15 | 120 |
Neck | |
Tension (kN) | 0.5 |
Compression (kN) | 0.1 |
Shoulder | |
Lateral deflection (mm) | 28 |
Lateral force (kN) | 1.6 |
Torso | |
Maximum deflection (mm) | 29 |
Average deflection (mm) | 17 |
Maximum deflection rate (m/s) | 2.90 |
Maximum viscous criterion (m/s) | 0.31 |
Pelvis | |
Iliac force (kN) | 0.3 |
Acetabulum force (kN) | 2.7 |
Combined force (kN) | 2.6 |
Left femur | |
L-M force (kN) | 1.0 |
L-M moment (Nm) | 24 |
A-P moment (Nm) | 53 |
Roof strength
Rating applies to 2010-13 models built before November 2012
Tested vehicle: 2010 Toyota 4Runner SR5 4-door 4wd
Overall evaluation | |
---|---|
Curb weight | 4,734 lbs |
Peak force | 18,334 lbs |
Strength-to-weight ratio | 3.87 |
Head restraints & seats
Seat type: Manual cloth seats AHR
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Manual cloth seats AHR |
---|---|
Geometry | |
Backset (mm) | 44 |
Distance below top of head (mm) | 30 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 11.4 |
Head contact time (ms) | 68 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 44 |
Max neck tension (N) | 532 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
