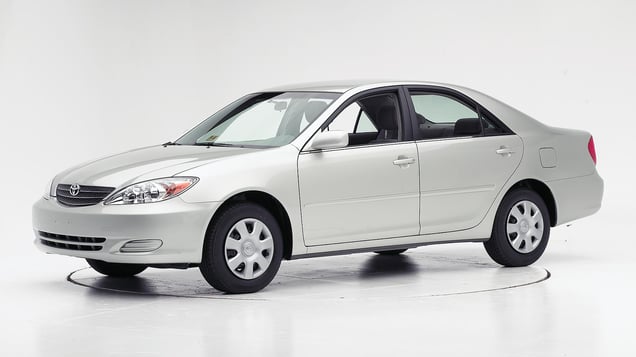

2004 Toyota Camry
midsize car / 4-door sedan
Moderate overlap front: original test
Rating applies to 2002-06 models
Tested vehicle: 2002 Toyota Camry XLE 4-door
The Toyota Camry was redesigned for the 2002 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.
Smeared greasepaint indicates where the dummy's head hit the B-pillar, roof rail, and head restraint during rebound. Head accelerations from these hits were low.
Forces on the lower right leg were high enough to indicate the possibility of injury.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0202 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 4 |
| Left (cm) | 6 |
| Center (cm) | 7 |
| Right (cm) | 5 |
| Brake pedal (cm) | 7 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 0 |
| Steering column movement | |
| Upward (cm) | 2 |
| Rearward (cm) | -1 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | CEF0202 |
|---|---|
| Head | |
| HIC-15 | 441 |
| Peak gs at hard contact | 36 |
| Neck | |
| Tension (kN) | 1.8 |
| Extension bending moment (Nm) | 52 |
| Maximum Nij | 0.61 |
| Chest maximum compression (mm) | 33 |
| Legs | |
| Femur force - left (kN) | 1.4 |
| Femur force - right (kN) | 1.8 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.39 |
| Maximum tibia index - right | 0.99 |
| Tibia axial force - left (kN) | 1.9 |
| Tibia axial force - right (kN) | 5.4 |
| Foot acceleration (g) | |
| Left | 50 |
| Right | 56 |
Side: original test
Rating applies to 2004-06 models
Tested vehicle: 2004 Toyota Camry LE 4-door with optional front and rear head curtain airbags and optional front seat-mounted torso airbags
The Toyota Camry was redesigned for the 2002 model year. Beginning with 2004 models, side structural changes were made to improve occupant protection in side-impact crashes in cars equipped with optional side airbags.
Two tests of the Camry were conducted, one with optional side airbags for the driver and rear passenger, and one without. These vehicles are rated separately, except that the structural ratings for both vehicles are based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Action shot taken during the side impact crash test showing the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.
Smeared greasepaint shows where the rear passenger dummy's head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0315 | CES0316 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -4.0 | -7.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Test ID | CES0315 |
|---|---|
| Head HIC-15 | 406 |
| Neck | |
| Tension (kN) | 0.8 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 51 |
| Lateral force (kN) | 1.8 |
| Torso | |
| Maximum deflection (mm) | 38 |
| Average deflection (mm) | 29 |
| Maximum deflection rate (m/s) | 5.59 |
| Maximum viscous criterion (m/s) | 0.74 |
| Pelvis | |
| Iliac force (kN) | 3.0 |
| Acetabulum force (kN) | 3.4 |
| Combined force (kN) | 6.0 |
| Left femur | |
| L-M force (kN) | 0.4 |
| L-M moment (Nm) | 53 |
| A-P moment (Nm) | 28 |
Passenger injury measures
| Test ID | CES0315 |
|---|---|
| Head HIC-15 | 321 |
| Neck | |
| Tension (kN) | 0.3 |
| Compression (kN) | 0.9 |
| Shoulder | |
| Lateral deflection (mm) | 35 |
| Lateral force (kN) | 1.6 |
| Torso | |
| Maximum deflection (mm) | 49 |
| Average deflection (mm) | 34 |
| Maximum deflection rate (m/s) | 3.83 |
| Maximum viscous criterion (m/s) | 0.89 |
| Pelvis | |
| Iliac force (kN) | 1.8 |
| Acetabulum force (kN) | 2.3 |
| Combined force (kN) | 3.9 |
| Left femur | |
| L-M force (kN) | 0.9 |
| L-M moment (Nm) | 109 |
| A-P moment (Nm) | -43 |
Rating applies to 2002-06 models
Tested vehicle: 2004 Toyota Camry LE 4-door without optional side airbags
The Toyota Camry was redesigned for the 2002 model year. Beginning with 2004 models, side structural changes were made to improve occupant protection in side-impact crashes. (Toyota reported that the structural changes would not significantly affect side-impact performance in models without side airbags; therefore the overall side impact rating for 2002-06 models without side airbags is the same.)
Two tests of the Camry were conducted, one with optional side airbags for the driver and rear passenger, and one without. These vehicles are rated separately, except that the structural ratings for both vehicles are based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection The dummy's head was hit by the intruding barrier, producing high head injury measures. |
|
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection The dummy's head was hit by the pillar behind the rear passenger door and the window sill of the rear door. This pillar is required by federal standard to provide some protection for occupants' heads. The impact with the window sill did not produce high head injury measures, but the head protection is inadequate. |
|
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing damage to the occupant compartment.
Action shot taken during the side impact crash test showing the driver dummy's head being hit by the intruding barrier.
A prominent dent and glass marks indicate where the driver dummy's head hit the barrier.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0315 | CES0316 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -4.0 | -7.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Test ID | CES0316 |
|---|---|
| Head HIC-15 | 1,619 |
| Neck | |
| Tension (kN) | 2.0 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 62 |
| Lateral force (kN) | 4.5 |
| Torso | |
| Maximum deflection (mm) | 46 |
| Average deflection (mm) | 31 |
| Maximum deflection rate (m/s) | 5.31 |
| Maximum viscous criterion (m/s) | 1.07 |
| Pelvis | |
| Iliac force (kN) | 2.4 |
| Acetabulum force (kN) | 2.8 |
| Combined force (kN) | 4.5 |
| Left femur | |
| L-M force (kN) | 0.6 |
| L-M moment (Nm) | 118 |
| A-P moment (Nm) | 37 |
Passenger injury measures
| Test ID | CES0316 |
|---|---|
| Head HIC-15 | 275 |
| Neck | |
| Tension (kN) | 0.9 |
| Compression (kN) | 1.0 |
| Shoulder | |
| Lateral deflection (mm) | 36 |
| Lateral force (kN) | 1.6 |
| Torso | |
| Maximum deflection (mm) | 57 |
| Average deflection (mm) | 40 |
| Maximum deflection rate (m/s) | 5.49 |
| Maximum viscous criterion (m/s) | 1.33 |
| Pelvis | |
| Iliac force (kN) | 2.0 |
| Acetabulum force (kN) | 1.7 |
| Combined force (kN) | 3.4 |
| Left femur | |
| L-M force (kN) | 0.6 |
| L-M moment (Nm) | 107 |
| A-P moment (Nm) | 32 |
Head restraints & seats
Seat type: Cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 60 |
| Distance below top of head (mm) | 60 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 13.4 |
| Head contact time (ms) | 96 |
| Force rating | 2 |
| Neck forces | |
| Max neck shear force (N) | 115 |
| Max neck tension (N) | 1,073 |
Seat type: Leather seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Leather seats |
|---|---|
| Geometry | |
| Backset (mm) | 42 |
| Distance below top of head (mm) | 65 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 11.8 |
| Head contact time (ms) | 106 |
| Force rating | 3 |
| Neck forces | |
| Max neck shear force (N) | 178 |
| Max neck tension (N) | 1,166 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
