Small overlap front: driver-side
Rating applies to 2014-16 models

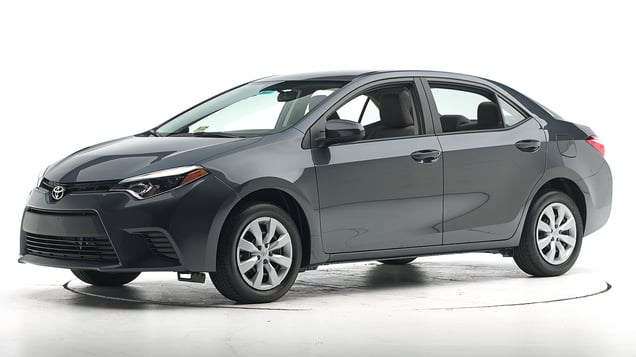

Tested vehicle: 2014 Toyota Corolla LE 4-door
The Toyota Corolla was redesigned for the 2014 model year.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics
The dummy’s movement was reasonably well controlled. The dummy’s head contacted the frontal airbag but rolled to the left as the steering wheel moved 11 cm to the right, leaving the head vulnerable to contact with forward structure. Additionally, the seat belt allowed excessive forward excursion of the dummy’s head and torso. The side curtain airbag deployed and had sufficient forward coverage to protect the head from contact with side structure and outside objects. The side torso airbag also deployed. |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.
During the crash, the seat belt allowed the dummy to move too far forward, as is evident from the gap between the seat back and the dummy's torso.
Door hinge pillar and instrument panel intrusion was extensive and contributed to a moderate risk of injury to the left lower leg.
Measures of occupant compartment intrusion on driver side
Test ID | CEN1332 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 32 |
Footrest (cm) | 14 |
Left toepan (cm) | 7 |
Brake pedal (cm) | 6 |
Parking brake (cm) | |
Rocker panel lateral average (cm) | 8 |
Upper occupant compartment | |
Steering column | 2 |
Upper hinge pillar max (cm) | 17 |
Upper dash (cm) | 20 |
Lower instrument panel (cm) | 20 |
Driver injury measures
Test ID | CEN1332 |
---|---|
Head | |
HIC-15 | 154 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.2 |
Extension bending moment (Nm) | 10 |
Maximum Nij | 0.24 |
Chest maximum compression (mm) | 21 |
Femur (kN) | |
Left | 2.4 |
Right | 2.0 |
Knee displacement (mm) | |
Left | 4 |
Right | 1 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.82 |
Right | 0.49 |
Tibia axial force (kN) | |
Left | 2.2 |
Right | 3.9 |
Foot acceleration (g) | |
Left | 46 |
Right | 64 |
Moderate overlap front: original test
Rating applies to 2014-19 models
Tested vehicle: 2014 Toyota Corolla 4-door
The Toyota Corolla was redesigned for the 2014 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Toyota.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF1308 |
---|---|
Footwell intrusion | |
Footrest (cm) | 6 |
Left (cm) | 10 |
Center (cm) | 11 |
Right (cm) | 5 |
Brake pedal (cm) | 4 |
Instrument panel rearward movement | |
Left (cm) | 0 |
Right (cm) | 0 |
Steering column movement | |
Upward (cm) | -2 |
Rearward (cm) | -4 |
A-pillar rearward movement (cm) | 2 |
Driver injury measures
Test ID | VTF1308 |
---|---|
Head | |
HIC-15 | 253 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.5 |
Extension bending moment (Nm) | 12 |
Maximum Nij | 0.27 |
Chest maximum compression (mm) | 29 |
Legs | |
Femur force - left (kN) | 1.6 |
Femur force - right (kN) | 2.8 |
Knee displacement - left (mm) | 1 |
Knee displacement - right (mm) | 2 |
Maximum tibia index - left | 0.45 |
Maximum tibia index - right | 0.98 |
Tibia axial force - left (kN) | 2.3 |
Tibia axial force - right (kN) | 4.4 |
Foot acceleration (g) | |
Left | 46 |
Right | 56 |
Side: original test
Rating applies to 2014-19 models
Tested vehicle: 2014 Toyota Corolla 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Toyota Corolla was redesigned for the 2014 model year. Side ratings are assigned by the Institute based on a test conducted by Toyota.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS1302 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -18.5 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1302 |
---|---|
Head HIC-15 | 294 |
Neck | |
Tension (kN) | 0.5 |
Compression (kN) | 0.0 |
Shoulder | |
Lateral deflection (mm) | 48 |
Lateral force (kN) | 1.5 |
Torso | |
Maximum deflection (mm) | 31 |
Average deflection (mm) | 25 |
Maximum deflection rate (m/s) | 2.40 |
Maximum viscous criterion (m/s) | 0.42 |
Pelvis | |
Iliac force (kN) | 1.5 |
Acetabulum force (kN) | 1.9 |
Combined force (kN) | 3.4 |
Left femur | |
L-M force (kN) | 0.8 |
L-M moment (Nm) | 44 |
A-P moment (Nm) | -111 |
Passenger injury measures
Test ID | VTS1302 |
---|---|
Head HIC-15 | 234 |
Neck | |
Tension (kN) | 0.2 |
Compression (kN) | 1.1 |
Shoulder | |
Lateral deflection (mm) | 40 |
Lateral force (kN) | 1.3 |
Torso | |
Maximum deflection (mm) | 33 |
Average deflection (mm) | 26 |
Maximum deflection rate (m/s) | 2.80 |
Maximum viscous criterion (m/s) | 0.46 |
Pelvis | |
Iliac force (kN) | 0.6 |
Acetabulum force (kN) | 1.1 |
Combined force (kN) | 1.5 |
Left femur | |
L-M force (kN) | 1.6 |
L-M moment (Nm) | 66 |
A-P moment (Nm) | 238 |
Roof strength
Rating applies to 2014-19 models
Tested vehicle: 2014 Toyota Corolla LE 4-door
Overall evaluation | |
---|---|
Curb weight | 2,834 lbs |
Peak force | 15,228 lbs |
Strength-to-weight ratio | 5.37 |
Head restraints & seats
Seat type: Manual cloth seat
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Manual cloth seat |
---|---|
Geometry | |
Backset (mm) | 21 |
Distance below top of head (mm) | 16 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 12.8 |
Head contact time (ms) | 61 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 0 |
Max neck tension (N) | 509 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Child seat anchors
Rating applies to 2015 models
Overall evaluation | |
Vehicle trim | LE |
Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
Overall evaluation | |
Vehicle trim | LE |
Seat type | cloth |
G | Good |
A | Acceptable |
M | Marginal |
P | Poor |
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
Lower anchor(s) can be borrowed from adjacent positions(s) | |
No hardware available |
Details by seating position
1 | |
---|---|
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
difficult to maneuver around anchors | |
2 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
none available | |
3 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors |
Seat position 21
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 4-6 |
Force (lbs) | 28 |
Clearance angle (degrees) | 56 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 4-6 |
Force (lbs) | 25 |
Clearance angle (degrees) | 58 |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
Lower anchor A | |
---|---|
No lower latch for this seat position | |
Lower anchor B | |
No lower latch for this seat position | |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 4-6 |
Force (lbs) | 34 |
Clearance angle (degrees) | 61 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 4-6 |
Force (lbs) | 22 |
Clearance angle (degrees) | 54 |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
