Top Safety PickTop Safety Pick criteria

2018 Toyota Corolla

small car / 4-door sedan

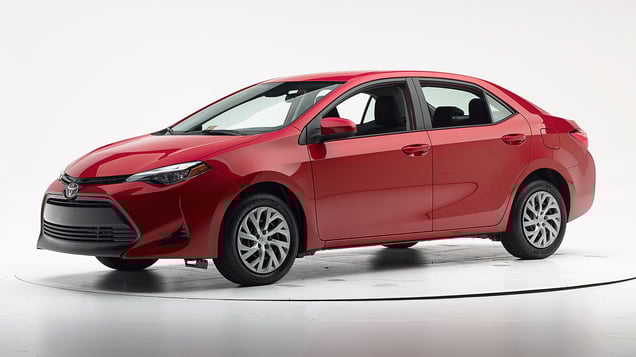

2018 Toyota Corolla 4-door sedan
2017 Toyota Corolla shown

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Standard system
Superior

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Standard lane departure warning & prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2017-19 models

Tested vehicle: 2017 Toyota Corolla LE 4-door

The Toyota Corolla was redesigned for the 2014 model year. Beginning with 2017 models, the front-end structure was modified and the frame around the driver door was stiffened to improve occupant protection in small overlap frontal crashes.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Although intrusion into the driver's space was minimal, forces on the dummy's right lower leg were just high enough to indicate a moderate risk of injury.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1632
Lower occupant compartment
Lower hinge pillar max (cm) 4
Footrest (cm) 13
Left toepan (cm) 7
Brake pedal (cm) 4
Parking brake (cm)
Rocker panel lateral average (cm) 3
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 3
Upper dash (cm) 4
Lower instrument panel (cm) 4

Driver injury measures

Test ID CEN1632
Head
HIC-15 151
Peak gs at hard contact no contact
Neck
Tension (kN) 1.4
Extension bending moment (Nm) 18
Maximum Nij 0.29
Chest maximum compression (mm) 24
Femur (kN)
Left 0.6
Right 2.6
Knee displacement (mm)
Left 1
Right 3
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.54
Right 0.67
Tibia axial force (kN)
Left 1.2
Right 4.1
Foot acceleration (g)
Left 48
Right 83

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2014-19 models

Tested vehicle: 2014 Toyota Corolla 4-door

The Toyota Corolla was redesigned for the 2014 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Toyota.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1308
Footwell intrusion
Footrest (cm) 6
Left (cm) 10
Center (cm) 11
Right (cm) 5
Brake pedal (cm) 4
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) -2
Rearward (cm) -4
A-pillar rearward movement (cm) 2

Driver injury measures

Test ID VTF1308
Head
HIC-15 253
Peak gs at hard contact no contact
Neck
Tension (kN) 1.5
Extension bending moment (Nm) 12
Maximum Nij 0.27
Chest maximum compression (mm) 29
Legs
Femur force - left (kN) 1.6
Femur force - right (kN) 2.8
Knee displacement - left (mm) 1
Knee displacement - right (mm) 2
Maximum tibia index - left 0.45
Maximum tibia index - right 0.98
Tibia axial force - left (kN) 2.3
Tibia axial force - right (kN) 4.4
Foot acceleration (g)
Left 46
Right 56

About the original moderate overlap front test

Side: original test

Rating applies to 2014-19 models

Tested vehicle: 2014 Toyota Corolla 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Toyota Corolla was redesigned for the 2014 model year. Side ratings are assigned by the Institute based on a test conducted by Toyota.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1302
B-pillar to longitudinal centerline of driver's seat (cm) -18.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1302
Head HIC-15 294
Neck
Tension (kN) 0.5
Compression (kN) 0.0
Shoulder
Lateral deflection (mm) 48
Lateral force (kN) 1.5
Torso
Maximum deflection (mm) 31
Average deflection (mm) 25
Maximum deflection rate (m/s) 2.40
Maximum viscous criterion (m/s) 0.42
Pelvis
Iliac force (kN) 1.5
Acetabulum force (kN) 1.9
Combined force (kN) 3.4
Left femur
L-M force (kN) 0.8
L-M moment (Nm) 44
A-P moment (Nm) -111

Passenger injury measures

Test ID VTS1302
Head HIC-15 234
Neck
Tension (kN) 0.2
Compression (kN) 1.1
Shoulder
Lateral deflection (mm) 40
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 33
Average deflection (mm) 26
Maximum deflection rate (m/s) 2.80
Maximum viscous criterion (m/s) 0.46
Pelvis
Iliac force (kN) 0.6
Acetabulum force (kN) 1.1
Combined force (kN) 1.5
Left femur
L-M force (kN) 1.6
L-M moment (Nm) 66
A-P moment (Nm) 238

About the original side crash test

Roof strength

Rating applies to 2014-19 models

Tested vehicle: 2014 Toyota Corolla LE 4-door

Overall evaluation
Curb weight2,834 lbs
Peak force15,228 lbs
Strength-to-weight ratio5.37

About the roof strength test

Head restraints & seats

Seat type: Manual cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seat
Geometry
Backset (mm) 21
Distance below top of head (mm) 16
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 12.8
Head contact time (ms) 61
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 509

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • XLE trim
  • SE trim
  • XSE trim
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was good on the gradual right and gradual left curves and fair on the sharp right and sharp left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test
Trim level(s)
  • XLE trim
  • SE trim
  • XSE trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2017-19 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 82.1 m None
Straightaway left edge 45.4 m None
250m radius right curve, right edge 75.4 m None
250m radius left curve, right edge 43.9 m None
150m radius right curve, right edge 62.3 m None
150m radius left curve, right edge 48.8 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 139.6 m
Straightaway left edge 121.2 m
250m radius right curve, right edge 88.0 m
250m radius left curve, left edge 76.5 m
150m radius right curve, right edge 64.1 m
150m radius left curve, left edge 58.2 m

Trim level(s)

  • L trim
  • LE trim
  • LE Eco trim
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was fair on both right curves and inadequate on both left curves.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • L trim
  • LE trim
  • LE Eco trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2017-19 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 90.6 m None
Straightaway left edge 47.0 m None
250m radius right curve, right edge 62.0 m None
250m radius left curve, left edge 44.2 m None
150m radius right curve, right edge 50.6 m None
150m radius left curve, left edge 43.7 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 145.8 m
Straightaway left edge 141.8 m
250m radius right curve, right edge 62.4 m
250m radius left curve, left edge 64.3 m
150m radius right curve, right edge 50.7 m
150m radius left curve, left edge 50.5 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Standard Pre-Collision System with Pedestrian Detection

Overall evaluation

Applies to 2017-19 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Child seat anchors

Rating applies to 2018-19 models

Overall evaluation
Vehicle trimLE
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimLE
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 8
Clearance angle (degrees) 66
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 24
Clearance angle (degrees) 70
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 13
Clearance angle (degrees) 71
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 14
Clearance angle (degrees) 62
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
