2005 Toyota Highlander
midsize SUV / 4-door SUV
Moderate overlap front: original test
Rating applies to 2001-07 models

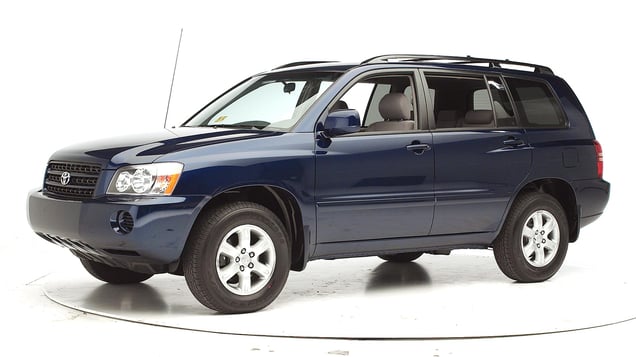

Tested vehicle: 2001 Toyota Highlander 4-door 4wd
The Toyota Highlander was introduced in the 2001 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
Intrusion into the driver footwell area was minimal.
Forces on the right lower leg were high enough to indicate the possibility of injury.
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0117 |
| Footwell intrusion | |
| Footrest (cm) | 6 |
| Left (cm) | 7 |
| Center (cm) | 8 |
| Right (cm) | 8 |
| Brake pedal (cm) | 4 |
| Instrument panel rearward movement | |
| Left (cm) | -1 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | 5 |
| Rearward (cm) | -2 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0117 |
| Head | |
| HIC-15 | 474 |
| Peak gs at hard contact | 83 |
| Neck | |
| Tension (kN) | 1.7 |
| Extension bending moment (Nm) | 39 |
| Maximum Nij | 0.35 |
| Chest maximum compression (mm) | 35 |
| Legs | |
| Femur force - left (kN) | 2.3 |
| Femur force - right (kN) | 2.3 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.34 |
| Maximum tibia index - right | 0.97 |
| Tibia axial force - left (kN) | 1.8 |
| Tibia axial force - right (kN) | 2.2 |
| Foot acceleration (g) | |
| Left | 60 |
| Right | 83 |
Head restraints & seats
Seat type: Seats with fixed head restraint tilt and without adjustable lumbar
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Seats with fixed head restraint tilt and without adjustable lumbar |
|---|---|
| Geometry | |
| Backset (mm) | 58 |
| Distance below top of head (mm) | 70 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 11.0 |
| Head contact time (ms) | 93 |
| Force rating | 2 |
| Neck forces | |
| Max neck shear force (N) | 12 |
| Max neck tension (N) | 840 |
Seat type: Seats with head restraint tilt and with adjustable lumbar
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Seats with head restraint tilt and with adjustable lumbar |
|---|---|
| Geometry | |
| Backset (mm) | 42 |
| Distance below top of head (mm) | 68 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 12.5 |
| Head contact time (ms) | 100 |
| Force rating | 3 |
| Neck forces | |
| Max neck shear force (N) | 47 |
| Max neck tension (N) | 1,180 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
