2019 Toyota Tundra

large pickup / Crew cab pickup

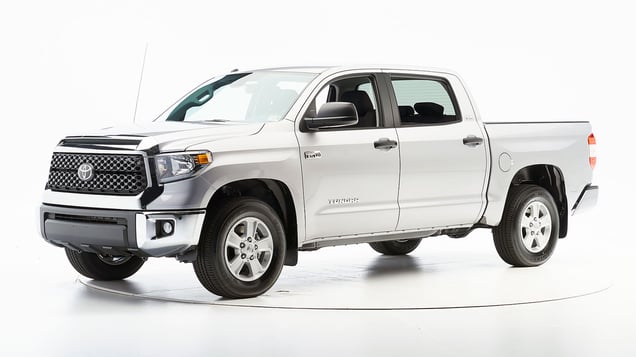

2019 Toyota Tundra Crew cab pickup

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Standard system
Superior

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Standard lane departure warning

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2014-21 models

Tested vehicle: 2016 Toyota Tundra SR5 CrewMax 2wd

The Toyota Tundra CrewMax was redesigned for the 2007 model year. Beginning with 2010 models, the driver and passenger frontal airbags and front seat belts were modified and knee airbags for the driver and front passenger were added. Beginning with 2014 models, the side curtain airbags were lengthened and reprogrammed to deploy in small overlap and moderate overlap frontal crashes to improve occupant protection.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Intrusion of the door hinge pillar, toepan, and instrument panel contributed to a high risk of injury to the left lower leg, a significant risk to the left foot, and a moderate risk to the right lower leg.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1606
Lower occupant compartment
Lower hinge pillar max (cm) 26
Footrest (cm) 36
Left toepan (cm) 30
Brake pedal (cm) 26
Parking brake (cm) 25
Rocker panel lateral average (cm) 6
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 22
Upper dash (cm) 13
Lower instrument panel (cm) 15

Driver injury measures

Test ID CEN1606
Head
HIC-15 103
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 6
Maximum Nij 0.17
Chest maximum compression (mm) 22
Femur (kN)
Left 3.8
Right 2.7
Knee displacement (mm)
Left 5
Right 5
Knee-thigh-hip injury risk (%)
Left 1
Right 0
Maximum tibia index
Left 1.39
Right 0.55
Tibia axial force (kN)
Left 7.6
Right 4.1
Foot acceleration (g)
Left 242
Right 119

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2014-21 models

Tested vehicle: 2019 Toyota Tundra SR5 CrewMax 2wd

The Toyota Tundra CrewMax was redesigned for the 2007 model year. Beginning with 2010 models, the driver and passenger frontal airbags and front seat belts were modified and knee airbags for the driver and front passenger were added. Beginning with 2014 models, the side curtain airbags were lengthened and reprogrammed to deploy in small overlap and moderate overlap frontal crashes to improve occupant protection.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
The dummy’s movement was reasonably well controlled. The dummy’s head loaded the frontal airbag, which stayed in front of the dummy until rebound. The side curtain airbag deployed and has sufficient forward coverage to protect the head from contact with typical side structure and outside objects. The side torso airbag also deployed. However, the A-pillar intruded into the passenger space to the extent that the dummy's head hit the attached grab handle during the crash.
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the passenger-side small overlap frontal crash test.

The dummy's position in relation to the door frame and dashboard after the crash test indicates that the passenger's survival space was not maintained well.

The frontal and side curtain airbags worked reasonably well together, but smeared pink and red greasepaint shows where the dummy's head hit the intruding A-pillar grab handle.

Extensive intrusion of the dashboard, toepan, and door hinge pillar contributed to a likely risk of injury to the right lower leg and a significant risk to the right hip.

Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID CEP1823
Lower occupant compartment
Lower hinge pillar max (cm) 32
Footrest (cm) 37
Right toepan (cm) 29
Center toepan (cm) 21
Rocker panel lateral average (cm) 8
Upper occupant compartment
Center dash (cm) 16
Upper hinge pillar max (cm) 28
Upper dash (cm) 23
Right lower dash (cm) 21

Passenger injury measures

Test ID CEP1823
Head
HIC-15 69
Peak gs at hard contact 33
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 10
Maximum Nij 0.30
Chest maximum compression (mm) 23
Femur (kN)
Left 2.1
Right 6.2
Knee displacement (mm)
Left 5
Right 6
Knee-thigh-hip injury risk (%)
Left 0
Right 20
Maximum tibia index
Left 0.49
Right 1.28
Tibia axial force (kN)
Left 2.8
Right 5.2
Foot acceleration (g)
Left 61
Right 60

Driver injury measures

Test ID CEP1823
Head
HIC-15 63
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 9
Maximum Nij 0.17
Chest maximum compression (mm) 30
Femur (kN)
Left 0.4
Right 0.2
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.20
Right 0.38
Tibia axial force (kN)
Left 0.4
Right 0.4
Foot acceleration (g)
Left 34
Right 53

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2014-21 models

Tested vehicle: 2016 Toyota Tundra SR5 CrewMax 2wd

The Toyota Tundra CrewMax was redesigned for the 2007 model year. Beginning with 2010 models, the driver and passenger frontal airbags and front seat belts were modified and knee airbags for the driver and front passenger were added. Beginning with 2014 models, the side curtain airbags were lengthened and reprogrammed to deploy in small overlap and moderate overlap frontal crashes to improve occupant protection.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the moderate overlap frontal crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.

Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag during rebound.

Forces on the right foot were sufficiently high to indicate the possibility of injuries.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF1602
Footwell intrusion
Footrest (cm) 11
Left (cm) 10
Center (cm) 9
Right (cm) 12
Brake pedal (cm) 6
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) -8
Rearward (cm) 1
A-pillar rearward movement (cm) 1

Driver injury measures

Test ID CEF1602
Head
HIC-15 210
Peak gs at hard contact no contact
Neck
Tension (kN) 1.5
Extension bending moment (Nm) 9
Maximum Nij 0.27
Chest maximum compression (mm) 26
Legs
Femur force - left (kN) 1.7
Femur force - right (kN) 1.2
Knee displacement - left (mm) 2
Knee displacement - right (mm) 2
Maximum tibia index - left 0.63
Maximum tibia index - right 0.63
Tibia axial force - left (kN) 2.1
Tibia axial force - right (kN) 3.9
Foot acceleration (g)
Left 84
Right 218

About the original moderate overlap front test

Side: original test

Rating applies to 2014-21 models

Tested vehicle: 2016 Toyota Tundra SR5 CrewMax 2wd

The Toyota Tundra CrewMax was redesigned for the 2007 model year. Beginning with 2014 models, the side curtain and side torso airbags as well as the front seat structure were modified to improve occupant protection in side impact crashes.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES1606
B-pillar to longitudinal centerline of driver's seat (cm) -19.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES1606
Head HIC-15 64
Neck
Tension (kN) 0.5
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 27
Lateral force (kN) 1.1
Torso
Maximum deflection (mm) 22
Average deflection (mm) 21
Maximum deflection rate (m/s) 2.05
Maximum viscous criterion (m/s) 0.22
Pelvis
Iliac force (kN) 0.9
Acetabulum force (kN) 1.1
Combined force (kN) 2.0
Left femur
L-M force (kN) 0.6
L-M moment (Nm) 86
A-P moment (Nm) -12

Passenger injury measures

Test ID CES1606
Head HIC-15 68
Neck
Tension (kN) 0.1
Compression (kN) 0.7
Shoulder
Lateral deflection (mm) 15
Lateral force (kN) 0.8
Torso
Maximum deflection (mm) 16
Average deflection (mm) 9
Maximum deflection rate (m/s) 2.28
Maximum viscous criterion (m/s) 0.12
Pelvis
Iliac force (kN) 0.1
Acetabulum force (kN) 2.0
Combined force (kN) 2.0
Left femur
L-M force (kN) 0.3
L-M moment (Nm) 35
A-P moment (Nm) 21

About the original side crash test

Roof strength

Rating applies to 2007-21 models

Tested vehicle: 2016 Toyota Tundra SR5 CrewMax 2wd

Overall evaluation
Curb weight5,432 lbs
Peak force21,384 lbs
Strength-to-weight ratio3.94

About the roof strength test

Head restraints & seats

Seat type: Power cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power cloth seat
Geometry
Backset (mm) 30
Distance below top of head (mm) 26
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 11.3
Head contact time (ms) 58
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 410

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • SR trim
  • SR5 trim
Low-beam headlight typeHalogen reflector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Some glare

Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was inadequate in all 4 tests.

The low beams created some glare.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • SR trim
  • SR5 trim
Low-beam headlight type Halogen reflector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2018-21 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 72.6 m None
Straightaway left edge 49.0 m None
250m radius right curve, right edge 47.2 m None
250m radius left curve, left edge 44.9 m 8.0%
150m radius right curve, right edge 39.9 m None
150m radius left curve, left edge 39.3 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 146.5 m
Straightaway left edge 127.2 m
250m radius right curve, right edge 52.7 m
250m radius left curve, left edge 56.6 m
150m radius right curve, right edge 40.9 m
150m radius left curve, left edge 44.6 m

Trim level(s)

  • SR5 trim equipped with TRD Sport package
  • SR5 trim equipped with TRD Off-road package
  • Limited trim
  • Platinum trim
  • 1794 Edition trim
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • SR5 trim equipped with TRD Sport package
  • SR5 trim equipped with TRD Off-road package
  • Limited trim
  • Platinum trim
  • 1794 Edition trim
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2018-21 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 70.3 m None
Straightaway left edge 37.9 m None
250m radius right curve, right edge 45.2 m None
250m radius left curve, left edge 39.7 m None
150m radius right curve, right edge 42.4 m None
150m radius left curve, left edge 38.8 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 155.2 m
Straightaway left edge 147.3 m
250m radius right curve, right edge 59.1 m
250m radius left curve, left edge 60.2 m
150m radius right curve, right edge 49.5 m
150m radius left curve, left edge 46.8 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Standard Pre-Collision System with Pedestrian Detection

Overall evaluation

Applies to 2018-21 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Child seat anchors

Rating applies to 2016-21 models built after April 2016

Overall evaluation
Vehicle trimSR5 CrewMax
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimSR5 CrewMax
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 11
Clearance angle (degrees) 80
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 15
Clearance angle (degrees) 70
Tether anchor
Location Back wall
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Back wall
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 8
Clearance angle (degrees) 82
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 10
Clearance angle (degrees) 81
Tether anchor
Location Back wall
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
