Moderate overlap front: original test
Rating applies to 2007-09 models

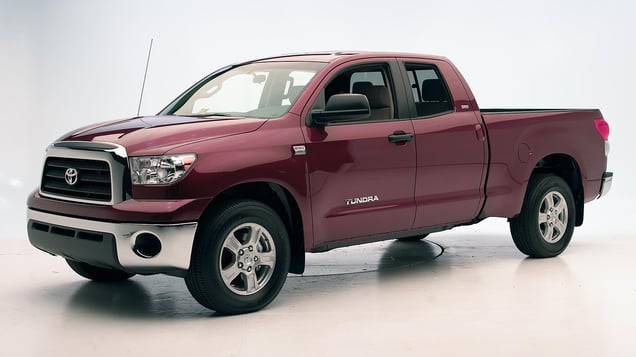

Tested vehicle: 2007 Toyota Tundra SR5 Double Cab 2wd
The Toyota Tundra Double Cab was redesigned for the 2007 model year. Two moderate overlap frontal tests of a 2007 Tundra were conducted, one by the Institute of a 2wd Double Cab and the other by Toyota of a 4wd Double Cab. The overall rating of Good is based on review of both tests, which independently result in overall ratings of Good. The ratings, photos, and videos from the Institute’s test are shown because the 2wd Double Cab is similar to the configuration of other pickups tested previously.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Action shot taken during the Institute's moderate overlap frontal crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well (Institute test vehicle shown).
A high head acceleration occurred when the dummy's head hit the steering wheel through the airbag in the Institute's test.
Forces on the lower left leg were just high enough to indicate the possibility of injuries in the Institute's test (shown).
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement | |
|---|---|---|
| Test ID | VTF0703 | CEF0712 |
| Footwell intrusion | ||
| Footrest (cm) | 9 | 7 |
| Left (cm) | 10 | 6 |
| Center (cm) | 13 | 5 |
| Right (cm) | 16 | 6 |
| Brake pedal (cm) | 4 | 8 |
| Instrument panel rearward movement | ||
| Left (cm) | 2 | 0 |
| Right (cm) | 3 | -1 |
| Steering column movement | ||
| Upward (cm) | -7 | -5 |
| Rearward (cm) | -3 | -2 |
| A-pillar rearward movement (cm) | 1 | 0 |
Driver injury measures
| Evaluation criteria | Measurement | |
|---|---|---|
| Test ID | VTF0703 | CEF0712 |
| Head | ||
| HIC-15 | 142 | 327 |
| Peak gs at hard contact | 42 | 92 |
| Neck | ||
| Tension (kN) | 1.0 | 1.4 |
| Extension bending moment (Nm) | 19 | 42 |
| Maximum Nij | 0.22 | 0.44 |
| Chest maximum compression (mm) | 35 | 31 |
| Legs | ||
| Femur force - left (kN) | 4.2 | 3.5 |
| Femur force - right (kN) | 1.8 | 0.7 |
| Knee displacement - left (mm) | 6 | 11 |
| Knee displacement - right (mm) | 0 | 1 |
| Maximum tibia index - left | 0.43 | 0.89 |
| Maximum tibia index - right | 0.44 | 0.70 |
| Tibia axial force - left (kN) | 1.8 | 2.3 |
| Tibia axial force - right (kN) | 1.9 | 2.3 |
| Foot acceleration (g) | ||
| Left | 93 | 121 |
| Right | 166 | 111 |
Side: original test
Rating applies to 2007-13 models
Tested vehicle: 2007 Toyota Tundra SR5 Double Cab 2wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Toyota Tundra Double Cab was redesigned for the 2007 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0729 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -18.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0729 |
| Head HIC-15 | 52 |
| Neck | |
| Tension (kN) | 0.5 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 28 |
| Lateral force (kN) | 1.2 |
| Torso | |
| Maximum deflection (mm) | 31 |
| Average deflection (mm) | 25 |
| Maximum deflection rate (m/s) | 4.52 |
| Maximum viscous criterion (m/s) | 0.58 |
| Pelvis | |
| Iliac force (kN) | 0.6 |
| Acetabulum force (kN) | 3.1 |
| Combined force (kN) | 3.6 |
| Left femur | |
| L-M force (kN) | 0.9 |
| L-M moment (Nm) | 155 |
| A-P moment (Nm) | 40 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0729 |
| Head HIC-15 | 99 |
| Neck | |
| Tension (kN) | 0.1 |
| Compression (kN) | 0.8 |
| Shoulder | |
| Lateral deflection (mm) | 35 |
| Lateral force (kN) | 1.3 |
| Torso | |
| Maximum deflection (mm) | 35 |
| Average deflection (mm) | 25 |
| Maximum deflection rate (m/s) | 3.47 |
| Maximum viscous criterion (m/s) | 0.52 |
| Pelvis | |
| Iliac force (kN) | 0.5 |
| Acetabulum force (kN) | 3.2 |
| Combined force (kN) | 3.3 |
| Left femur | |
| L-M force (kN) | 0.5 |
| L-M moment (Nm) | 58 |
| A-P moment (Nm) | -24 |
Roof strength
Rating applies to 2007-21 models
Tested vehicle: 2011 Toyota Tundra Double Cab 2wd
| Overall evaluation | |
|---|---|
| Curb weight | 5,142 lbs |
| Peak force | 23,069 lbs |
| Strength-to-weight ratio | 4.49 |
Head restraints & seats
Seat type: Manual cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 32 |
| Distance below top of head (mm) | 46 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 8.7 |
| Head contact time (ms) | 58 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 10 |
| Max neck tension (N) | 321 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
