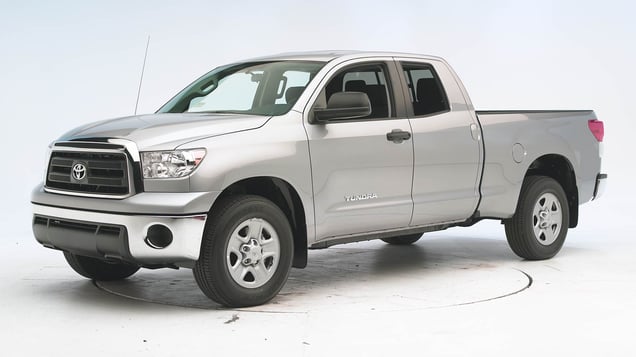

2014 Toyota Tundra
large pickup / Extended cab pickup
Small overlap front: driver-side
Rating applies to 2014-21 models
Tested vehicle: 2015 Toyota Tundra SR5 Double Cab 2wd
The Toyota Tundra Double Cab was redesigned for the 2007 model year. Beginning with 2010 models, the driver and passenger frontal airbags and front seat belts were modified and knee airbags for the driver and front passenger were added. Beginning with 2014 models, the side curtain airbags were lengthened and reprogrammed to deploy in small overlap and moderate overlap frontal crashes to improve occupant protection.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Action shot taken during the driver-side small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.
Intrusion of the footrest and toepan contributed to a high risk of injury to the left lower leg, a significant risk to the right lower leg, and a moderate risk to the left foot.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1545 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 15 |
| Footrest (cm) | 26 |
| Left toepan (cm) | 25 |
| Brake pedal (cm) | 17 |
| Parking brake (cm) | 18 |
| Rocker panel lateral average (cm) | 3 |
| Upper occupant compartment | |
| Steering column | 1 |
| Upper hinge pillar max (cm) | 12 |
| Upper dash (cm) | 10 |
| Lower instrument panel (cm) | 11 |
Driver injury measures
| Test ID | CEN1545 |
|---|---|
| Head | |
| HIC-15 | 97 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 5 |
| Maximum Nij | 0.17 |
| Chest maximum compression (mm) | 25 |
| Femur (kN) | |
| Left | 1.9 |
| Right | 3.4 |
| Knee displacement (mm) | |
| Left | 4 |
| Right | 4 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 1 |
| Maximum tibia index | |
| Left | 1.40 |
| Right | 0.80 |
| Tibia axial force (kN) | |
| Left | 5.8 |
| Right | 6.7 |
| Foot acceleration (g) | |
| Left | 176 |
| Right | 113 |
Moderate overlap front: original test
Rating applies to 2014-21 models
Tested vehicle: 2014 Toyota Tundra SR5 Double Cab 2wd
The Toyota Tundra Double Cab was redesigned for the 2007 model year. Beginning with 2010 models, the driver and passenger frontal airbags and front seat belts were modified and knee airbags for the driver and front passenger were added. Beginning with 2014 models, the side curtain airbags were lengthened and reprogrammed to deploy in small overlap and moderate overlap frontal crashes to improve occupant protection.
Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Toyota. Because there were no structural changes, the structure rating of the current model is based on Toyota's test of a 2014 model and three earlier tests of 2007 and 2010 Tundra models.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF0703 | CEF0712 | VTF0907 | VTF1317 |
|---|---|---|---|---|
| Footwell intrusion | ||||
| Footrest (cm) | 9 | 7 | 7 | 10 |
| Left (cm) | 10 | 6 | 6 | 9 |
| Center (cm) | 13 | 5 | 8 | 7 |
| Right (cm) | 16 | 6 | 10 | 10 |
| Brake pedal (cm) | 4 | 8 | 5 | 8 |
| Instrument panel rearward movement | ||||
| Left (cm) | 2 | 0 | 0 | 1 |
| Right (cm) | 3 | -1 | 2 | 2 |
| Steering column movement | ||||
| Upward (cm) | -7 | -5 | -10 | -15 |
| Rearward (cm) | -3 | -2 | 4 | -5 |
| A-pillar rearward movement (cm) | 1 | 0 | 2 | 1 |
Driver injury measures
| Test ID | VTF1317 | |||
|---|---|---|---|---|
| Head | ||||
| HIC-15 | 232 | |||
| Peak gs at hard contact | no contact | |||
| Neck | ||||
| Tension (kN) | 1.5 | |||
| Extension bending moment (Nm) | 10 | |||
| Maximum Nij | 0.24 | |||
| Chest maximum compression (mm) | 25 | |||
| Legs | ||||
| Femur force - left (kN) | 1.5 | |||
| Femur force - right (kN) | 1.4 | |||
| Knee displacement - left (mm) | 1 | |||
| Knee displacement - right (mm) | 0 | |||
| Maximum tibia index - left | 0.46 | |||
| Maximum tibia index - right | 0.53 | |||
| Tibia axial force - left (kN) | 2.5 | |||
| Tibia axial force - right (kN) | 2.6 | |||
| Foot acceleration (g) | ||||
| Left | 66 | |||
| Right | 161 | |||
Side: original test
Rating applies to 2014-21 models
Tested vehicle: 2014 Toyota Tundra SR5 Double Cab 2wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Toyota Tundra Double Cab was redesigned for the 2007 model year. Beginning with 2014 models, the side curtain and side torso airbags as well as the front seat structure were modified to improve occupant protection in side impact crashes.
Two tests of the Tundra were conducted, one of a 2007 model by the Institute and the other a 2014 model by Toyota. These vehicles are rated separately, except that the structure ratings for both vehicles are based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | CES0729 | VTS1312 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -18.5 | -16.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Test ID | VTS1312 |
|---|---|
| Head HIC-15 | 124 |
| Neck | |
| Tension (kN) | 0.6 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 28 |
| Lateral force (kN) | 1.0 |
| Torso | |
| Maximum deflection (mm) | 21 |
| Average deflection (mm) | 20 |
| Maximum deflection rate (m/s) | 2.34 |
| Maximum viscous criterion (m/s) | 0.18 |
| Pelvis | |
| Iliac force (kN) | 1.1 |
| Acetabulum force (kN) | 2.0 |
| Combined force (kN) | 2.9 |
| Left femur | |
| L-M force (kN) | 0.9 |
| L-M moment (Nm) | 102 |
| A-P moment (Nm) | -21 |
Passenger injury measures
| Test ID | VTS1312 |
|---|---|
| Head HIC-15 | 104 |
| Neck | |
| Tension (kN) | 0.1 |
| Compression (kN) | 0.7 |
| Shoulder | |
| Lateral deflection (mm) | 28 |
| Lateral force (kN) | 1.2 |
| Torso | |
| Maximum deflection (mm) | 21 |
| Average deflection (mm) | 15 |
| Maximum deflection rate (m/s) | 2.44 |
| Maximum viscous criterion (m/s) | 0.19 |
| Pelvis | |
| Iliac force (kN) | 0.3 |
| Acetabulum force (kN) | 3.0 |
| Combined force (kN) | 3.0 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 73 |
| A-P moment (Nm) | -33 |
Roof strength
Rating applies to 2007-21 models
Tested vehicle: 2011 Toyota Tundra Double Cab 2wd
| Overall evaluation | |
|---|---|
| Curb weight | 5,142 lbs |
| Peak force | 23,069 lbs |
| Strength-to-weight ratio | 4.49 |
Head restraints & seats
Seat type: Power cloth seat
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power cloth seat |
|---|---|
| Geometry | |
| Backset (mm) | 30 |
| Distance below top of head (mm) | 26 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 11.3 |
| Head contact time (ms) | 58 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 410 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
