Small overlap front: driver-side
Rating applies to 2012-18 models

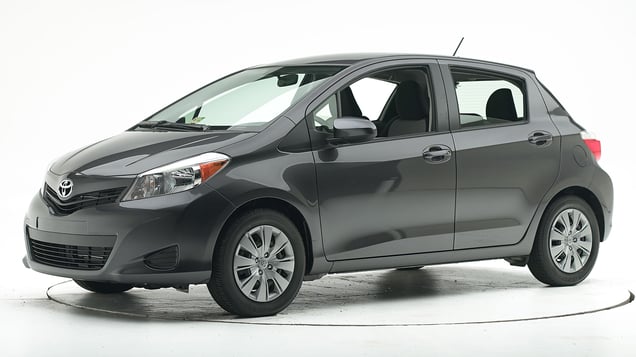

Tested vehicle: 2013 Toyota Yaris L 4-door hatchback
The Toyota Yaris hatchback was redesigned for the 2012 model year. The Yaris 4-door sedan was not redesigned for 2012, its final model year. Therefore the listed small overlap frontal ratings apply only to the 4-door hatchback.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics The dummy’s head barely contacted the frontal airbag before sliding off the left side as the steering column moved to the right. Additionally, the seat belt allowed excessive forward excursion of the dummy’s head and torso, contributing to the head hitting the instrument panel. The side curtain airbag did not deploy. During rebound, the head moved outside the open side window, partially due to the nondeployment and leaving the head vulnerable to contact with side structure and outside objects. |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.
During the crash, the dummy's head and torso barely contacted the airbag before sliding off to the left as the steering column moved to the right. The seat belt allowed the dummy to move too far forward, as is evident from the gap between the seat back and the dummy's torso, and the head hit the instrument panel.
Door hinge pillar and instrument panel intrusion contributed to a significant risk of injury to the left lower leg.
Measures of occupant compartment intrusion on driver side
Test ID | CEN1331 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 27 |
Footrest (cm) | 13 |
Left toepan (cm) | 6 |
Brake pedal (cm) | 6 |
Parking brake (cm) | |
Rocker panel lateral average (cm) | 4 |
Upper occupant compartment | |
Steering column | 8 |
Upper hinge pillar max (cm) | 17 |
Upper dash (cm) | 17 |
Lower instrument panel (cm) | 16 |
Driver injury measures
Test ID | CEN1331 |
---|---|
Head | |
HIC-15 | 127 |
Peak gs at hard contact | 62 |
Neck | |
Tension (kN) | 1.9 |
Extension bending moment (Nm) | 59 |
Maximum Nij | 0.50 |
Chest maximum compression (mm) | 22 |
Femur (kN) | |
Left | 1.9 |
Right | 0.0 |
Knee displacement (mm) | |
Left | 6 |
Right | 1 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 1.16 |
Right | 0.59 |
Tibia axial force (kN) | |
Left | 1.4 |
Right | 0.1 |
Foot acceleration (g) | |
Left | 105 |
Right | 71 |
Moderate overlap front: original test
Rating applies to 2012-18 models
Tested vehicle: 2012 Toyota Yaris L 4-door hatchback
The Toyota Yaris hatchback was redesigned for the 2012 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Toyota. The Yaris 4-door sedan was not redesigned for 2012, its final model year. Therefore the listed ratings apply only to the 4-door hatchback.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF1111 |
---|---|
Footwell intrusion | |
Footrest (cm) | 3 |
Left (cm) | 9 |
Center (cm) | 6 |
Right (cm) | 4 |
Brake pedal (cm) | 6 |
Instrument panel rearward movement | |
Left (cm) | 2 |
Right (cm) | 1 |
Steering column movement | |
Upward (cm) | -2 |
Rearward (cm) | -5 |
A-pillar rearward movement (cm) | 2 |
Driver injury measures
Test ID | VTF1111 |
---|---|
Head | |
HIC-15 | 258 |
Peak gs at hard contact | 43 |
Neck | |
Tension (kN) | 2.1 |
Extension bending moment (Nm) | 21 |
Maximum Nij | 0.33 |
Chest maximum compression (mm) | 26 |
Legs | |
Femur force - left (kN) | 1.1 |
Femur force - right (kN) | 1.4 |
Knee displacement - left (mm) | 1 |
Knee displacement - right (mm) | 2 |
Maximum tibia index - left | 0.45 |
Maximum tibia index - right | 0.42 |
Tibia axial force - left (kN) | 2.4 |
Tibia axial force - right (kN) | 2.5 |
Foot acceleration (g) | |
Left | 89 |
Right | 115 |
Side: original test
Rating applies to 2012-18 models
Tested vehicle: 2012 Toyota Yaris L 4-door hatchback with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Toyota Yaris hatchback was redesigned for the 2012 model year. Side ratings are assigned by the Institute based on a test conducted by Toyota. The Yaris 4-door sedan was not redesigned for 2012, its final model year. Therefore the listed ratings apply only to the 4-door hatchback.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS1110 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -9.5 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1110 |
---|---|
Head HIC-15 | 426 |
Neck | |
Tension (kN) | 1.1 |
Compression (kN) | 0.6 |
Shoulder | |
Lateral deflection (mm) | 43 |
Lateral force (kN) | 2.1 |
Torso | |
Maximum deflection (mm) | 32 |
Average deflection (mm) | 27 |
Maximum deflection rate (m/s) | 3.70 |
Maximum viscous criterion (m/s) | 0.56 |
Pelvis | |
Iliac force (kN) | 2.6 |
Acetabulum force (kN) | 2.3 |
Combined force (kN) | 4.8 |
Left femur | |
L-M force (kN) | 1.6 |
L-M moment (Nm) | 61 |
A-P moment (Nm) | 181 |
Passenger injury measures
Test ID | VTS1110 |
---|---|
Head HIC-15 | 201 |
Neck | |
Tension (kN) | 0.2 |
Compression (kN) | 0.7 |
Shoulder | |
Lateral deflection (mm) | 51 |
Lateral force (kN) | 2.9 |
Torso | |
Maximum deflection (mm) | 38 |
Average deflection (mm) | 27 |
Maximum deflection rate (m/s) | 4.60 |
Maximum viscous criterion (m/s) | 0.79 |
Pelvis | |
Iliac force (kN) | 0.3 |
Acetabulum force (kN) | 1.1 |
Combined force (kN) | 1.2 |
Left femur | |
L-M force (kN) | 1.9 |
L-M moment (Nm) | 37 |
A-P moment (Nm) | 169 |
Roof strength
Rating applies to 2012-18 models
Tested vehicle: 2012 Toyota Yaris LE 4-door hatchback
Overall evaluation | |
---|---|
Curb weight | 2,387 lbs |
Peak force | 10,663 lbs |
Strength-to-weight ratio | 4.47 |
Head restraints & seats
Seat type: Manual cloth seats
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Manual cloth seats |
---|---|
Geometry | |
Backset (mm) | 25 |
Distance below top of head (mm) | 28 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 14.0 |
Head contact time (ms) | 63 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 0 |
Max neck tension (N) | 494 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
