2024 Acura ZDX

midsize luxury SUV / 4-door SUV

Fully electric

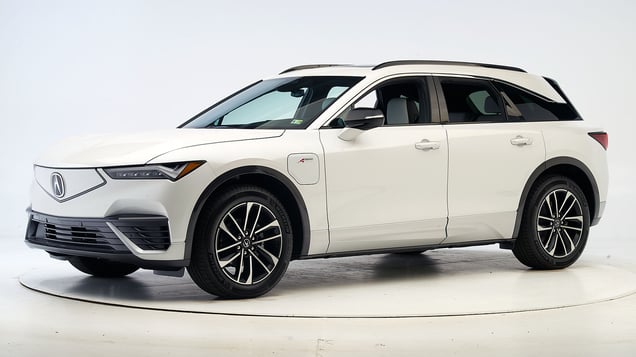

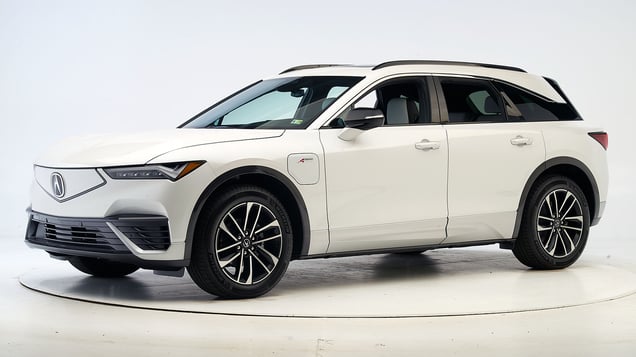

2024 Acura ZDX 4-door SUV

Crashworthiness

Rating overview
Evaluation criteriaRating
Small overlap front
A
Moderate overlap front: updated test
G
Side: updated test
G

Crash avoidance & mitigation

Evaluation criteriaRating
Headlights (varies by trim/option)
GP
Front crash prevention: vehicle-to-vehicle 2.0
Standard system
G
Front crash prevention: pedestrian
Standard system
A

Seat belts & child restraints

Evaluation criteriaRating
Seat belt reminders
G
LATCH ease of use
G

Key

  • Good
  • Acceptable
  • Marginal
  • Poor

Small overlap front

The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.

Driver-side

  • Rating applies to 2024-25 models

Tested vehicle: 2024 Acura ZDX A-SPEC 4-door 4wd

The Acura ZDX, an all-electric SUV, was introduced in the 2024 model year.

Evaluation criteriaRating
Overall driver-side evaluation
G
Structure and safety cage
G
Driver injury measures
Head/neck
G
Chest
G
Hip/thigh
G
Lower leg/foot
G
Driver restraints and dummy kinematics
G

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteriaMeasurement
Test ID CEN2406
Lower occupant compartment
Lower hinge pillar max (cm) 4
Footrest (cm) 4
Left toepan (cm) 3
Brake pedal (cm) 2
Parking brake (cm)
Rocker panel lateral average (cm) 0
Upper occupant compartment
Steering column 2
Upper hinge pillar max (cm) 2
Upper dash (cm) 2
Lower instrument panel (cm) 2

Driver injury measures

Evaluation criteriaMeasurement
Test ID CEN2406
Head
HIC-15 84
Peak gs at hard contact no contact
Neck
Tension (kN) 0.4
Extension bending moment (Nm) 12
Maximum Nij 0.11
Chest maximum compression (mm) 16
Femur (kN)
Left 0.1
Right 0.0
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.45
Right 0.34
Tibia axial force (kN)
Left 1.5
Right 1.1
Foot acceleration (g)
Left 50
Right 59

Passenger-side

  • Rating applies to 2024-25 models

Tested vehicle: 2024 Acura ZDX A-SPEC 4-door 4wd

The Acura ZDX, an all-electric SUV, was introduced in the 2024 model year.

Evaluation criteriaRating
Overall passenger-side evaluation
A
Structure and safety cage
G
Passenger injury measures
Head/neck
G
Chest
G
Hip/thigh
G
Lower leg/foot
G
Passenger restraints and dummy kinematics
The dummy’s head barely contacted the right side of the frontal airbag before moving into the gap between the frontal and side curtain airbags, leaving the head vulnerable to contact with forward structure. The inflated side curtain airbag has sufficient forward coverage to protect the head from contact with side structure and outside objects.
M
Driver injury measures
Head/neck
G
Chest
G
Hip/thigh
G
Lower leg/foot
G
Driver restraints and dummy kinematics
G

Action shot taken during the passenger-side small overlap frontal crash test.

The dummy's position in relation to the door frame and dashboard after the crash test indicates that the passenger’s survival space was maintained well.

The dummy's head barely contacted the frontal airbag before moving into the gap in coverage between the frontal and side curtain airbags.

The passenger’s space was maintained reasonably well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Evaluation criteriaMeasurement
Test ID CEP2404
Lower occupant compartment
Lower hinge pillar max (cm) 4
Footrest (cm) 3
Right toepan (cm) 2
Center toepan (cm) 1
Rocker panel lateral average (cm) 0
Upper occupant compartment
Center dash (cm) 1
Upper hinge pillar max (cm) 2
Upper dash (cm) 2
Right lower dash (cm) 2

Passenger injury measures

Evaluation criteriaMeasurement
Test ID CEP2404
Head
HIC-15 55
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 20
Maximum Nij 0.24
Chest maximum compression (mm) 22
Femur (kN)
Left 0.2
Right 0.2
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.34
Right 0.38
Tibia axial force (kN)
Left 1.5
Right 1.2
Foot acceleration (g)
Left 22
Right 25

Driver injury measures

Evaluation criteriaMeasurement
Test ID CEP2404
Head
HIC-15 35
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 12
Maximum Nij 0.16
Chest maximum compression (mm) 20
Femur (kN)
Left 0.1
Right 4.5
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 2
Maximum tibia index
Left 0.31
Right 0.20
Tibia axial force (kN)
Left 0.2
Right 0.5
Foot acceleration (g)
Left 39
Right 30

About the small overlap front test

Moderate overlap front: updated test

Rating applies to 2024-25 models

Tested vehicle: 2024 Acura ZDX A-SPEC 4-door 4wd

The Acura ZDX, an all-electric SUV, was introduced in the 2024 model year.

Evaluation criteriaRating
Overall evaluation
G
Structure and safety cage
G
Driver injury measures
Head/neck
G
Chest
G
Thigh/hip
G
Leg/foot
G
Driver restraints and dummy kinematics
G
Rear passenger injury measures
Head/neck
G
Chest
G
Thigh
G
Rear passenger restraints and dummy kinematics
G

View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

The rear passenger dummy's head remained a safe distance from the front seatback.

Rear passenger dummy injury values indicate a low risk of injury to the head or neck and chest. During the crash, the shoulder belt remained in an ideal position on the dummy’s chest.

The rear passenger dummy's lap belt remained in the ideal position on the pelvis.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteriaMeasurement
Test ID CEF2440
Footwell intrusion
Footrest (cm) 1
Left (cm) 2
Center (cm) 3
Right (cm) 2
Brake pedal (cm) 8
Instrument panel rearward movement
Left (cm) 1
Right (cm) 1
Steering column movement
Upward (cm) -1
Rearward (cm) -6
A-pillar rearward movement (cm) 0

Driver injury measures

Evaluation criteriaMeasurement
Test ID CEF2440
Head
HIC-15 108
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 13
Maximum Nij 0.19
Chest maximum compression (mm) 23
Femur (kN)
Left 0.2
Right 0.5
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.19
Right 0.21
Tibia axial force (kN)
Left 1.0
Right 1.7
Foot acceleration (g)
Left 44
Right 48

Rear passenger injury measures

Test ID CEF2440
Head
HIC-15 for head contact during forward excursion
no contact
Peak gs at hard contact no contact
Neck
Tension (kN) 1.6
Compression (kN) 0.1
Maximum Nij for head contact during forward excursion
no contact
Chest
Chest index 30
Shoulder belt tension (kN) 3.7
Thigh (kN)
Left femur compression 0.1
Right femur compression 0.1

About the moderate overlap front test

February 2024 adjustment to rating criteria

Side: updated test

Rating applies to 2024-25 models

Tested vehicle: 2024 Acura ZDX A-SPEC 4-door 4wd

The Acura ZDX, an all-electric SUV, was introduced in the 2024 model year.

Evaluation criteriaRating
Overall evaluation
G
Structure and safety cage
G
Driver injury measures
Head/neck
G
Torso
A
Pelvis
G
Driver head protection
G
Rear passenger injury measures
Head/neck
G
Torso
G
Pelvis
G
Rear passenger head protection
G

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteria Measurement
Test ID CES2407
B-pillar to longitudinal centerline of driver's seat (cm) -28.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Evaluation criteria Measurement
Test ID CES2407
Head
HIC-15 34
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Compression (kN) 0.0
Shoulder
Lateral deflection (mm) 29
Lateral force (kN) 1.0
Torso
Maximum deflection (mm) 32
Average deflection (mm) 29
Maximum deflection rate (m/s) 2.73
Maximum viscous criterion (m/s) 0.41
Pelvis
Combined force (kN) 2.7

Passenger injury measures

Evaluation criteria Measurement
Test ID CES2407
Head
HIC-15 85
Peak gs at hard contact no contact
Neck
Tension (kN) 0.2
Compression (kN) 0.5
Shoulder
Lateral deflection (mm) 13
Lateral force (kN) 0.6
Torso
Maximum deflection (mm) 18
Average deflection (mm) 9
Maximum deflection rate (m/s) 2.39
Maximum viscous criterion (m/s) 0.16
Pelvis
Combined force (kN) 1.8

About the side crash test

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • All trims; built after August 2024
Evaluation criteriaRating
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
G
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the sharp left and both right curves and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual left and both right curves and fair on the sharp left curve.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test
Evaluation criteria Measurement
Trim level(s)
  • All trims
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2024 models built after August 2024
G
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 93.7 m None
Straightaway left edge 55.5 m None
250m radius right curve, right edge 84.5 m None
250m radius left curve, right edge 50.7 m None
150m radius right curve, right edge 67.7 m None
150m radius left curve, left edge 58.9 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 164.3 m
Straightaway left edge 159.1 m
250m radius right curve, right edge 89.3 m
250m radius left curve, left edge 79.4 m
150m radius right curve, right edge 68.6 m
150m radius left curve, left edge 63.5 m

Trim level(s)

  • All trims; built before September 2024
Evaluation criteriaRating
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
P
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination Excessive glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

Technical measurements for this test
Evaluation criteria Measurement
Trim level(s)
  • All trims
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2024 models built before September 2024
P
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 109.0 m 68.5%
Straightaway left edge 64.3 m 68.5%
250m radius right curve, right edge 82.1 m 46.7%
250m radius left curve, left edge 77.0 m 4.5%
150m radius right curve, right edge 66.4 m 56.9%
150m radius left curve, left edge 67.5 m 36.9%
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 172.3 m
Straightaway left edge 157.4 m
250m radius right curve, right edge 85.8 m
250m radius left curve, left edge 86.5 m
150m radius right curve, right edge 66.3 m
150m radius left curve, left edge 68.6 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle 2.0

Rating applies to all 2024 models

System details

  • standard Automatic Emergency Braking/Front Pedestrian Braking

Overall evaluation

G

Passenger car target

Test runSpeed reductionTimely warning?
31 mph/target centeredCollision avoided
31 mph/target off-centerCollision avoided
37 mph/target centeredCollision avoided
37 mph/target off-centerCollision avoided
43 mph/target centeredCollision avoided
43 mph/target off-centerCollision avoided

Motorcycle target

Test runSpeed reductionTimely warning?
31 mph/target centeredCollision avoided
31 mph/target off-centerCollision avoided
37 mph/target centeredCollision avoided
37 mph/target off-center31 mph
43 mph/target centered34 mph
43 mph/target off-centerCollision avoided

Semitrailer

Only warning is tested with the semitrailer.

Test runTimely warning?
31 mph/target centered
37 mph/target centered
43 mph/target centered

About the front crash prevention test

Front crash prevention: pedestrian

Rating applies to all 2024 models

System details

  • standard Automatic Emergency Braking/Front Pedestrian Braking
Evaluation criteriaRating
Overall evaluation
A
Includes high-beam assist credit

Crossing child — day

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Crossing adult — night

  • In the 12 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.

Parallel adult — night

  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 19 mph when using its high beams and a warning was issued 1.7 seconds before impact. When using its low beams, impact speed was reduced by 21 mph and a warning was issued 1.7 seconds before impact.

About the pedestrian front crash prevention test

Seat belt reminders

Rating applies to 2024-25 models

Evaluation criteriaRating
Overall evaluation
G
Front row
Unbelted occupant alert (audible & visual)
Initiation time
DurationLong enough (90+ seconds)
Volume
Audio frequency
Second row
Startup status alert (visual)
Initiation time
Duration at least 60 seconds
Belt disengaged alert (audible & visual)
Initiation time
Duration at least 30 seconds
Volume
Audio frequency
Technical measurements for this test
Background cabin sound pressure level at 24 km/h 50 dB
Audible signal sound pressure level at 24 km/h 74 dB
Difference between background and signal 24.2 dB
Background cabin sound pressure level at 40 km/h 52 dB
Audible signal sound pressure level at 40 km/h 71 dB
Difference between background and signal 19.1 dB
Dominant audio frequency 784 Hz

About the seat belt reminder evaluation

Child seat anchors

Rating applies to 2024-25 models

Evaluation criteriaRating
Overall evaluation
G
Vehicle trimA-SPEC
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Evaluation criteriaRating
Overall evaluation
G
Vehicle trimA-SPEC
Seat type leather
1 2 3
Rating iconRating
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

PositionRating
1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 84
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 79
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned for use of LATCH		 Yes

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned for use of LATCH		 Yes

Seat position 23

1

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 78
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 78
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned for use of LATCH		 Yes

About the child seat anchor evaluation
