Top Safety Pick +

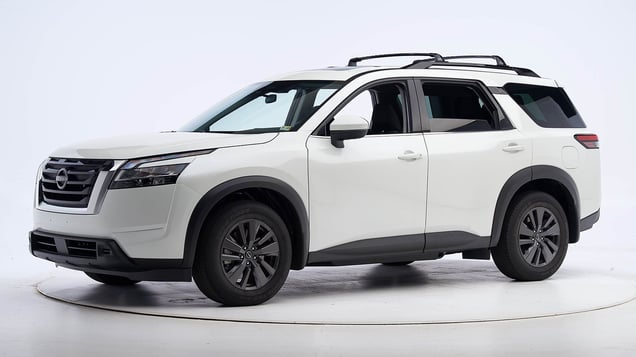

2023 Nissan Pathfinder

midsize SUV / 4-door SUV

Crashworthiness

Rating overview
Evaluation criteria	Rating
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Side: updated test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Evaluation criteria	Rating
Headlights
Front crash prevention: vehicle-to-vehicle
Standard system	Superior
Front crash prevention: pedestrian (day)
Standard system	Superior
Front crash prevention: pedestrian (night)
Standard system	Superior

Seat belts & child restraints

Evaluation criteria	Rating
Seat belt reminders
LATCH ease of use	+

Other available safety features

Standard blind spot detection
Standard lane departure warning
Optional lane departure prevention
Standard rear automatic braking

Key

G
Good
A
Acceptable
M
Marginal
P
Poor

Superior
Advanced
Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2022-25 models

Tested vehicle: 2022 Nissan Pathfinder S 4-door 4wd

The Nissan Pathfinder and Infiniti QX60 were redesigned for the 2022 model year after a one-year absence from the market. Driver-side small overlap frontal ratings are assigned by the Institute based on a test of a 2022 Pathfinder conducted by Nissan.

Evaluation criteria	Rating

Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTN2111
Lower occupant compartment
Lower hinge pillar max (cm)	8
Footrest (cm)	6
Left toepan (cm)	2
Brake pedal (cm)	4
Parking brake (cm)	0
Rocker panel lateral average (cm)	1
Upper occupant compartment
Steering column	0
Upper hinge pillar max (cm)	8
Upper dash (cm)	7
Lower instrument panel (cm)	6

Evaluation criteria	Measurement
Test ID	VTN2111
Head
HIC-15	109
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.8
Extension bending moment (Nm)	12
Maximum Nij	0.16
Chest maximum compression (mm)	25
Femur (kN)
Left	0.7
Right	0.3
Knee displacement (mm)
Left	1
Right	2
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.54
Right	0.36
Tibia axial force (kN)
Left	1.8
Right	0.8
Foot acceleration (g)
Left	38
Right	46

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2022-25 models

Tested vehicle: 2022 Nissan Pathfinder S 4-door 4wd

The Nissan Pathfinder and Infiniti QX60 were redesigned for the 2022 model year after a one-year absence from the market. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2022 Pathfinder conducted by Nissan.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTP2114
Lower occupant compartment
Lower hinge pillar max (cm)	12
Footrest (cm)	9
Right toepan (cm)	5
Center toepan (cm)	4
Rocker panel lateral average (cm)	2
Upper occupant compartment
Center dash (cm)	3
Upper hinge pillar max (cm)	8
Upper dash (cm)	6
Right lower dash (cm)	4

Evaluation criteria	Measurement
Test ID	VTP2114
Head
HIC-15	95
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.7
Extension bending moment (Nm)	13
Maximum Nij	0.19
Chest maximum compression (mm)	19
Femur (kN)
Left	0.9
Right	0.6
Knee displacement (mm)
Left	1
Right	2
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.28
Right	0.39
Tibia axial force (kN)
Left	2.3
Right	1.5
Foot acceleration (g)
Left	29
Right	67

Evaluation criteria	Measurement
Test ID	VTP2114
Head
HIC-15	27
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.7
Extension bending moment (Nm)	12
Maximum Nij	0.15
Chest maximum compression (mm)	27
Femur (kN)
Left	0.6
Right	0.2
Knee displacement (mm)
Left	1
Right	1
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.26
Right	0.19
Tibia axial force (kN)
Left	0.9
Right	no data
Foot acceleration (g)
Left	28
Right	35

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2022-24 models

Tested vehicle: 2022 Nissan Pathfinder S 4-door 4wd

The Nissan Pathfinder and Infiniti QX60 were redesigned for the 2022 model year after a one year absence from the market. Moderate overlap frontal ratings are assigned by the Institute based on a test of a 2022 Pathfinder conducted by Nissan.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTF2111
Footwell intrusion
Footrest (cm)	6
Left (cm)	8
Center (cm)	7
Right (cm)	5
Brake pedal (cm)	2
Instrument panel rearward movement
Left (cm)	1
Right (cm)	1
Steering column movement
Upward (cm)	3
Rearward (cm)	-3
A-pillar rearward movement (cm)	1

Evaluation criteria	Measurement
Test ID	VTF2111
Head
HIC-15	174
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.4
Extension bending moment (Nm)	12
Maximum Nij	0.26
Chest maximum compression (mm)	29
Legs
Femur force - left (kN)	0.7
Femur force - right (kN)	0.8
Knee displacement - left (mm)	1
Knee displacement - right (mm)	0
Maximum tibia index - left	0.29
Maximum tibia index - right	0.30
Tibia axial force - left (kN)	2.7
Tibia axial force - right (kN)	2.0
Foot acceleration (g)
Left	52
Right	57

About the original moderate overlap front test

Side: original test

Rating applies to 2022-23 models

Tested vehicle: 2022 Nissan Pathfinder S 4-door 4wd

The Nissan Pathfinder and Infiniti QX60 were redesigned for the 2022 model year after a one year absence from the market. Side ratings are assigned by the Institute based on a test of a 2022 Pathfinder conducted by Nissan.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

Technical measurements for this test

Test ID	VTS2113
B-pillar to longitudinal centerline of driver's seat (cm)	-22.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Evaluation criteria	Measurement
Test ID	VTS2113
Head HIC-15	100
Neck
Tension (kN)	0.7
Compression (kN)	0.5
Shoulder
Lateral deflection (mm)	25
Lateral force (kN)	1.0
Torso
Maximum deflection (mm)	28
Average deflection (mm)	25
Maximum deflection rate (m/s)	2.59
Maximum viscous criterion (m/s)	0.26
Pelvis
Iliac force (kN)	1.0
Acetabulum force (kN)	0.9
Combined force (kN)	1.9
Left femur
L-M force (kN)	0.4
L-M moment (Nm)	87
A-P moment (Nm)	-71

Evaluation criteria	Measurement
Test ID	VTS2113
Head HIC-15	66
Neck
Tension (kN)	0.2
Compression (kN)	0.7
Shoulder
Lateral deflection (mm)	9
Lateral force (kN)	0.7
Torso
Maximum deflection (mm)	14
Average deflection (mm)	12
Maximum deflection rate (m/s)	1.35
Maximum viscous criterion (m/s)	0.08
Pelvis
Iliac force (kN)	0.4
Acetabulum force (kN)	0.7
Combined force (kN)	1.0
Left femur
L-M force (kN)	0.2
L-M moment (Nm)	92
A-P moment (Nm)	43

About the original side crash test

Side: updated test

Rating applies to 2022-25 models

Tested vehicle: 2022 Nissan Pathfinder SV 4-door 4wd

The Nissan Pathfinder and Infiniti QX60 were redesigned for the 2022 model year after a one-year absence from the market.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CES2210
B-pillar to longitudinal centerline of driver's seat (cm)	-14.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Evaluation criteria	Measurement
Test ID	CES2210
Head
HIC-15	125
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.2
Compression (kN)	0.1
Shoulder
Lateral deflection (mm)	16
Lateral force (kN)	0.7
Torso
Maximum deflection (mm)	24
Average deflection (mm)	21
Maximum deflection rate (m/s)	2.36
Maximum viscous criterion (m/s)	0.17
Pelvis
Combined force (kN)	5.2

Evaluation criteria	Measurement
Test ID	CES2210
Head
HIC-15	65
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.4
Compression (kN)	0.3
Shoulder
Lateral deflection (mm)	14
Lateral force (kN)	0.8
Torso
Maximum deflection (mm)	19
Average deflection (mm)	16
Maximum deflection rate (m/s)	1.61
Maximum viscous criterion (m/s)	0.15
Pelvis
Combined force (kN)	2.6

About the side crash test

Roof strength

Rating applies to 2022-23 models

Tested vehicle: 2022 Nissan Pathfinder SV 4-door 4wd

Ratings apply to the Pathfinder (tested) and the structurally similar Infiniti QX60.

Overall evaluation
Curb weight	4,555 lbs
Peak force	24,277 lbs
Strength-to-weight ratio	5.33

About the roof strength test

Head restraints & seats

Seat type: Power leather seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Technical measurements for this test

Seat type	Power leather seat
Geometry
Backset (mm)	18
Distance below top of head (mm)	13
Seat design parameters
Pass/fail	Pass
Max T1 acceleration (g)	12.8
Head contact time (ms)	57
Force rating	1
Neck forces
Max neck shear force (N)	0
Max neck tension (N)	356

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Trim level(s)

All trims

Evaluation criteria	Rating
Low-beam headlight type	LED reflector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the sharp left and both right curves and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on the gradual right curve and fair on the sharp right and both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	All trims
Low-beam headlight type	LED reflector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating Applies to 2022-25 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	95.2 m	None
Straightaway left edge	51.9 m	None
250m radius right curve, right edge	60.7 m	None
250m radius left curve, right edge	49.1 m	None
150m radius right curve, right edge	47.7 m	None
150m radius left curve, left edge	46.7 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	137.1 m
Straightaway left edge	139.5 m
250m radius right curve, right edge	78.7 m
250m radius left curve, right edge	72.6 m
150m radius right curve, right edge	56.5 m
150m radius left curve, left edge	57.2 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

Standard Automatic Emergency Braking with Pedestrian Detection

Overall evaluation

Applies to 2022-23 models

Superior

This system meets the requirements for forward collision warning.
In the 12 mph test, this vehicle avoided a collision.
In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Front crash prevention: pedestrian (day)

System details

standard Automatic Emergency Braking with Pedestrian Detection

Overall evaluation

This rating applies to all 2022-25 models

Superior

Crossing child

In the 12 mph test, impact speed was reduced by 11 mph.
In the 25 mph test, this vehicle avoided a collision.

Crossing adult

In the 12 mph test, this vehicle avoided a collision.
In the 25 mph test, this vehicle avoided a collision.

Parallel adult

In the 25 mph test, this vehicle avoided a collision.
In the 37 mph test, this vehicle avoided a collision. A warning was issued 2.3 seconds before impact.

About the pedestrian front crash prevention test

Front crash prevention: pedestrian (night)

Night

System details

standard Automatic Emergency Braking with Pedestrian Detection

Overall evaluation

Includes high-beam assist credit

This rating applies to all 2022-25 models

Superior

Crossing adult

In the 12 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.

Parallel adult

In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
In the 37 mph test, this vehicle avoided a collision when using its high beams and a warning was issued 1.7 seconds before impact. When using its low beams, this vehicle avoided a collision and a warning was issued 1.5 seconds before impact.

About pedestrian front crash prevention test

Seat belt reminders

Rating applies to 2022-23 models

Evaluation criteria	Rating
Overall evaluation
Front row
Unbelted occupant alert (audible & visual)
Initiation time
Duration	Long enough (90+ seconds)
Volume
Audio frequency
Second row
Startup status alert (visual)
Initiation time
Duration at least 60 seconds
Belt disengaged alert (audible & visual)
Initiation time
Duration at least 30 seconds
Volume
Audio frequency

Technical measurements for this test

About the seat belt reminder evaluation

Child seat anchors

Rating applies to 2022-25 models

Evaluation criteria	Rating
Overall evaluation	+ extra LATCH positions
Vehicle trim	SV
Seat type	cloth

This vehicle has 3 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 2 additional seating positions with a tether anchor only.

Evaluation criteria	Rating
Overall evaluation	+ extra LATCH positions
Vehicle trim	SV
Seat type	cloth

Rating icon	Rating
G	Good
A	Acceptable
M	Marginal
P	Poor
	Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol	Tether anchor
lower anchor symbol	Lower anchors
shared lower achors symbol	Lower anchor(s) can be borrowed from adjacent positions(s)
	No hardware available

Details by seating position

Position	Rating
1
1	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
3
3	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
4
4	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	none available
5
5	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	none available
6
6	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors

Technical measurements for this test

Seat position 21

Lower anchor A
Open access rated	No
Depth (cm)	0-2
Force (lbs)	5
Clearance angle (degrees)	88
Lower anchor B
Open access rated	No
Depth (cm)	0-2
Force (lbs)	7
Clearance angle (degrees)	85
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Seat position 23

Lower anchor A
Open access rated	No
Depth (cm)	0-2
Force (lbs)	7
Clearance angle (degrees)	81
Lower anchor B
Open access rated	No
Depth (cm)	0-2
Force (lbs)	5
Clearance angle (degrees)	80
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Seat position 31

Lower anchor A
Open access rated	No
Depth (cm)	0-2
Force (lbs)	12
Clearance angle (degrees)	82
Lower anchor B
Open access rated	No
Depth (cm)	0-2
Force (lbs)	18
Clearance angle (degrees)	81
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Seat position 32

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Seat position 33

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

About the child seat anchor evaluation

Background cabin sound pressure level at 24 km/h	51 dB
Audible signal sound pressure level at 24 km/h	60 dB
Difference between background and signal	9.5 dB
Background cabin sound pressure level at 40 km/h	54 dB
Audible signal sound pressure level at 40 km/h	61 dB
Difference between background and signal	6.4 dB
Dominant audio frequency	584 Hz
