Top Safety PickTop Safety Pick criteria

2022 BMW X5

midsize luxury SUV / 4-door SUV

Award applies only to vehicles with specific headlights

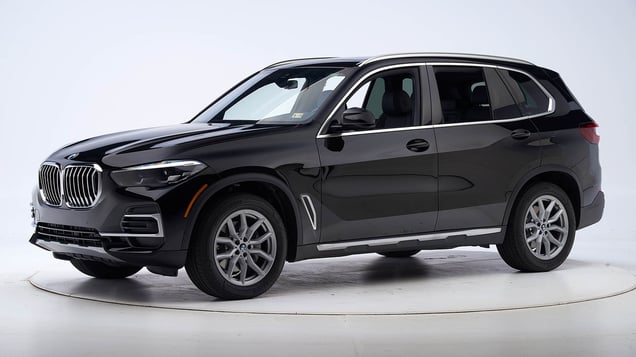

2022 BMW X5 4-door SUV

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Side: updated test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention: vehicle-to-vehicle
Standard system
Superior
Optional system
Superior
Front crash prevention: pedestrian (day)
Standard system
Superior

Seat belts & child restraints

Seat belt reminders
LATCH ease of use

Other available safety features

  • Standard blind spot detection
  • Standard lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2019-25 models

Tested vehicle: 2019 BMW X5 xDrive40i 4-door 4wd

The BMW X5 was redesigned for the 2019 model year. Driver-side small overlap ratings also apply to the BMW X6.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1902
Lower occupant compartment
Lower hinge pillar max (cm) 1
Footrest (cm) 12
Left toepan (cm) 9
Brake pedal (cm) 5
Parking brake (cm)
Rocker panel lateral average (cm) 0
Upper occupant compartment
Steering column 1
Upper hinge pillar max (cm) 1
Upper dash (cm) 1
Lower instrument panel (cm) 1

Driver injury measures

Test ID CEN1902
Head
HIC-15 114
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 8
Maximum Nij 0.22
Chest maximum compression (mm) 26
Femur (kN)
Left 1.4
Right 1.3
Knee displacement (mm)
Left 5
Right 5
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.41
Right 0.52
Tibia axial force (kN)
Left 2.3
Right 0.8
Foot acceleration (g)
Left 94
Right 38

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2019-25 models

Tested vehicle: 2019 BMW X5 xDrive40i 4-door 4wd

The BMW X5 was redesigned for the 2019 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by BMW. These ratings also apply to the BMW X6.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP1910
Lower occupant compartment
Lower hinge pillar max (cm) 2
Footrest (cm) 20
Right toepan (cm) 16
Center toepan (cm) 3
Rocker panel lateral average (cm) 0
Upper occupant compartment
Center dash (cm) 1
Upper hinge pillar max (cm) 2
Upper dash (cm) 3
Right lower dash (cm) 3

Passenger injury measures

Test ID VTP1910
Head
HIC-15 114
Peak gs at hard contact no contact
Neck
Tension (kN) 1.4
Extension bending moment (Nm) 14
Maximum Nij 0.19
Chest maximum compression (mm) 26
Femur (kN)
Left 2.0
Right 2.1
Knee displacement (mm)
Left 3
Right 5
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.64
Right 0.40
Tibia axial force (kN)
Left 2.1
Right 2.5
Foot acceleration (g)
Left 55
Right 85

Driver injury measures

Test ID VTP1910
Head
HIC-15 49
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 9
Maximum Nij 0.17
Chest maximum compression (mm) 28
Femur (kN)
Left 1.2
Right 0.6
Knee displacement (mm)
Left 3
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.43
Right 0.48
Tibia axial force (kN)
Left 1.3
Right 0.9
Foot acceleration (g)
Left 71
Right 67

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2019-25 models

Tested vehicle: 2019 BMW X5 xDrive40i 4-door 4wd

The BMW X5 was redesigned for the 2019 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by BMW. These ratings also apply to the BMW X6.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1908
Footwell intrusion
Footrest (cm) 2
Left (cm) 2
Center (cm) 2
Right (cm) 1
Brake pedal (cm) 1
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) -3
Rearward (cm) -8
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1908
Head
HIC-15 161
Peak gs at hard contact no contact
Neck
Tension (kN) 1.5
Extension bending moment (Nm) 11
Maximum Nij 0.27
Chest maximum compression (mm) 33
Legs
Femur force - left (kN) 3.0
Femur force - right (kN) 2.5
Knee displacement - left (mm) 6
Knee displacement - right (mm) 4
Maximum tibia index - left 0.48
Maximum tibia index - right 0.43
Tibia axial force - left (kN) 2.1
Tibia axial force - right (kN) 1.8
Foot acceleration (g)
Left 50
Right 41

About the original moderate overlap front test

Side: original test

Rating applies to 2019-24 models

Tested vehicle: 2019 BMW X5 xDrive40i 4-door 4wd

The BMW X5 was redesigned for the 2019 model year. Side ratings are assigned by the Institute based on a test conducted by BMW.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1910
B-pillar to longitudinal centerline of driver's seat (cm) -26.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1910
Head HIC-15 77
Neck
Tension (kN) 0.8
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 19
Lateral force (kN) 0.8
Torso
Maximum deflection (mm) 30
Average deflection (mm) 28
Maximum deflection rate (m/s) 2.94
Maximum viscous criterion (m/s) 0.37
Pelvis
Iliac force (kN) 0.9
Acetabulum force (kN) 2.4
Combined force (kN) 3.2
Left femur
L-M force (kN) 0.2
L-M moment (Nm) 34
A-P moment (Nm) 28

Passenger injury measures

Test ID VTS1910
Head HIC-15 50
Neck
Tension (kN) 0.2
Compression (kN) 0.6
Shoulder
Lateral deflection (mm) 6
Lateral force (kN) 0.5
Torso
Maximum deflection (mm) 12
Average deflection (mm) 9
Maximum deflection rate (m/s) 1.87
Maximum viscous criterion (m/s) 0.06
Pelvis
Iliac force (kN) 0.5
Acetabulum force (kN) 0.8
Combined force (kN) 1.1
Left femur
L-M force (kN) 0.3
L-M moment (Nm) 17
A-P moment (Nm) 16

About the original side crash test

Side: updated test

Rating applies to 2019-25 models

Tested vehicle: 2024 BMW X5 iDrive M60i 4-door 4wd

The BMW X5 was redesigned for the 2019 model year. Side 2.0 ratings are assigned by the Institute based on a test of a 2024 X5 conducted by BMW. These ratings do not apply to the BMW X6.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS2333
B-pillar to longitudinal centerline of driver's seat (cm) -28.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS2333
Head
HIC-15 35
Peak gs at hard contact no contact
Neck
Tension (kN) 0.6
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 12
Lateral force (kN) 0.5
Torso
Maximum deflection (mm) 21
Average deflection (mm) 18
Maximum deflection rate (m/s) 1.85
Maximum viscous criterion (m/s) 0.12
Pelvis
Combined force (kN) 2.9

Passenger injury measures

Test ID VTS2333
Head
HIC-15 36
Peak gs at hard contact no contact
Neck
Tension (kN) 0.2
Compression (kN) 0.7
Shoulder
Lateral deflection (mm) 6
Lateral force (kN) 0.4
Torso
Maximum deflection (mm) 16
Average deflection (mm) 11
Maximum deflection rate (m/s) 1.58
Maximum viscous criterion (m/s) 0.12
Pelvis
Combined force (kN) 3.1

About the side crash test

Roof strength

Rating applies to 2019-23 models

Tested vehicle: 2019 BMW X5 xDrive40i 4-door 4wd

Overall evaluation
Curb weight4,825 lbs
Peak force25,368 lbs
Strength-to-weight ratio5.26

About the roof strength test

Head restraints & seats

Seat type: Power leather seat AHR

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power leather seat AHR
Geometry
Backset (mm) 14
Distance below top of head (mm) -19
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 10.5
Head contact time (ms) 35
Force rating 1
Neck forces
Max neck shear force (N) 8
Max neck tension (N) 281

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • xDrive40i trim equipped with Icon Adaptive Headlights with Laser Light package
  • xDrive40i Convenience trim equipped with Icon Adaptive Headlights with Laser Light package
  • xDrive40i Premium trim equipped with Icon Adaptive Headlights with Laser Light package
  • xDrive40i Executive trim
  • xDrive50i trim equipped with Icon Adaptive Headlights with Laser Light package
  • xDrive50i Premium trim equipped with Icon Adaptive Headlights with Laser Light package
  • xDrive50i Executive trim
Low-beam headlight typeLED projector
High-beam headlight typeLED reflector
Curve-adaptive?Yes
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Some glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

The low beams created some glare.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was good in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on the gradual left curve.

Technical measurements for this test
Trim level(s)
  • xDrive40i trim equipped with Icon Adaptive Headlights with Laser Light package
  • xDrive40i Convenience trim equipped with Icon Adaptive Headlights with Laser Light package
  • xDrive40i Premium trim equipped with Icon Adaptive Headlights with Laser Light package
  • xDrive40i Executive trim
  • xDrive50i trim equipped with Icon Adaptive Headlights with Laser Light package
  • xDrive50i Premium trim equipped with Icon Adaptive Headlights with Laser Light package
  • xDrive50i Executive trim
Low-beam headlight type LED projector
High-beam headlight type LED reflector
Curve-adaptive? Yes
High-beam assist? Yes
Overall rating
Applies to 2019-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 93.8 m None
Straightaway left edge 62.4 m None
250m radius right curve, right edge 94.0 m 2.2%
250m radius left curve, left edge 67.0 m None
150m radius right curve, right edge 70.4 m 15.2%
150m radius left curve, left edge 62.5 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 137.2 m
Straightaway left edge 91.9 m
250m radius right curve, right edge 95.5 m
250m radius left curve, left edge 81.4 m
150m radius right curve, right edge 70.2 m
150m radius left curve, left edge 67.4 m

Trim level(s)

  • xDrive40i trim
  • xDrive40i Convenience trim
  • xDrive40i Premium trim
  • xDrive50i trim
  • xDrive50i Premium trim
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?Yes
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination Excessive glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

The low beams created excessive glare.

High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was good in all 4 tests.

Technical measurements for this test
Trim level(s)
  • xDrive40i trim
  • xDrive40i Convenience trim
  • xDrive40i Premium trim
  • xDrive50i trim
  • xDrive50i Premium trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? Yes
High-beam assist? Yes
Overall rating
Applies to 2019-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 116.0 m 532.8%
Straightaway left edge 84.1 m 532.8%
250m radius right curve, right edge 87.2 m 237.5%
250m radius left curve, left edge 80.5 m 644.5%
150m radius right curve, right edge 78.2 m 231.0%
150m radius left curve, left edge 71.4 m 677.8%
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 121.7 m
Straightaway left edge 100.2 m
250m radius right curve, right edge 94.6 m
250m radius left curve, left edge 84.7 m
150m radius right curve, right edge 79.5 m
150m radius left curve, left edge 73.5 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

Ratings are given for 2 different trim variations available on this vehicle.

System details

  • Standard Active Driving Assistant

Overall evaluation

Applies to 2020-23 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

System details

  • Optional Active Driving Assistant Professional

Package name

  • Optional Driving Assistance Professional Package

Overall evaluation

Applies to 2020-23 models

Superior
Superior
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 23 mph.

About the original front crash prevention test

Front crash prevention: pedestrian (day)

System details

  • standard Active Driving Assistant

Overall evaluation

This rating applies to all 2022-23 models

Superior
Superior

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 21 mph.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, this vehicle avoided a collision. A warning was issued 1.8 seconds before impact.

About the pedestrian front crash prevention test

Seat belt reminders

Rating applies to 2022-23 models

Overall evaluation
Front row
Unbelted occupant alert (audible & visual)
Initiation time
DurationLong enough (90+ seconds)
Volume
Audio frequency
Second row
Startup status alert (visual)
Initiation time
Duration at least 60 seconds
Belt disengaged alert (audible & visual)
Initiation time
Duration at least 30 seconds
Volume
Audio frequency
Technical measurements for this test
Background cabin sound pressure level at 24 km/h 50 dB
Audible signal sound pressure level at 24 km/h 62 dB
Difference between background and signal 11.9 dB
Background cabin sound pressure level at 40 km/h 52 dB
Audible signal sound pressure level at 40 km/h 62 dB
Difference between background and signal 10.1 dB
Dominant audio frequency 584 Hz

About the seat belt reminder evaluation

Child seat anchors

Rating applies to 2019-25 models

Overall evaluation
Vehicle trimxDrive40i
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimxDrive40i
Seat type leather
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 1
Clearance angle (degrees) 62
Lower anchor B
Open access rated No
Depth (cm) -2-0
Force (lbs) 2
Clearance angle (degrees) 73
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) -2-0
Force (lbs) 4
Clearance angle (degrees) 61
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 1
Clearance angle (degrees) 63
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
