2025 Cadillac Lyriq

midsize luxury SUV / 4-door SUV

Fully electric

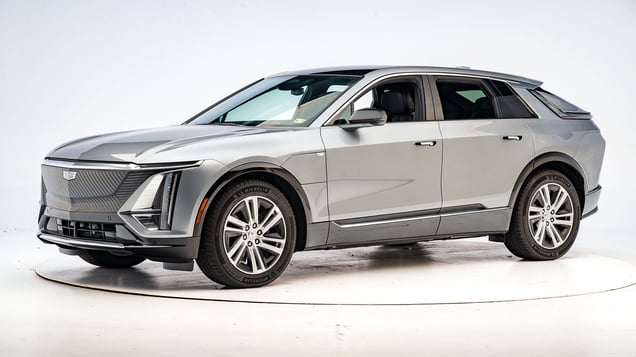

2025 Cadillac Lyriq 4-door SUV — 2024 Cadillac Lyriq shown

Crashworthiness

Rating overview
Evaluation criteria	Rating
Small overlap front
Moderate overlap front: updated test
Side: updated test

Crash avoidance & mitigation

Evaluation criteria	Rating
Headlights
Front crash prevention: vehicle-to-vehicle 2.0
Standard system
Front crash prevention: pedestrian
Standard system

Seat belts & child restraints

Evaluation criteria	Rating
Seat belt reminders
LATCH ease of use

Other available safety features

Standard blind spot detection
Standard lane departure warning & prevention
Standard rear automatic braking

Key

Good
Acceptable
Marginal
Poor

Small overlap front

The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.

Driver-side

Rating applies to 2024-25 models

Tested vehicle: 2024 Cadillac Lyriq EV Tech 4-door 4wd

The Cadillac Lyriq was introduced in the 2023 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test of a 2024 Lyriq conducted by General Motors.

Evaluation criteria	Rating
Overall driver-side evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTN2409
Lower occupant compartment
Lower hinge pillar max (cm)	8
Footrest (cm)	12
Left toepan (cm)	9
Brake pedal (cm)	2
Parking brake (cm)
Rocker panel lateral average (cm)	0
Upper occupant compartment
Steering column	0
Upper hinge pillar max (cm)	4
Upper dash (cm)	4
Lower instrument panel (cm)	4

Evaluation criteria	Measurement
Test ID	VTN2409
Head
HIC-15	174
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.3
Extension bending moment (Nm)	11
Maximum Nij	0.22
Chest maximum compression (mm)	28
Femur (kN)
Left	0.4
Right	0.3
Knee displacement (mm)
Left	2
Right	0
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.94
Right	0.25
Tibia axial force (kN)
Left	3.3
Right	2.6
Foot acceleration (g)
Left	83
Right	82

Passenger-side

Rating applies to 2024-25 models

Tested vehicle: 2024 Cadillac Lyriq EV Tech 4-door 4wd

The Cadillac Lyriq was introduced in the 2023 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2024 Lyriq conducted by General Motors.

Evaluation criteria	Rating
Overall passenger-side evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics The dummy’s head contacted the right side of the frontal airbag but began to move into the gap between the frontal and side curtain airbags, leaving the head vulnerable to contact with forward structure. The inflated side curtain airbag has sufficient forward coverage to protect the head from contact with side structure and outside objects.
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTP2411
Lower occupant compartment
Lower hinge pillar max (cm)	9
Footrest (cm)	6
Right toepan (cm)	4
Center toepan (cm)	3
Rocker panel lateral average (cm)	0
Upper occupant compartment
Center dash (cm)	3
Upper hinge pillar max (cm)	4
Upper dash (cm)	5
Right lower dash (cm)	4

Evaluation criteria	Measurement
Test ID	VTP2411
Head
HIC-15	78
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.0
Extension bending moment (Nm)	20
Maximum Nij	0.28
Chest maximum compression (mm)	13
Femur (kN)
Left	0.6
Right	0.2
Knee displacement (mm)
Left	1
Right	0
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.25
Right	0.55
Tibia axial force (kN)
Left	1.7
Right	1.5
Foot acceleration (g)
Left	34
Right	30

Evaluation criteria	Measurement
Test ID	VTP2411
Head
HIC-15	34
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.7
Extension bending moment (Nm)	5
Maximum Nij	0.16
Chest maximum compression (mm)	18
Femur (kN)
Left	0.1
Right	0.1
Knee displacement (mm)
Left	0
Right	0
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.25
Right	0.22
Tibia axial force (kN)
Left	0.8
Right	0.5
Foot acceleration (g)
Left	25
Right	32

About the small overlap front test

Moderate overlap front: updated test

Rating applies to 2024-25 models

Tested vehicle: 2024 Cadillac Lyriq Tech 4-door 4wd

The Cadillac Lyriq was introduced in the 2023 model year.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Thigh/hip
Leg/foot
Driver restraints and dummy kinematics
Rear passenger injury measures
Head/neck
Chest
Thigh
Rear passenger restraints and dummy kinematics

View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

The rear passenger dummy's head approached the front seatback, which increases the risk of head injuries.

Rear passenger dummy injury values indicate a low risk of injury to the head or neck and chest. During the crash, the shoulder belt remained in an ideal position on the dummy’s chest.

The rear passenger dummy's lap belt remained in the ideal position on the pelvis.

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CEF2451
Footwell intrusion
Footrest (cm)	2
Left (cm)	2
Center (cm)	3
Right (cm)	2
Brake pedal (cm)	11
Instrument panel rearward movement
Left (cm)	1
Right (cm)	2
Steering column movement
Upward (cm)	-3
Rearward (cm)	-8
A-pillar rearward movement (cm)	0

Evaluation criteria	Measurement
Test ID	CEF2451
Head
HIC-15	137
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.1
Extension bending moment (Nm)	13
Maximum Nij	0.19
Chest maximum compression (mm)	22
Femur (kN)
Left	0.5
Right	0.1
Knee displacement (mm)
Left	0
Right	0
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.15
Right	0.23
Tibia axial force (kN)
Left	1.3
Right	1.3
Foot acceleration (g)
Left	42
Right	43

Test ID	CEF2451
Head
HIC-15 for head contact during forward excursion	no contact
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.6
Compression (kN)	0.6
Maximum Nij for head contact during forward excursion	no contact
Chest
Chest index	35
Shoulder belt tension (kN)	4.0
Thigh (kN)
Left femur compression	0.1
Right femur compression	0.1

About the moderate overlap front test

February 2024 adjustment to rating criteria

Side: updated test

Rating applies to 2024-25 models

Tested vehicle: 2024 Cadillac Lyriq EV Luxury 4-door 4wd

The Cadillac Lyriq was introduced in the 2023 model year. Side 2.0 ratings are assigned by the Institute based on a test of a 2024 Lyriq conducted by General Motors.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTS2416
B-pillar to longitudinal centerline of driver's seat (cm)	-27.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Evaluation criteria	Measurement
Test ID	VTS2416
Head
HIC-15	80
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.9
Compression (kN)	0.1
Shoulder
Lateral deflection (mm)	27
Lateral force (kN)	-1.5
Torso
Maximum deflection (mm)	36
Average deflection (mm)	32
Maximum deflection rate (m/s)	3.85
Maximum viscous criterion (m/s)	0.65
Pelvis
Combined force (kN)	2.9

Evaluation criteria	Measurement
Test ID	VTS2416
Head
HIC-15	41
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.4
Compression (kN)	-0.3
Shoulder
Lateral deflection (mm)	5
Lateral force (kN)	-0.5
Torso
Maximum deflection (mm)	26
Average deflection (mm)	16
Maximum deflection rate (m/s)	4.31
Maximum viscous criterion (m/s)	0.39
Pelvis
Combined force (kN)	1.8

About the side crash test

Headlights

Trim level(s)

All trims

Evaluation criteria	Rating
Low-beam headlight type	LED projector
High-beam headlight type	LED projector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on the gradual right and both left curves and inadequate on the sharp right curve.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on the gradual left and gradual right curves and inadequate on the sharp left and sharp right curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on both right curves.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	All trims
Low-beam headlight type	LED projector
High-beam headlight type	LED projector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating Applies to 2025 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	95.4 m	223.3%
Straightaway left edge	75.5 m	223.3%
250m radius right curve, right edge	60.6 m	22.1%
250m radius left curve, left edge	58.8 m	37.5%
150m radius right curve, right edge	43.7 m	None
150m radius left curve, left edge	49.0 m	11.1%

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	170.0 m
Straightaway left edge	177.3 m
250m radius right curve, right edge	69.7 m
250m radius left curve, left edge	72.5 m
150m radius right curve, right edge	48.1 m
150m radius left curve, left edge	52.4 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle 2.0

Rating applies to all 2024-25 models

System details

standard Automatic Emergency Braking/Front Pedestrian Braking

Overall evaluation

Passenger car target

Test run	Speed reduction	Timely warning?
31 mph/target centered	Collision avoided
31 mph/target off-center	Collision avoided
37 mph/target centered	Collision avoided
37 mph/target off-center	Collision avoided
43 mph/target centered	Collision avoided
43 mph/target off-center	Collision avoided

Motorcycle target

Test run	Speed reduction	Timely warning?
31 mph/target centered	Collision avoided
31 mph/target off-center	Collision avoided
37 mph/target centered	Collision avoided
37 mph/target off-center	31 mph
43 mph/target centered	34 mph
43 mph/target off-center	Collision avoided

Semitrailer

Only warning is tested with the semitrailer.

Test run	Timely warning?
31 mph/target centered
37 mph/target centered
43 mph/target centered

About the front crash prevention test

Front crash prevention: pedestrian

Rating applies to all 2024-25 models

System details

standard Automatic Emergency Braking/Front Pedestrian Braking

Evaluation criteria	Rating
Overall evaluation
Includes high-beam assist credit

Crossing child — day

In the 12 mph test, this vehicle avoided a collision.
In the 25 mph test, this vehicle avoided a collision.

Crossing adult — night

In the 12 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.

Parallel adult — night

In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
In the 37 mph test, impact speed was reduced by 19 mph when using its high beams and a warning was issued 1.7 seconds before impact. When using its low beams, impact speed was reduced by 21 mph and a warning was issued 1.7 seconds before impact.

About the pedestrian front crash prevention test

Seat belt reminders

Rating applies to 2024-25 models

Evaluation criteria	Rating
Overall evaluation
Front row
Unbelted occupant alert (audible & visual)
Initiation time
Duration	Long enough (90+ seconds)
Volume
Audio frequency
Second row
Startup status alert (visual)
Initiation time
Duration at least 60 seconds
Belt disengaged alert (audible & visual)
Initiation time
Duration at least 30 seconds
Volume
Audio frequency

Technical measurements for this test

About the seat belt reminder evaluation

Child seat anchors

Rating applies to 2024-25 models

Evaluation criteria	Rating
Overall evaluation
Vehicle trim	Tech
Seat type	leatherette

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Evaluation criteria	Rating
Overall evaluation
Vehicle trim	Tech
Seat type	leatherette

Rating icon	Rating
G	Good
A	Acceptable
M	Marginal
P	Poor
	Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol	Tether anchor
lower anchor symbol	Lower anchors
shared lower achors symbol	Lower anchor(s) can be borrowed from adjacent positions(s)
	No hardware available

Details by seating position

Position	Rating
1
1	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
2
2	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	none available
3
3	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors

Technical measurements for this test

Lower anchor A
Open access rated	Yes
Depth	Visible
Force (lbs)	0
Clearance angle (degrees)	83
Lower anchor B
Open access rated	Yes
Depth	Visible
Force (lbs)	0
Clearance angle (degrees)	78
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Yes

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Yes

Lower anchor A
Open access rated	Yes
Depth	Visible
Force (lbs)	0
Clearance angle (degrees)	85
Lower anchor B
Open access rated	Yes
Depth	Visible
Force (lbs)	0
Clearance angle (degrees)	86
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Yes

About the child seat anchor evaluation

Background cabin sound pressure level at 24 km/h	51 dB
Audible signal sound pressure level at 24 km/h	69 dB
Difference between background and signal	17.6 dB
Background cabin sound pressure level at 40 km/h	54 dB
Audible signal sound pressure level at 40 km/h	70 dB
Difference between background and signal	15.1 dB
Dominant audio frequency	784 Hz
