2021 Chrysler Voyager

minivan

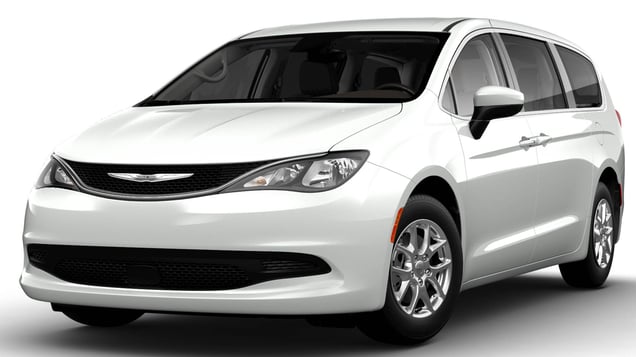

2021 Chrysler Voyager Minivan
Photo courtesy of FCA US LLC.

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Optional system
Superior
Front crash prevention: pedestrian (day)
Optional system (built after September 2021)
Advanced
Optional system (built before October 2021)
Basic

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Optional lane departure warning

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2020-24 models

Tested vehicle: 2017 Chrysler Pacifica Touring

The Chrysler Pacifica was introduced in the 2017 model year as a replacement for the Chrysler Town and Country minivan. The Chrysler Voyager, available new only to fleet buyers, was introduced in the 2020 model year and shares the same platform as the Pacifica.

Two tests of the Pacifica were conducted because the driver door was torn off its hinges in the first test. As a result, Fiat Chrysler strengthened the upper hinge and reinforced the joint between the door hinge pillar and inner body panel in front of the pillar. In the second test, the upper hinge held and the door stayed shut.

The small overlap frontal ratings listed below apply only to vehicles built after August 2016, that is after the door hinge improvements were made. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test of the 2017 Chrysler Pacifica built after August 2016.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained reasonably well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1635
Lower occupant compartment
Lower hinge pillar max (cm) 12
Footrest (cm) 14
Left toepan (cm) 11
Brake pedal (cm) 5
Parking brake (cm)
Rocker panel lateral average (cm) 4
Upper occupant compartment
Steering column 2
Upper hinge pillar max (cm) 7
Upper dash (cm) 8
Lower instrument panel (cm) 9

Driver injury measures

Test ID CEN1635
Head
HIC-15 71
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 8
Maximum Nij 0.18
Chest maximum compression (mm) 20
Femur (kN)
Left 1.2
Right 0.8
Knee displacement (mm)
Left 2
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.73
Right 0.31
Tibia axial force (kN)
Left 2.2
Right 1.7
Foot acceleration (g)
Left 45
Right 28

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2020-24 models built after August 2020

Tested vehicle: 2020 Chrysler Pacifica Touring Plus 4-door

The Chrysler Pacifica was introduced in the 2017 model year as a replacement for the Chrysler Town and Country minivan. The Chrysler Voyager, available new only to fleet buyers, was introduced in the 2020 model year and shares the same platform as the Pacifica.

Beginning with 2020 models built after August 2020, the passenger front door hinge pillar, A-pillar and door sill was strengthened to improve occupant protection in passenger-side small overlap frontal crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2020 Chrysler Pacificia conducted by Fiat Chrysler.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP2013
Lower occupant compartment
Lower hinge pillar max (cm) 11
Footrest (cm) 15
Right toepan (cm) 9
Center toepan (cm) 2
Rocker panel lateral average (cm) 3
Upper occupant compartment
Center dash (cm) 5
Upper hinge pillar max (cm) 5
Upper dash (cm) 7
Right lower dash (cm) 7

Passenger injury measures

Test ID VTP2013
Head
HIC-15 55
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 9
Maximum Nij 0.21
Chest maximum compression (mm) 23
Femur (kN)
Left 1.6
Right 1.7
Knee displacement (mm)
Left 3
Right 4
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.45
Right 0.48
Tibia axial force (kN)
Left 2.8
Right 1.9
Foot acceleration (g)
Left 36
Right 33

Driver injury measures

Test ID VTP2013
Head
HIC-15 36
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 7
Maximum Nij 0.14
Chest maximum compression (mm) 29
Femur (kN)
Left 0.1
Right 0.3
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.40
Right 0.34
Tibia axial force (kN)
Left 0.5
Right 0.3
Foot acceleration (g)
Left 37
Right 28

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2020-24 models

Tested vehicle: 2017 Chrysler Pacifica Touring

The Chrysler Pacifica was introduced in the 2017 model year as a replacement for the Chrysler Town and Country minivan. The Chrysler Voyager, available new only to fleet buyers, was introduced in the 2020 model year and shares the same platform as the Pacifica. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Fiat Chrysler.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1615
Footwell intrusion
Footrest (cm) 10
Left (cm) 15
Center (cm) 16
Right (cm) 16
Brake pedal (cm) 9
Instrument panel rearward movement
Left (cm) 1
Right (cm) 1
Steering column movement
Upward (cm) -4
Rearward (cm) -6
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1615
Head
HIC-15 151
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 14
Maximum Nij 0.20
Chest maximum compression (mm) 31
Legs
Femur force - left (kN) 0.3
Femur force - right (kN) 0.0
Knee displacement - left (mm) 1
Knee displacement - right (mm) 0
Maximum tibia index - left 0.68
Maximum tibia index - right 0.53
Tibia axial force - left (kN) 1.6
Tibia axial force - right (kN) 2.0
Foot acceleration (g)
Left 69
Right 82

About the original moderate overlap front test

Side: original test

Rating applies to 2020-24 models

Tested vehicle: 2017 Chrysler Pacifica Touring

The Chrysler Pacifica was introduced in the 2017 model year as a replacement for the Chrysler Town and Country minivan. The Chrysler Voyager, available new only to fleet buyers, was introduced in the 2020 model year and shares the same platform as the Pacifica. Side ratings are assigned by the Institute based on a test conducted by Fiat Chrysler.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1613
B-pillar to longitudinal centerline of driver's seat (cm) -19.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1613
Head HIC-15 237
Neck
Tension (kN) 1.3
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 20
Lateral force (kN) 1.2
Torso
Maximum deflection (mm) 32
Average deflection (mm) 27
Maximum deflection rate (m/s) 2.61
Maximum viscous criterion (m/s) 0.35
Pelvis
Iliac force (kN) 1.2
Acetabulum force (kN) 1.5
Combined force (kN) 2.7
Left femur
L-M force (kN) 1.0
L-M moment (Nm) 150
A-P moment (Nm) 27

Passenger injury measures

Test ID VTS1613
Head HIC-15 55
Neck
Tension (kN) 0.2
Compression (kN) 0.6
Shoulder
Lateral deflection (mm) 25
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 30
Average deflection (mm) 16
Maximum deflection rate (m/s) 2.85
Maximum viscous criterion (m/s) 0.32
Pelvis
Iliac force (kN) 1.8
Acetabulum force (kN) 2.8
Combined force (kN) 3.8
Left femur
L-M force (kN) 0.5
L-M moment (Nm) 98
A-P moment (Nm) 41

About the original side crash test

Roof strength

Rating applies to 2020-23 models

Tested vehicle: 2017 Chrysler Pacifica Touring

Ratings apply to the Chrysler Pacifica (tested) and the structurally similar Chrysler Voyager.

Overall evaluation
Curb weight4,378 lbs
Peak force20,056 lbs
Strength-to-weight ratio4.58

About the roof strength test

Head restraints & seats

Seat type: Power cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power cloth seat
Geometry
Backset (mm) 12
Distance below top of head (mm) 14
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 10.8
Head contact time (ms) 49
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 290

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Trim level(s)

  • L trim
  • LX trim
  • LXI trim
Low-beam headlight typeHalogen reflector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

Technical measurements for this test
Trim level(s)
  • L trim
  • LX trim
  • LXI trim
Low-beam headlight type Halogen reflector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2020-24 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 68.7 m None
Straightaway left edge 37.0 m None
250m radius right curve, right edge 39.6 m None
250m radius left curve, left edge 37.5 m None
150m radius right curve, right edge 36.1 m None
150m radius left curve, left edge 34.7 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 117.4 m
Straightaway left edge 79.3 m
250m radius right curve, right edge 47.8 m
250m radius left curve, left edge 48.9 m
150m radius right curve, right edge 41.0 m
150m radius left curve, left edge 40.9 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Optional Full-Speed Forward Collision Warning Plus

Package name

  • Optional SafetyTec

Overall evaluation

Applies to 2021-22 models

Superior
Superior
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Front crash prevention: pedestrian (day)

Ratings are given for 2 different systems available on this vehicle.

System details

  • optional Pedestrian Emergency Braking

Overall evaluation

This rating applies to 2021 models built after September 2021 of the following trim lines: L trim, LX trim, LXI trim

Advanced
Advanced
with optional equipment

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 4 mph.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Parallel adult

  • In the 25 mph test, impact speed was reduced by 21 mph.
  • In the 37 mph test, impact speed was reduced by 18 mph. A warning was issued 1.5 seconds before impact.

System details

  • optional Pedestrian/Cyclist Emergency Braking

Overall evaluation

This rating applies to 2021 models built before October 2021 of the following trim lines: L trim, LX trim, LXI trim

Basic
Basic
with optional equipment

Crossing child

  • In the 12 mph test, impact speed was reduced by 9 mph.
  • In the 25 mph test, impact speed was reduced by 1 mph.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 23 mph.

Parallel adult

  • In the 25 mph test, impact speed was reduced by 19 mph.
  • In the 37 mph test, impact speed was reduced by 16 mph. A warning was issued 1.5 seconds before impact.

About the pedestrian front crash prevention test

Child seat anchors

Rating applies to 2021-24 models

Overall evaluation
Vehicle trimTouring L
Seat type leather

This vehicle has 3 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor, a single lower anchor and the ability to borrow the second anchor from another position.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Overall evaluation
Vehicle trimTouring L
Seat type leather
1 3 6 4 5
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
3
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
4
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
5
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
6
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
1 dedicated anchor and 1 that can be borrowed from seat 5
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 20
Clearance angle (degrees) 77
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 23
Clearance angle (degrees) 72
Tether anchor
Location Bottom seatback
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 17
Clearance angle (degrees) 79
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 23
Clearance angle (degrees) 67
Tether anchor
Location Bottom seatback
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 31

6

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 26
Clearance angle (degrees) 73
Lower anchor B
Lower latch is shared for this seat position
Tether anchor
Location Bottom seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 32

5

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 26
Clearance angle (degrees) 62
Lower anchor B
No lower latch for this seat position

Seat position 33

4

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 19
Clearance angle (degrees) 66
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 16
Clearance angle (degrees) 74
Tether anchor
Location Bottom seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
