Top Safety Pick +Top Safety Pick criteria

2021 Genesis G90

large luxury car / 4-door sedan

2021 Genesis G90 4-door sedan

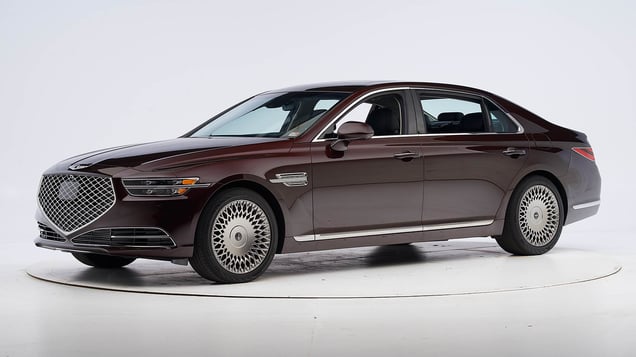

2020 Genesis G90 shown

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Standard system
Superior
Front crash prevention: pedestrian (day)
Standard system
Advanced

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Standard blind spot detection
  • Standard lane departure warning & prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2017-22 models

Tested vehicle: 2017 Genesis G90 3.3T Premium 4-door

The Genesis G90 was introduced in the 2017 model year as the flagship sedan of the new luxury division created by Hyundai named "Genesis."

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1629
Lower occupant compartment
Lower hinge pillar max (cm) 7
Footrest (cm) 9
Left toepan (cm) 5
Brake pedal (cm) 2
Parking brake (cm)
Rocker panel lateral average (cm) 0
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 3
Upper dash (cm) 3
Lower instrument panel (cm) 4

Driver injury measures

Test ID CEN1629
Head
HIC-15 69
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 7
Maximum Nij 0.15
Chest maximum compression (mm) 20
Femur (kN)
Left 1.0
Right 0.7
Knee displacement (mm)
Left 1
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.36
Right 0.34
Tibia axial force (kN)
Left 2.7
Right 1.5
Foot acceleration (g)
Left 56
Right 44

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2017-22 models

Tested vehicle: 2017 Genesis G90 3.3T Premium 4-door

The Genesis G90 was introduced in the 2017 model year as the flagship sedan of the new luxury division created by Hyundai named "Genesis." Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Hyundai.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP1716
Lower occupant compartment
Lower hinge pillar max (cm) 10
Footrest (cm) 16
Right toepan (cm) 10
Center toepan (cm) 2
Rocker panel lateral average (cm) 0
Upper occupant compartment
Center dash (cm) 6
Upper hinge pillar max (cm) 5
Upper dash (cm) 9
Right lower dash (cm) 14

Passenger injury measures

Test ID VTP1716
Head
HIC-15 63
Peak gs at hard contact no contact
Neck
Tension (kN) 0.5
Extension bending moment (Nm) 6
Maximum Nij 0.11
Chest maximum compression (mm) 19
Femur (kN)
Left 0.1
Right 1.0
Knee displacement (mm)
Left 1
Right 3
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.20
Right 0.22
Tibia axial force (kN)
Left 0.4
Right 0.7
Foot acceleration (g)
Left 32
Right 50

Driver injury measures

Test ID VTP1716
Head
HIC-15 58
Peak gs at hard contact no contact
Neck
Tension (kN) 0.5
Extension bending moment (Nm) 9
Maximum Nij 0.13
Chest maximum compression (mm) 20
Femur (kN)
Left 0.2
Right 0.5
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.39
Right 0.25
Tibia axial force (kN)
Left 0.4
Right 1.0
Foot acceleration (g)
Left 26
Right 31

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2017-22 models

Tested vehicle: 2017 Genesis G90 5.0 Ultimate 4-door

The Genesis G90 was introduced in the 2017 model year as the flagship sedan of the new luxury division created by Hyundai named "Genesis." Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Hyundai.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1616
Footwell intrusion
Footrest (cm) 2
Left (cm) 4
Center (cm) 8
Right (cm) 6
Brake pedal (cm) 4
Instrument panel rearward movement
Left (cm) 1
Right (cm) 1
Steering column movement
Upward (cm) -6
Rearward (cm) -5
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1616
Head
HIC-15 103
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 7
Maximum Nij 0.28
Chest maximum compression (mm) 30
Legs
Femur force - left (kN) 0.4
Femur force - right (kN) 0.7
Knee displacement - left (mm) 1
Knee displacement - right (mm) 1
Maximum tibia index - left 0.23
Maximum tibia index - right 0.42
Tibia axial force - left (kN) 1.5
Tibia axial force - right (kN) 2.8
Foot acceleration (g)
Left 41
Right 85

About the original moderate overlap front test

Side: original test

Rating applies to 2017-22 models

Tested vehicle: 2017 Genesis G90 5.0 Ultimate 4-door

The Genesis G90 was introduced in the 2017 model year as the flagship sedan of the new luxury division created by Hyundai named "Genesis." Side ratings are assigned by the Institute based on a test conducted by Hyundai.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1614
B-pillar to longitudinal centerline of driver's seat (cm) -18.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1614
Head HIC-15 79
Neck
Tension (kN) 0.9
Compression (kN) 0.5
Shoulder
Lateral deflection (mm) 34
Lateral force (kN) 1.9
Torso
Maximum deflection (mm) 30
Average deflection (mm) 28
Maximum deflection rate (m/s) 3.94
Maximum viscous criterion (m/s) 0.52
Pelvis
Iliac force (kN) 1.5
Acetabulum force (kN) 2.4
Combined force (kN) 3.9
Left femur
L-M force (kN) 0.1
L-M moment (Nm) 69
A-P moment (Nm) 49

Passenger injury measures

Test ID VTS1614
Head HIC-15 47
Neck
Tension (kN) 0.4
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 9
Lateral force (kN) 0.7
Torso
Maximum deflection (mm) 12
Average deflection (mm) 10
Maximum deflection rate (m/s) 1.00
Maximum viscous criterion (m/s) 0.04
Pelvis
Iliac force (kN) 0.2
Acetabulum force (kN) 0.8
Combined force (kN) 0.9
Left femur
L-M force (kN) 0.5
L-M moment (Nm) 24
A-P moment (Nm) -11

About the original side crash test

Roof strength

Rating applies to 2017-22 models

Tested vehicle: 2017 Genesis G90 3.3T Premium 4-door

Overall evaluation
Curb weight4,694 lbs
Peak force23,044 lbs
Strength-to-weight ratio4.91

About the roof strength test

Head restraints & seats

Seat type: Power leather seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power leather seat
Geometry
Backset (mm) 0
Distance below top of head (mm) -16
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 11.6
Head contact time (ms) 52
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 351

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Trim level(s)

  • All trims
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual right and gradual left curves and fair on the sharp right and sharp left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on both left curves.

Technical measurements for this test
Trim level(s)
  • All trims
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2020-22 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 127.2 m None
Straightaway left edge 77.3 m None
250m radius right curve, right edge 74.3 m None
250m radius left curve, left edge 69.3 m None
150m radius right curve, right edge 60.5 m None
150m radius left curve, left edge 58.7 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 194.6 m
Straightaway left edge 155.1 m
250m radius right curve, right edge 79.9 m
250m radius left curve, left edge 75.3 m
150m radius right curve, right edge 62.7 m
150m radius left curve, left edge 60.9 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Standard Forward Collision-Avoidance Assist with Pedestrian Detection

Overall evaluation

Applies to 2019-22 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Front crash prevention: pedestrian (day)

System details

  • standard Forward Collisioin-Avoidance Assist with Pedestrian Detection

Overall evaluation

This rating applies to all 2020-22 models

Advanced
Advanced

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 19 mph.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 23 mph.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 32 mph. A warning was issued 1.6 seconds before impact.

About the pedestrian front crash prevention test

Child seat anchors

Rating applies to 2017-22 models

Overall evaluation
Vehicle trim3.3T Premium
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trim3.3T Premium
Seat type leather
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 4-6
Force (lbs) 29
Clearance angle (degrees) 75
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 15
Clearance angle (degrees) 87
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 14
Clearance angle (degrees) 88
Lower anchor B
Open access rated No
Depth (cm) 4-6
Force (lbs) 23
Clearance angle (degrees) 67
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
