Top Safety Pick +

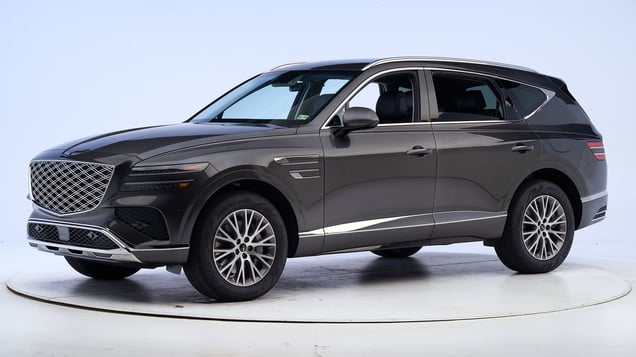

2025 Genesis GV80

midsize luxury SUV / 4-door SUV

Crashworthiness

Rating overview
Evaluation criteria	Rating
Small overlap front
Moderate overlap front: updated test
Side: updated test

Crash avoidance & mitigation

Evaluation criteria	Rating
Headlights
Front crash prevention: vehicle-to-vehicle 2.0
Standard system
Front crash prevention: pedestrian
Standard system

Seat belts & child restraints

Evaluation criteria	Rating
Seat belt reminders
LATCH ease of use

Other available safety features

Standard blind spot detection
Standard lane departure warning & prevention
Standard rear automatic braking

Key

Good
Acceptable
Marginal
Poor

Small overlap front

The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.

Driver-side

Rating applies to 2021-25 models

Tested vehicle: 2021 Genesis GV80 2.5T 4-door 4wd

The Genesis GV80 was introduced in the 2021 model year as the first SUV in the Genesis lineup.

Evaluation criteria	Rating
Overall driver-side evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The driver's space was maintained very well, and risk of injuries to the dummy's legs and feet was low.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CEN2101
Lower occupant compartment
Lower hinge pillar max (cm)	1
Footrest (cm)	7
Left toepan (cm)	4
Brake pedal (cm)	3
Parking brake (cm)
Rocker panel lateral average (cm)	0
Upper occupant compartment
Steering column	0
Upper hinge pillar max (cm)	1
Upper dash (cm)	1
Lower instrument panel (cm)	2

Evaluation criteria	Measurement
Test ID	CEN2101
Head
HIC-15	247
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.0
Extension bending moment (Nm)	14
Maximum Nij	0.23
Chest maximum compression (mm)	27
Femur (kN)
Left	1.1
Right	1.0
Knee displacement (mm)
Left	3
Right	2
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.72
Right	0.40
Tibia axial force (kN)
Left	2.8
Right	2.7
Foot acceleration (g)
Left	115
Right	58

Passenger-side

Rating applies to 2021-25 models

Tested vehicle: 2021 Genesis GV80 2.5T

The Genesis GV80 was introduced in the 2021 model year as the first SUV in the Genesis lineup. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2021 GV80 conducted by Hyundai.

Evaluation criteria	Rating
Overall passenger-side evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTP2102
Lower occupant compartment
Lower hinge pillar max (cm)	1
Footrest (cm)	6
Right toepan (cm)	5
Center toepan (cm)	2
Rocker panel lateral average (cm)	0
Upper occupant compartment
Center dash (cm)	1
Upper hinge pillar max (cm)	1
Upper dash (cm)	1
Right lower dash (cm)	3

Evaluation criteria	Measurement
Test ID	VTP2102
Head
HIC-15	184
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.3
Extension bending moment (Nm)	9
Maximum Nij	0.19
Chest maximum compression (mm)	22
Femur (kN)
Left	0.5
Right	1.2
Knee displacement (mm)
Left	0
Right	0
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.30
Right	0.38
Tibia axial force (kN)
Left	2.9
Right	3.6
Foot acceleration (g)
Left	52
Right	83

Evaluation criteria	Measurement
Test ID	VTP2102
Head
HIC-15	84
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.7
Extension bending moment (Nm)	9
Maximum Nij	0.17
Chest maximum compression (mm)	29
Femur (kN)
Left	0.7
Right	0.6
Knee displacement (mm)
Left	1
Right	1
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.26
Right	0.35
Tibia axial force (kN)
Left	0.2
Right	0.2
Foot acceleration (g)
Left	44
Right	54

About the small overlap front test

Moderate overlap front: updated test

Rating applies to 2024-25 models built after August 2023

Tested vehicle: 2024 Genesis GV80 2.5T Advanced 4-door 4wd

The Genesis GV80 was introduced in the 2021 model year as the first SUV in the Genesis lineup. Beginning with 2024 models built after August 2023, improvements were made to the rear seat belts to improve rear occupant protection in moderate overlap front crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Thigh/hip
Leg/foot
Driver restraints and dummy kinematics
Rear passenger injury measures
Head/neck
Chest
Thigh
Rear passenger restraints and dummy kinematics

View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

The rear passenger dummy's head remained a safe distance from the front seatback.

Rear passenger dummy injury values indicate a low risk of injury to the head or neck and chest. During the crash, the shoulder belt remained in an ideal position on the dummy’s chest.

The rear passenger dummy's lap belt remained in the ideal position on the pelvis.

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CEF2403
Footwell intrusion
Footrest (cm)	1
Left (cm)	1
Center (cm)	2
Right (cm)	1
Brake pedal (cm)	2
Instrument panel rearward movement
Left (cm)	0
Right (cm)	0
Steering column movement
Upward (cm)	-1
Rearward (cm)	-5
A-pillar rearward movement (cm)	0

Evaluation criteria	Measurement
Test ID	CEF2403
Head
HIC-15	199
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.1
Extension bending moment (Nm)	9
Maximum Nij	0.23
Chest maximum compression (mm)	27
Femur (kN)
Left	0.6
Right	0.9
Knee displacement (mm)
Left	1
Right	1
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.30
Right	0.29
Tibia axial force (kN)
Left	1.7
Right	1.8
Foot acceleration (g)
Left	48
Right	56

Test ID	CEF2403
Head
HIC-15 for head contact during forward excursion	no contact
Peak gs at hard contact	no contact
Neck
Tension (kN)	2.0
Compression (kN)	0.0
Maximum Nij for head contact during forward excursion	no contact
Chest
Chest index	33
Shoulder belt tension (kN)	4.9
Thigh (kN)
Left femur compression	0.2
Right femur compression	0.2

About the moderate overlap front test

February 2024 adjustment to rating criteria

Side: updated test

Rating applies to 2024-25 models

Tested vehicle: 2024 Genesis GV80 2.5T 4-door 4wd

The Genesis GV80 was introduced in the 2021 model year as the first SUV in the Genesis lineup. Beginning with 2024 models, modifications were made to the rear side thorax airbag to improve occupant protection in side impact crashes. Side 2.0 ratings are assigned by the Institute based on a test of a 2024 GV80 conducted by Hyundai.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTS2318
B-pillar to longitudinal centerline of driver's seat (cm)	-22.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Evaluation criteria	Measurement
Test ID	VTS2318
Head
HIC-15	67
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.8
Compression (kN)	-0.2
Shoulder
Lateral deflection (mm)	10
Lateral force (kN)	1.0
Torso
Maximum deflection (mm)	19
Average deflection (mm)	16
Maximum deflection rate (m/s)	3.70
Maximum viscous criterion (m/s)	0.24
Pelvis
Combined force (kN)	3.0

Evaluation criteria	Measurement
Test ID	VTS2318
Head
HIC-15	49
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.4
Compression (kN)	-0.1
Shoulder
Lateral deflection (mm)	14
Lateral force (kN)	1.2
Torso
Maximum deflection (mm)	17
Average deflection (mm)	14
Maximum deflection rate (m/s)	1.20
Maximum viscous criterion (m/s)	0.07
Pelvis
Combined force (kN)	4.1

About the side crash test

Headlights

Trim level(s)

All trims

Evaluation criteria	Rating
Low-beam headlight type	LED projector
High-beam headlight type	LED projector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on both right curves and fair on both left curves.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was good on the gradual right curve and fair on the sharp right and both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on both right curves.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	All trims
Low-beam headlight type	LED projector
High-beam headlight type	LED projector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating Applies to 2025 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	98.6 m	None
Straightaway left edge	69.0 m	None
250m radius right curve, right edge	69.6 m	None
250m radius left curve, left edge	64.1 m	None
150m radius right curve, right edge	56.5 m	None
150m radius left curve, left edge	52.0 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	171.6 m
Straightaway left edge	114.5 m
250m radius right curve, right edge	78.9 m
250m radius left curve, left edge	73.5 m
150m radius right curve, right edge	60.2 m
150m radius left curve, left edge	57.4 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle 2.0

Rating applies to all 2025 models

System details

standard Forward Collision-Avoidance Assist

Overall evaluation

Passenger car target

Test run	Speed reduction	Timely warning?
31 mph/target centered	Collision avoided
31 mph/target off-center	Collision avoided
37 mph/target centered	Collision avoided
37 mph/target off-center	Collision avoided
43 mph/target centered	Collision avoided
43 mph/target off-center	Collision avoided

Motorcycle target

Test run	Speed reduction	Timely warning?
31 mph/target centered	Collision avoided
31 mph/target off-center	Collision avoided
37 mph/target centered	Collision avoided
37 mph/target off-center	Collision avoided
43 mph/target centered	Collision avoided
43 mph/target off-center	41 mph

Semitrailer

Only warning is tested with the semitrailer.

Test run	Timely warning?
31 mph/target centered
37 mph/target centered
43 mph/target centered

About the front crash prevention test

Front crash prevention: pedestrian

Rating applies to all 2025 models

System details

standard Forward Collision-Avoidance Assist with Pedestrian Detection

Evaluation criteria	Rating
Overall evaluation
Includes high-beam assist credit

Crossing child — day

In the 12 mph test, this vehicle avoided a collision.
In the 25 mph test, impact speed was reduced by 21 mph.

Crossing adult — night

In the 12 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.

Parallel adult — night

In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
In the 37 mph test, this vehicle avoided a collision when using its high beams and a warning was issued 1.7 seconds before impact. When using its low beams, impact speed was reduced by 34 mph and a warning was issued 1.3 seconds before impact.

About the pedestrian front crash prevention test

Seat belt reminders

Rating applies to 2024-25 models

Evaluation criteria	Rating
Overall evaluation
Front row
Unbelted occupant alert (audible & visual)
Initiation time
Duration	Long enough (90+ seconds)
Volume
Audio frequency
Second row
Startup status alert (visual)
Initiation time
Duration at least 60 seconds
Belt disengaged alert (audible & visual)
Initiation time
Duration at least 30 seconds
Volume
Audio frequency

Technical measurements for this test

About the seat belt reminder evaluation

Child seat anchors

Rating applies to 2021-25 models

Evaluation criteria	Rating
Overall evaluation
Vehicle trim	3.5T
Seat type	leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Evaluation criteria	Rating
Overall evaluation
Vehicle trim	3.5T
Seat type	leather

Rating icon	Rating
G	Good
A	Acceptable
M	Marginal
P	Poor
	Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol	Tether anchor
lower anchor symbol	Lower anchors
shared lower achors symbol	Lower anchor(s) can be borrowed from adjacent positions(s)
	No hardware available

Details by seating position

Position	Rating
1
1	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
2
2	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	none available
3
3	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors

Technical measurements for this test

Lower anchor A
Open access rated	No
Depth (cm)	2-4
Force (lbs)	23
Clearance angle (degrees)	81
Lower anchor B
Open access rated	No
Depth (cm)	2-4
Force (lbs)	20
Clearance angle (degrees)	84
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Lower anchor A
Open access rated	No
Depth (cm)	0-2
Force (lbs)	17
Clearance angle (degrees)	83
Lower anchor B
Open access rated	No
Depth (cm)	0-2
Force (lbs)	16
Clearance angle (degrees)	87
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

About the child seat anchor evaluation

Background cabin sound pressure level at 24 km/h	49 dB
Audible signal sound pressure level at 24 km/h	64 dB
Difference between background and signal	15.2 dB
Background cabin sound pressure level at 40 km/h	53 dB
Audible signal sound pressure level at 40 km/h	65 dB
Difference between background and signal	12.4 dB
Dominant audio frequency	520 Hz
