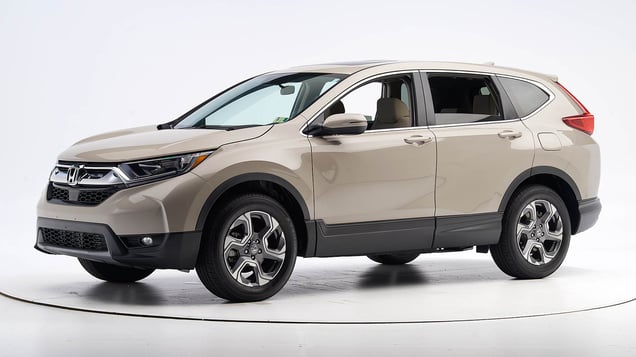

2019 Honda CR-V
small SUV / 4-door SUV
Award applies only to vehicles with optional front crash prevention and specific headlights
Small overlap front: driver-side
Rating applies to 2017-22 models
Tested vehicle: 2017 Honda CR-V LX 4-door 4wd
The Honda CR-V was redesigned for the 2017 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Honda.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTN1702 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 6 |
| Footrest (cm) | 9 |
| Left toepan (cm) | 13 |
| Brake pedal (cm) | 10 |
| Parking brake (cm) | |
| Rocker panel lateral average (cm) | 4 |
| Upper occupant compartment | |
| Steering column | 1 |
| Upper hinge pillar max (cm) | 5 |
| Upper dash (cm) | 4 |
| Lower instrument panel (cm) | 4 |
Driver injury measures
| Test ID | VTN1702 |
|---|---|
| Head | |
| HIC-15 | 302 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 9 |
| Maximum Nij | 0.25 |
| Chest maximum compression (mm) | 23 |
| Femur (kN) | |
| Left | 0.3 |
| Right | 0.0 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.52 |
| Right | 0.69 |
| Tibia axial force (kN) | |
| Left | 1.2 |
| Right | 2.5 |
| Foot acceleration (g) | |
| Left | 53 |
| Right | 64 |
Small overlap front: passenger-side
Rating applies to 2017-22 models
Tested vehicle: 2017 Honda CR-V EX 4-door 4wd
The Honda CR-V was redesigned for the 2017 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Honda.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on passenger side
| Test ID | VTP1714 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 5 |
| Footrest (cm) | 6 |
| Right toepan (cm) | 4 |
| Center toepan (cm) | 4 |
| Rocker panel lateral average (cm) | 1 |
| Upper occupant compartment | |
| Center dash (cm) | 2 |
| Upper hinge pillar max (cm) | 3 |
| Upper dash (cm) | 3 |
| Right lower dash (cm) | 3 |
Passenger injury measures
| Test ID | VTP1714 |
|---|---|
| Head | |
| HIC-15 | 73 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.9 |
| Extension bending moment (Nm) | 12 |
| Maximum Nij | 0.23 |
| Chest maximum compression (mm) | 23 |
| Femur (kN) | |
| Left | 0.9 |
| Right | 0.3 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.35 |
| Right | 0.43 |
| Tibia axial force (kN) | |
| Left | 1.1 |
| Right | 1.0 |
| Foot acceleration (g) | |
| Left | 34 |
| Right | 49 |
Driver injury measures
| Test ID | VTP1714 |
|---|---|
| Head | |
| HIC-15 | 61 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 11 |
| Maximum Nij | 0.19 |
| Chest maximum compression (mm) | 20 |
| Femur (kN) | |
| Left | 0.4 |
| Right | 0.1 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.40 |
| Right | 0.20 |
| Tibia axial force (kN) | |
| Left | 0.8 |
| Right | 0.6 |
| Foot acceleration (g) | |
| Left | 100 |
| Right | 59 |
Moderate overlap front: original test
Rating applies to 2017-22 models
Tested vehicle: 2017 Honda CR-V LX 4-door 4wd
The Honda CR-V was redesigned for the 2017 model year. Two moderate overlap frontal tests of the CR-V were conducted, one by the Institute and the other by Honda. Ratings are based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the Institute's moderate overlap frontal crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well (Institute test car shown).
Dummy movement was well controlled in both tests. In the Institute's test, the dummy's head rebounded against the head restraint and side curtain airbag, as indicated by smeared greasepaint.
Intrusion into the driver's space was minimal in both tests. In Honda's test, all leg and foot injury measures were low. In the Institute's test, forces on the right lower leg were just high enough to indicate the possibility of injuries.
Measures of occupant compartment intrusion on driver side
| Test ID | VTF1702 | CEF1702 |
|---|---|---|
| Footwell intrusion | ||
| Footrest (cm) | 5 | 5 |
| Left (cm) | 9 | 8 |
| Center (cm) | 9 | 6 |
| Right (cm) | 9 | 6 |
| Brake pedal (cm) | 4 | 5 |
| Instrument panel rearward movement | ||
| Left (cm) | 1 | 1 |
| Right (cm) | 1 | 0 |
| Steering column movement | ||
| Upward (cm) | 1 | 1 |
| Rearward (cm) | -1 | -2 |
| A-pillar rearward movement (cm) | 0 | 0 |
Driver injury measures
| Test ID | VTF1702 | CEF1702 |
|---|---|---|
| Head | ||
| HIC-15 | 192 | 225 |
| Peak gs at hard contact | no contact | no contact |
| Neck | ||
| Tension (kN) | 1.2 | 1.2 |
| Extension bending moment (Nm) | 9 | 6 |
| Maximum Nij | 0.22 | 0.24 |
| Chest maximum compression (mm) | 26 | 21 |
| Legs | ||
| Femur force - left (kN) | 0.5 | 0.2 |
| Femur force - right (kN) | 0.3 | 0.3 |
| Knee displacement - left (mm) | 0 | 0 |
| Knee displacement - right (mm) | 0 | 0 |
| Maximum tibia index - left | 0.31 | 0.27 |
| Maximum tibia index - right | 0.64 | 0.84 |
| Tibia axial force - left (kN) | 1.5 | 2.2 |
| Tibia axial force - right (kN) | 1.4 | 1.5 |
| Foot acceleration (g) | ||
| Left | 60 | 46 |
| Right | 62 | 52 |
Side: original test
Rating applies to 2017-22 models
Tested vehicle: 2017 Honda CR-V LX 4-door 4wd
The Honda CR-V was redesigned for the 2017 model year. Side ratings are assigned by the Institute based on a test conducted by Honda.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1702 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -18.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS1702 |
|---|---|
| Head HIC-15 | 201 |
| Neck | |
| Tension (kN) | 1.2 |
| Compression (kN) | 0.4 |
| Shoulder | |
| Lateral deflection (mm) | 50 |
| Lateral force (kN) | 1.5 |
| Torso | |
| Maximum deflection (mm) | 35 |
| Average deflection (mm) | 25 |
| Maximum deflection rate (m/s) | 4.22 |
| Maximum viscous criterion (m/s) | 0.41 |
| Pelvis | |
| Iliac force (kN) | 1.5 |
| Acetabulum force (kN) | 1.1 |
| Combined force (kN) | 2.5 |
| Left femur | |
| L-M force (kN) | 1.1 |
| L-M moment (Nm) | 33 |
| A-P moment (Nm) | 145 |
Passenger injury measures
| Test ID | VTS1702 |
|---|---|
| Head HIC-15 | 61 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.9 |
| Shoulder | |
| Lateral deflection (mm) | 42 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 39 |
| Average deflection (mm) | 30 |
| Maximum deflection rate (m/s) | 3.88 |
| Maximum viscous criterion (m/s) | 0.51 |
| Pelvis | |
| Iliac force (kN) | 0.7 |
| Acetabulum force (kN) | 2.8 |
| Combined force (kN) | 3.2 |
| Left femur | |
| L-M force (kN) | 0.5 |
| L-M moment (Nm) | 22 |
| A-P moment (Nm) | 12 |
Side: updated test
Rating applies to 2017-22 models
Tested vehicle: 2021 Honda CR-V LX 4-door 4wd
The Honda CR-V was redesigned for the 2017 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Rear passenger head protection | |
View of the vehicle just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES2106 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -16.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES2106 |
|---|---|
| Head | |
| HIC-15 | 151 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.3 |
| Compression (kN) | 0.3 |
| Shoulder | |
| Lateral deflection (mm) | 20 |
| Lateral force (kN) | 0.8 |
| Torso | |
| Maximum deflection (mm) | 30 |
| Average deflection (mm) | 27 |
| Maximum deflection rate (m/s) | 2.57 |
| Maximum viscous criterion (m/s) | 0.38 |
| Pelvis | |
| Combined force (kN) | 4.6 |
Passenger injury measures
| Test ID | CES2106 |
|---|---|
| Head | |
| HIC-15 | 352 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.6 |
| Shoulder | |
| Lateral deflection (mm) | 47 |
| Lateral force (kN) | 1.8 |
| Torso | |
| Maximum deflection (mm) | 43 |
| Average deflection (mm) | 39 |
| Maximum deflection rate (m/s) | 4.99 |
| Maximum viscous criterion (m/s) | 0.79 |
| Pelvis | |
| Combined force (kN) | 4.5 |
Roof strength
Rating applies to 2017-22 models
Tested vehicle: 2017 Honda CR-V LX 4-door 4wd
| Overall evaluation | |
|---|---|
| Curb weight | 3,396 lbs |
| Peak force | 18,094 lbs |
| Strength-to-weight ratio | 5.33 |
Head restraints & seats
Seat type: Manual cloth seat
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual cloth seat |
|---|---|
| Geometry | |
| Backset (mm) | 26 |
| Distance below top of head (mm) | 38 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 13.1 |
| Head contact time (ms) | 52 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 267 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Headlights
Ratings are given for 3 different headlight variations available on this vehicle.
Trim level(s)
- Touring trim
| Low-beam headlight type | LED reflector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the sharp right curve, fair on the gradual right and sharp left curves, and inadequate on the gradual left curve.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was good on the gradual right curve, fair on the sharp right and gradual left curves, and inadequate on the sharp left curve.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on both right curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating Applies to 2017-22 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 100.0 m | None |
| Straightaway left edge | 59.8 m | None |
| 250m radius right curve, right edge | 64.1 m | None |
| 250m radius left curve, left edge | 54.2 m | None |
| 150m radius right curve, right edge | 56.9 m | None |
| 150m radius left curve, left edge | 48.5 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 144.4 m |
| Straightaway left edge | 105.1 m |
| 250m radius right curve, right edge | 75.0 m |
| 250m radius left curve, left edge | 68.8 m |
| 150m radius right curve, right edge | 61.6 m |
| 150m radius left curve, left edge | 54.9 m |
Trim level(s)
- EX trim
- EX-L trim
| Low-beam headlight type | Halogen projector |
|---|---|
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was fair on both right curves and inadequate on both left curves.
The low beams created some glare.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | Halogen projector |
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating Applies to 2017-22 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 90.9 m | 21.2% |
| Straightaway left edge | 59.3 m | 21.2% |
| 250m radius right curve, right edge | 55.0 m | None |
| 250m radius left curve, left edge | 47.9 m | None |
| 150m radius right curve, right edge | 45.5 m | None |
| 150m radius left curve, left edge | 40.5 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 155.8 m |
| Straightaway left edge | 131.9 m |
| 250m radius right curve, right edge | 66.2 m |
| 250m radius left curve, left edge | 64.6 m |
| 150m radius right curve, right edge | 49.5 m |
| 150m radius left curve, left edge | 46.8 m |
Trim level(s)
- LX trim
| Low-beam headlight type | Halogen projector |
|---|---|
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was fair on both right curves and inadequate on both left curves.
The low beams created some glare.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | Halogen projector |
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2017-19 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 90.9 m | 21.2% |
| Straightaway left edge | 59.3 m | 21.2% |
| 250m radius right curve, right edge | 55.0 m | None |
| 250m radius left curve, left edge | 47.9 m | None |
| 150m radius right curve, right edge | 45.5 m | None |
| 150m radius left curve, left edge | 40.5 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 155.8 m |
| Straightaway left edge | 131.9 m |
| 250m radius right curve, right edge | 66.2 m |
| 250m radius left curve, left edge | 64.6 m |
| 150m radius right curve, right edge | 49.5 m |
| 150m radius left curve, left edge | 46.8 m |
Front crash prevention: vehicle-to-vehicle
Front crash prevention: pedestrian (day)
Child seat anchors
Rating applies to 2017-22 models
| Overall evaluation | |
| Vehicle trim | LX |
| Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor, a single lower anchor and the ability to borrow the second anchor from another position.
Note: When anchors are borrowed, they aren't available to use in their designated positions.
| Overall evaluation | |
| Vehicle trim | LX |
| Seat type | cloth |
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| 1 | |
|---|---|
| Tether anchor | |
| easy-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| too much force needed to attach | |
| easy to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| 1 dedicated anchor and 1 that can be borrowed from seat 3 | |
| not too deep in seat | |
| too much force needed to attach | |
| easy to maneuver around anchors | |
| 3 | |
| Tether anchor | |
| easy-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| too much force needed to attach | |
| easy to maneuver around anchors |
Seat position 21
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | could not measure |
| Clearance angle (degrees) | 66 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | could not measure |
| Clearance angle (degrees) | 67 |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
| Lower anchor A | |
|---|---|
| Lower latch is shared for this seat position | |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | could not measure |
| Clearance angle (degrees) | 56 |
| Tether anchor | |
| Location | Roof |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | could not measure |
| Clearance angle (degrees) | 62 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | could not measure |
| Clearance angle (degrees) | 66 |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
