Top Safety Pick +Top Safety Pick criteria

2020 Honda Insight

small car / 4-door sedan

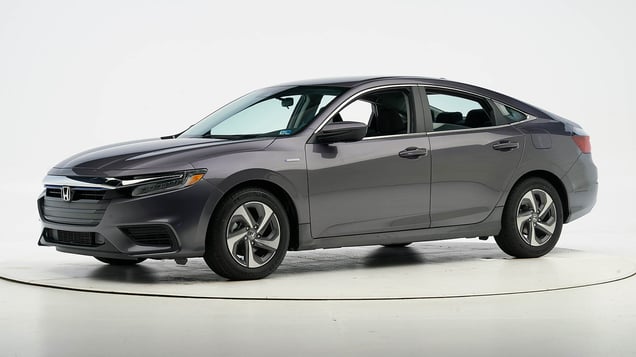

2020 Honda Insight 4-door sedan

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Standard system
Superior
Front crash prevention: pedestrian (day)
Standard system
Superior

Seat belts & child restraints

LATCH ease of use
+

Other available safety features

  • Standard lane departure warning & prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2019-22 models

Tested vehicle: 2019 Honda Insight Touring 4-door

The Honda Insight was re-introduced in the 2019 model year after a four-year absence from the market. The Insight is derived from the Honda Civic. Driver-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Honda.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTN1806
Lower occupant compartment
Lower hinge pillar max (cm) 2
Footrest (cm) 3
Left toepan (cm) 4
Brake pedal (cm) 3
Parking brake (cm)
Rocker panel lateral average (cm) 1
Upper occupant compartment
Steering column -1
Upper hinge pillar max (cm) 1
Upper dash (cm) 1
Lower instrument panel (cm) 1

Driver injury measures

Test ID VTN1806
Head
HIC-15 94
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 15
Maximum Nij 0.21
Chest maximum compression (mm) 23
Femur (kN)
Left 0.8
Right 0.9
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.71
Right 0.55
Tibia axial force (kN)
Left 3.1
Right 2.2
Foot acceleration (g)
Left 104
Right 69

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2019-22 models

Tested vehicle: 2019 Honda Insight Touring 4-door

The Honda Insight was re-introduced in the 2019 model year after a four-year absence from the market. The Insight is derived from the Honda Civic. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Honda.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP1816
Lower occupant compartment
Lower hinge pillar max (cm) 5
Footrest (cm) 7
Right toepan (cm) 6
Center toepan (cm) 3
Rocker panel lateral average (cm) 2
Upper occupant compartment
Center dash (cm) 2
Upper hinge pillar max (cm) 3
Upper dash (cm) 4
Right lower dash (cm) 5

Passenger injury measures

Test ID VTP1816
Head
HIC-15 178
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 14
Maximum Nij 0.16
Chest maximum compression (mm) 20
Femur (kN)
Left 0.6
Right 1.3
Knee displacement (mm)
Left 1
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.35
Right 0.50
Tibia axial force (kN)
Left 1.4
Right 1.8
Foot acceleration (g)
Left 52
Right 65

Driver injury measures

Test ID VTP1816
Head
HIC-15 79
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 11
Maximum Nij 0.20
Chest maximum compression (mm) 21
Femur (kN)
Left 0.1
Right 0.5
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.38
Right 0.37
Tibia axial force (kN)
Left 0.5
Right 1.3
Foot acceleration (g)
Left 62
Right 77

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2019-22 models

Tested vehicle: 2019 Honda Insight Touring 4-door

The Honda Insight was re-introduced in the 2019 model year after a four-year absence from the market. The Insight is derived from the Honda Civic. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Honda.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1808
Footwell intrusion
Footrest (cm) 8
Left (cm) 11
Center (cm) 9
Right (cm) 11
Brake pedal (cm) 4
Instrument panel rearward movement
Left (cm) 1
Right (cm) 1
Steering column movement
Upward (cm) -1
Rearward (cm) 1
A-pillar rearward movement (cm) -1

Driver injury measures

Test ID VTF1808
Head
HIC-15 134
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 17
Maximum Nij 0.20
Chest maximum compression (mm) 25
Legs
Femur force - left (kN) 0.7
Femur force - right (kN) 0.4
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.48
Maximum tibia index - right 0.50
Tibia axial force - left (kN) 1.9
Tibia axial force - right (kN) 1.7
Foot acceleration (g)
Left 63
Right 82

About the original moderate overlap front test

Side: original test

Rating applies to 2019-22 models

Tested vehicle: 2019 Honda Insight EX 4-door

The Honda Insight was re-introduced in the 2019 model year after a four-year absence from the market. The Insight is derived from the Honda Civic. Side ratings are assigned by the Institute based on a test conducted by Honda.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1807
B-pillar to longitudinal centerline of driver's seat (cm) -18.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1807
Head HIC-15 330
Neck
Tension (kN) 1.0
Compression (kN) 0.1
Shoulder
Lateral deflection (mm) 45
Lateral force (kN) 1.4
Torso
Maximum deflection (mm) 36
Average deflection (mm) 32
Maximum deflection rate (m/s) 3.06
Maximum viscous criterion (m/s) 0.38
Pelvis
Iliac force (kN) 2.2
Acetabulum force (kN) 1.9
Combined force (kN) 3.9
Left femur
L-M force (kN) 1.3
L-M moment (Nm) 19
A-P moment (Nm) 236

Passenger injury measures

Test ID VTS1807
Head HIC-15 255
Neck
Tension (kN) 0.5
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 36
Lateral force (kN) 1.2
Torso
Maximum deflection (mm) 30
Average deflection (mm) 20
Maximum deflection rate (m/s) 3.88
Maximum viscous criterion (m/s) 0.37
Pelvis
Iliac force (kN) 0.3
Acetabulum force (kN) 0.6
Combined force (kN) 0.9
Left femur
L-M force (kN) 2.2
L-M moment (Nm) 34
A-P moment (Nm) 290

About the original side crash test

Roof strength

Rating applies to 2019-22 models

Tested vehicle: 2016 Honda Civic LX 4-door

Rating applies to both the Civic 4-door sedan (tested) and 4-door hatchback versions and to the structurally similar 2019 and later Insight 4-door sedan.

Overall evaluation
Curb weight2,738 lbs
Peak force15,829 lbs
Strength-to-weight ratio5.78

About the roof strength test

Head restraints & seats

Seat type: Manual cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seat
Geometry
Backset (mm) 31
Distance below top of head (mm) 34
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 13.1
Head contact time (ms) 57
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 180

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Trim level(s)

  • All trims
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual right curve, fair on the sharp right and gradual left curves, and inadequate on the sharp left curve.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on the sharp right curve.

Technical measurements for this test
Trim level(s)
  • All trims
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2019-22 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 107.0 m None
Straightaway left edge 53.1 m None
250m radius right curve, right edge 73.9 m None
250m radius left curve, right edge 52.4 m None
150m radius right curve, right edge 59.8 m None
150m radius left curve, left edge 49.1 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 165.9 m
Straightaway left edge 139.6 m
250m radius right curve, right edge 80.2 m
250m radius left curve, left edge 67.3 m
150m radius right curve, right edge 62.8 m
150m radius left curve, left edge 54.5 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Standard Honda Sensing
  • Standard Collision Mitigation Braking System

Package name

  • Standard Collision Mitigation Braking System

Overall evaluation

Applies to 2019-22 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Front crash prevention: pedestrian (day)

System details

  • standard Collision Mitigation Brake System

Overall evaluation

This rating applies to all 2020-22 models

Superior
Superior

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 31 mph. A warning was issued 2.2 seconds before impact.

About the pedestrian front crash prevention test

Child seat anchors

Rating applies to 2019-22 models

Overall evaluation
+
extra LATCH positions
Vehicle trimLX
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Overall evaluation
+
extra LATCH positions
Vehicle trimLX
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
Can be borrowed from 1 and 3
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 7
Clearance angle (degrees) 88
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 8
Clearance angle (degrees) 86
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
Lower latch is shared for this seat position
Lower anchor B
Lower latch is shared for this seat position
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 11
Clearance angle (degrees) 87
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 6
Clearance angle (degrees) 90
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
