Top Safety PickTop Safety Pick criteria

2024 Hyundai Sonata

midsize car / 4-door sedan

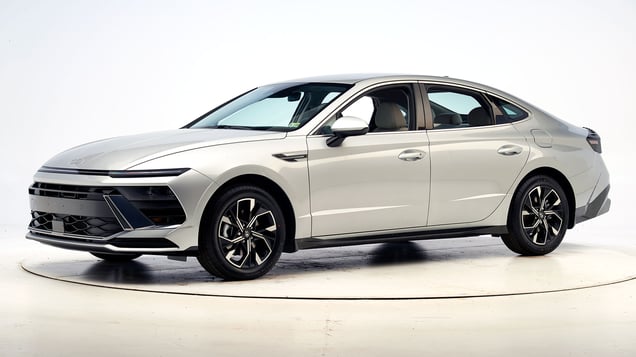

2024 Hyundai Sonata 4-door sedan

Crashworthiness

Rating overview
Small overlap front
Moderate overlap front: original test
Moderate overlap front: updated test
Side: updated test

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle 2.0
Standard system
Front crash prevention: pedestrian
Standard system

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Standard blind spot detection
  • Standard lane departure warning & prevention

Key

  • Good
  • Acceptable
  • Marginal
  • Poor

Small overlap front

The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.

Driver-side

  • Rating applies to 2020-25 models

Tested vehicle: 2020 Hyundai Sonata SE 4-door

The Hyundai Sonata was redesigned for the 2020 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Hyundai.

Overall driver-side evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTN1916
Lower occupant compartment
Lower hinge pillar max (cm) 2
Footrest (cm) 4
Left toepan (cm) 3
Brake pedal (cm) 4
Parking brake (cm)
Rocker panel lateral average (cm) 0
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 2
Upper dash (cm) 2
Lower instrument panel (cm) 2

Driver injury measures

Test ID VTN1916
Head
HIC-15 96
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 15
Maximum Nij 0.16
Chest maximum compression (mm) 26
Femur (kN)
Left 0.7
Right 0.1
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.61
Right 0.45
Tibia axial force (kN)
Left 2.6
Right 0.5
Foot acceleration (g)
Left 50
Right 43

Passenger-side

  • Rating applies to 2020-25 models

Tested vehicle: 2020 Hyundai Sonata SE 4-door

The Hyundai Sonata was redesigned for the 2020 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Hyundai.

Overall passenger-side evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP1934
Lower occupant compartment
Lower hinge pillar max (cm) 3
Footrest (cm) 4
Right toepan (cm) 3
Center toepan (cm) 1
Rocker panel lateral average (cm) 0
Upper occupant compartment
Center dash (cm) 2
Upper hinge pillar max (cm) 2
Upper dash (cm) 2
Right lower dash (cm) 3

Passenger injury measures

Test ID VTP1934
Head
HIC-15 78
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 14
Maximum Nij 0.17
Chest maximum compression (mm) 25
Femur (kN)
Left 0.1
Right 0.7
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.34
Right 0.58
Tibia axial force (kN)
Left 0.5
Right 3.4
Foot acceleration (g)
Left 47
Right 66

Driver injury measures

Test ID VTP1934
Head
HIC-15 57
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 8
Maximum Nij 0.16
Chest maximum compression (mm) 21
Femur (kN)
Left 0.2
Right 0.6
Knee displacement (mm)
Left 1
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.23
Right 0.41
Tibia axial force (kN)
Left 0.4
Right 1.5
Foot acceleration (g)
Left 18
Right 32

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2020-25 models

Tested vehicle: 2020 Hyundai Sonata SEL 4-door

The Hyundai Sonata was redesigned for the 2020 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Hyundai.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1926
Footwell intrusion
Footrest (cm) 3
Left (cm) 4
Center (cm) 5
Right (cm) 1
Brake pedal (cm) 5
Instrument panel rearward movement
Left (cm) 0
Right (cm) -1
Steering column movement
Upward (cm) -1
Rearward (cm) -4
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1926
Head
HIC-15 213
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 9
Maximum Nij 0.19
Chest maximum compression (mm) 27
Legs
Femur force - left (kN) 0.4
Femur force - right (kN) 1.0
Knee displacement - left (mm) 0
Knee displacement - right (mm) 2
Maximum tibia index - left 0.24
Maximum tibia index - right 0.43
Tibia axial force - left (kN) 2.0
Tibia axial force - right (kN) 2.2
Foot acceleration (g)
Left 62
Right 44

About the original moderate overlap front test

Moderate overlap front: updated test

Rating applies to 2023-24 models

Tested vehicle: 2023 Hyundai Sonata SE 4-door

The Hyundai Sonata was redesigned for the 2020 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Thigh/hip
Leg/foot
Driver restraints and dummy kinematics
Rear passenger injury measures
Head/neck
Chest
Thigh
Rear passenger restraints and dummy kinematics

View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

The rear passenger dummy's head remained a safe distance from the front seatback.

Rear passenger dummy injury values indicate a likelihood of injury to the head or neck and chest. During the crash, the shoulder belt remained in an ideal position on the dummy’s chest.

The rear passenger dummy's lap belt moved from the ideal position on the pelvis onto the abdomen, increasing the risk of abdominal injuries.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF2311
Footwell intrusion
Footrest (cm) 3
Left (cm) 5
Center (cm) 7
Right (cm) 2
Brake pedal (cm) 6
Instrument panel rearward movement
Left (cm) -1
Right (cm) -1
Steering column movement
Upward (cm) 0
Rearward (cm) -4
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF2311
Head
HIC-15 254
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 7
Maximum Nij 0.18
Chest maximum compression (mm) 26
Femur (kN)
Left 0.5
Right 1.2
Knee displacement (mm)
Left 1
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.27
Right 0.43
Tibia axial force (kN)
Left 2.9
Right 3.0
Foot acceleration (g)
Left 58
Right 45

Rear passenger injury measures

Test ID CEF2311
Head
HIC-15 for head contact during forward excursion
no contact
Peak gs at hard contact no contact
Neck
Tension (kN) 3.8
Compression (kN) 0.2
Maximum Nij for head contact during forward excursion
no contact
Chest
Chest index 33
Shoulder belt tension (kN) 7.1
Thigh (kN)
Left femur compression 1.4
Right femur compression 0.3

About the moderate overlap front test

February 2024 adjustment to rating criteria

Side: updated test

Rating applies to 2024-25 models

Tested vehicle: 2024 Hyundai Sonata SEL 4-door

The Hyundai Sonata was redesigned for the 2020 model year. Beginning with 2024 models, reinforcements were added to the B-pillar, door sill and beams to improve occupant protection in side impact crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the driver door or adjacent B-pillar.) Side 2.0 ratings are assigned by the Institute based on a test of a 2024 Sonata conducted by Hyundai/Kia.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS2344
B-pillar to longitudinal centerline of driver's seat (cm) -25.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS2344
Head
HIC-15 180
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Compression (kN) -0.4
Shoulder
Lateral deflection (mm) 35
Lateral force (kN) 2.5
Torso
Maximum deflection (mm) 36
Average deflection (mm) 34
Maximum deflection rate (m/s) 6.41
Maximum viscous criterion (m/s) 0.83
Pelvis
Combined force (kN) 3.0

Passenger injury measures

Test ID VTS2344
Head
HIC-15 95
Peak gs at hard contact no contact
Neck
Tension (kN) 0.4
Compression (kN) -0.7
Shoulder
Lateral deflection (mm) 25
Lateral force (kN) 1.4
Torso
Maximum deflection (mm) 26
Average deflection (mm) 14
Maximum deflection rate (m/s) 3.09
Maximum viscous criterion (m/s) 0.32
Pelvis
Combined force (kN) 2.1

About the side crash test

Headlights

Trim level(s)

  • All trims
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual left and both right curves and fair on the sharp left curve.

Technical measurements for this test
Trim level(s)
  • All trims
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2024-25 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 100.5 m None
Straightaway left edge 72.9 m None
250m radius right curve, right edge 73.5 m None
250m radius left curve, left edge 72.6 m None
150m radius right curve, right edge 64.6 m None
150m radius left curve, left edge 61.6 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 171.8 m
Straightaway left edge 131.5 m
250m radius right curve, right edge 81.1 m
250m radius left curve, left edge 78.8 m
150m radius right curve, right edge 66.9 m
150m radius left curve, left edge 63.7 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle 2.0

Rating applies to all 2024-25 models

System details

  • standard Forward Collision-Avoidance Assist

Overall evaluation

Passenger car target

Test runSpeed reductionTimely warning?
31 mph/target centeredCollision avoided
31 mph/target off-centerCollision avoided
37 mph/target centeredCollision avoided
37 mph/target off-centerCollision avoided
43 mph/target centeredCollision avoided
43 mph/target off-centerCollision avoided

Motorcycle target

Test runSpeed reductionTimely warning?
31 mph/target centeredCollision avoided
31 mph/target off-centerCollision avoided
37 mph/target centeredCollision avoided
37 mph/target off-centerCollision avoided
43 mph/target centered9 mph
43 mph/target off-centerAutobrake not tested

Semitrailer

Only warning is tested with the semitrailer.

Test runTimely warning?
31 mph/target centered
37 mph/target centered
43 mph/target centered

About the front crash prevention test

Front crash prevention: pedestrian

Rating applies to all 2024-25 models

System details

  • standard Forward Collision-Avoidance Assist
Overall evaluation
Includes high-beam assist credit

Crossing child — day

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Crossing adult — night

  • In the 12 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.

Parallel adult — night

  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 37 mph test, this vehicle avoided a collision when using its high beams and a warning was issued 1.8 seconds before impact. When using its low beams, this vehicle avoided a collision and a warning was issued 1.4 seconds before impact.

About the pedestrian front crash prevention test

Child seat anchors

Rating applies to 2020-25 models

Overall evaluation
Vehicle trimSE
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimSE
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 22
Clearance angle (degrees) 73
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 14
Clearance angle (degrees) 75
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 28
Clearance angle (degrees) 63
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 21
Clearance angle (degrees) 63
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
