Top Safety Pick +Top Safety Pick criteria

2021 Nissan Murano

midsize SUV / 4-door SUV

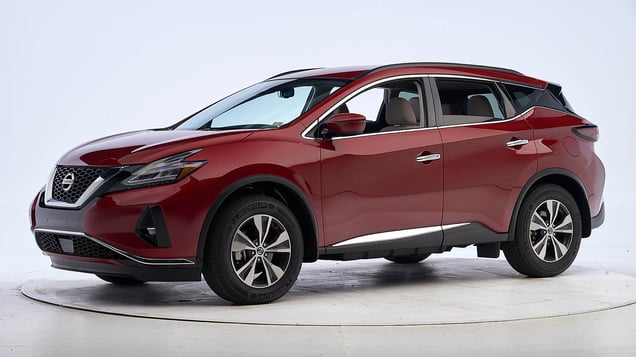

2021 Nissan Murano 4-door SUV

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Moderate overlap front: updated test
Side: original test
Side: updated test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Standard system
Superior
Front crash prevention: pedestrian (day)
Standard system
Superior
Front crash prevention: pedestrian (night)
Standard system
Advanced

Seat belts & child restraints

Seat belt reminders
LATCH ease of use
+

Other available safety features

  • Standard blind spot detection
  • Standard lane departure warning & prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2019-24 models

Tested vehicle: 2019 Nissan Murano SV 4-door 4wd

The Nissan Murano was redesigned for the 2015 model year. Beginning with the 2019 model year, a knee airbag for the front passenger was added, and all of the following airbags were newly designed to improve occupant protection in both moderate overlap and small overlap frontal crashes: driver knee airbag, passenger frontal airbag, and both side curtain airbags.

Driver-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Nissan. Because there were no structural changes, the structure rating of the current model is based on this test and an earlier test of a 2015 model conducted by the Institute.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTN1911 CEN1515
Lower occupant compartment
Lower hinge pillar max (cm) 8 13
Footrest (cm) 5 10
Left toepan (cm) 3 3
Brake pedal (cm) 2 6
Parking brake (cm) 6 11
Rocker panel lateral average (cm) 4 6
Upper occupant compartment
Steering column 1 1
Upper hinge pillar max (cm) 3 7
Upper dash (cm) 5 7
Lower instrument panel (cm) 6 7

Driver injury measures

Test ID VTN1911
Head
HIC-15 89
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 13
Maximum Nij 0.21
Chest maximum compression (mm) 24
Femur (kN)
Left 0.9
Right 0.4
Knee displacement (mm)
Left 1
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.74
Right 0.50
Tibia axial force (kN)
Left 2.0
Right 0.3
Foot acceleration (g)
Left 42
Right 37

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2019-24 models

Tested vehicle: 2019 Nissan Murano SV 4-door 4wd

The Nissan Murano was redesigned for the 2015 model year. Beginning with the 2019 model year, a knee airbag for the front passenger was added, and all of the following airbags were newly designed to improve occupant protection in both moderate overlap and small overlap frontal crashes: passenger frontal airbag, driver knee airbag, and both side curtain airbags.

Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Nissan.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
The dummy’s head contacted the frontal airbag but slid off the right side, leaving the head vulnerable to contact with forward structure. The side curtain airbag deployed and has sufficient forward coverage to protect the head from contact with side structure and outside objects.
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP1923
Lower occupant compartment
Lower hinge pillar max (cm) 8
Footrest (cm) 8
Right toepan (cm) 7
Center toepan (cm) 5
Rocker panel lateral average (cm) 2
Upper occupant compartment
Center dash (cm) 2
Upper hinge pillar max (cm) 5
Upper dash (cm) 6
Right lower dash (cm) 5

Passenger injury measures

Test ID VTP1923
Head
HIC-15 92
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 17
Maximum Nij 0.18
Chest maximum compression (mm) 16
Femur (kN)
Left 2.2
Right 0.9
Knee displacement (mm)
Left 3
Right 3
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.41
Right 0.45
Tibia axial force (kN)
Left 2.6
Right 1.9
Foot acceleration (g)
Left 29
Right 47

Driver injury measures

Test ID VTP1923
Head
HIC-15 71
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Extension bending moment (Nm) 11
Maximum Nij 0.19
Chest maximum compression (mm) 20
Femur (kN)
Left 0.6
Right 0.4
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.38
Right 0.28
Tibia axial force (kN)
Left 0.4
Right 0.3
Foot acceleration (g)
Left 39
Right 31

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2019-24 models

Tested vehicle: 2019 Nissan Murano SV 4-door 4wd

The Nissan Murano was redesigned for the 2015 model year. Beginning with the 2019 model year, a knee airbag for the front passenger was added, and all of the following airbags were newly designed to improve occupant protection in both moderate overlap and small overlap frontal crashes: driver knee airbag, passenger frontal airbag, and both side curtain airbags.

Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Nissan. Because there were no structural changes, the structure rating of the current model is based on this test and and an earlier test of a 2015 model also conducted by Nissan.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1916 VTF1416
Footwell intrusion
Footrest (cm) 6 8
Left (cm) 13 11
Center (cm) 7 8
Right (cm) 5 7
Brake pedal (cm) 3 1
Instrument panel rearward movement
Left (cm) 1 2
Right (cm) 0 1
Steering column movement
Upward (cm) -4 6
Rearward (cm) -2 0
A-pillar rearward movement (cm) 0 1

Driver injury measures

Test ID VTF1916
Head
HIC-15 166
Peak gs at hard contact no contact
Neck
Tension (kN) 1.3
Extension bending moment (Nm) 21
Maximum Nij 0.27
Chest maximum compression (mm) 29
Legs
Femur force - left (kN) 0.7
Femur force - right (kN) 1.2
Knee displacement - left (mm) 2
Knee displacement - right (mm) 3
Maximum tibia index - left 0.46
Maximum tibia index - right 0.47
Tibia axial force - left (kN) 1.8
Tibia axial force - right (kN) 1.8
Foot acceleration (g)
Left 49
Right 50

About the original moderate overlap front test

Moderate overlap front: updated test

Rating applies to 2021-23 models

Tested vehicle: 2021 Nissan Murano SL 4-door 4wd

The Nissan Murano was redesigned for the 2015 model year. Beginning with the 2019 model year, a knee airbag for the front passenger was added, and all of the following airbags were newly designed to improve occupant protection in both moderate overlap and small overlap frontal crashes: driver knee airbag, passenger frontal airbag, and both side curtain airbags.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Thigh/hip
Leg/foot
Driver restraints and dummy kinematics
Rear passenger injury measures
Head/neck
Chest
Thigh
Rear passenger restraints and dummy kinematics

View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

The rear passenger dummy's head came close to contacting the front seatback, which increases the risk of head injuries.

Rear passenger dummy injury values indicate a likely risk of injury to the head or neck. During the crash, the shoulder belt remained in an ideal position on the dummy’s chest.

The rear passenger dummy's lap belt remained in the ideal position on the pelvis.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF2202
Footwell intrusion
Footrest (cm) 9
Left (cm) 11
Center (cm) 8
Right (cm) 7
Brake pedal (cm) 3
Instrument panel rearward movement
Left (cm) 0
Right (cm) 1
Steering column movement
Upward (cm) 5
Rearward (cm) -2
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF2202
Head
HIC-15 193
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 24
Maximum Nij 0.19
Chest maximum compression (mm) 25
Femur (kN)
Left 0.9
Right 0.8
Knee displacement (mm)
Left 2
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.38
Right 0.56
Tibia axial force (kN)
Left 1.9
Right 2.1
Foot acceleration (g)
Left 49
Right 68

Rear passenger injury measures

Test ID CEF2202
Head
HIC-15 for head contact during forward excursion
no contact
Peak gs at hard contact no contact
Neck
Tension (kN) 3.0
Compression (kN) 0.3
Maximum Nij for head contact during forward excursion
no contact
Chest
Chest index 24
Shoulder belt tension (kN) 5.9
Thigh (kN)
Left femur compression 0.2
Right femur compression 0.1

About the moderate overlap front test

February 2024 adjustment to rating criteria

Side: original test

Rating applies to 2019-24 models

Tested vehicle: 2019 Nissan Murano SL 4-door 4wd

The Nissan Murano was redesigned for the 2015 model year. Beginning with the 2019 model year, side torso airbags were added for outboard rear seat occupants, and both side curtain airbags and front-seat side torso airbags were newly designed to improve occupant protection in side impact crashes.

Side ratings are assigned by the Institute based on a test conducted by Nissan. Because there were no structural changes, the structure rating of the current model is based on this test and and an earlier test of a 2015 model also conducted by Nissan.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1918 VTS1419
B-pillar to longitudinal centerline of driver's seat (cm) -13.0 -10.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1918
Head HIC-15 225
Neck
Tension (kN) 1.2
Compression (kN) 1.1
Shoulder
Lateral deflection (mm) 36
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 35
Average deflection (mm) 30
Maximum deflection rate (m/s) 3.30
Maximum viscous criterion (m/s) 0.56
Pelvis
Iliac force (kN) 1.0
Acetabulum force (kN) 1.2
Combined force (kN) 2.2
Left femur
L-M force (kN) 0.7
L-M moment (Nm) 149
A-P moment (Nm) -36

Passenger injury measures

Test ID VTS1918
Head HIC-15 140
Neck
Tension (kN) 0.2
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 7
Lateral force (kN) 0.5
Torso
Maximum deflection (mm) 14
Average deflection (mm) 12
Maximum deflection rate (m/s) 1.76
Maximum viscous criterion (m/s) 0.05
Pelvis
Iliac force (kN) 0.3
Acetabulum force (kN) 1.1
Combined force (kN) 1.2
Left femur
L-M force (kN) 1.2
L-M moment (Nm) 93
A-P moment (Nm) 18

About the original side crash test

Side: updated test

Rating applies to 2019-24 models

Tested vehicle: 2021 Nissan Murano SV 4-door 4wd

The Nissan Murano was redesigned for the 2015 model year. Beginning with the 2019 model year, side torso airbags were added for outboard rear seat occupants, and both side curtain airbags and front-seat side torso airbags were newly designed to improve occupant protection in side impact crashes.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbags.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES2202
B-pillar to longitudinal centerline of driver's seat (cm) -7.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES2202
Head
HIC-15 286
Peak gs at hard contact no contact
Neck
Tension (kN) 1.8
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 42
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 43
Average deflection (mm) 38
Maximum deflection rate (m/s) 4.14
Maximum viscous criterion (m/s) 0.76
Pelvis
Combined force (kN) 5.1

Passenger injury measures

Test ID CES2202
Head
HIC-15 182
Peak gs at hard contact no contact
Neck
Tension (kN) 0.4
Compression (kN) 0.5
Shoulder
Lateral deflection (mm) 16
Lateral force (kN) 0.8
Torso
Maximum deflection (mm) 20
Average deflection (mm) 18
Maximum deflection rate (m/s) 2.16
Maximum viscous criterion (m/s) 0.13
Pelvis
Combined force (kN) 1.5

About the side crash test

Roof strength

Rating applies to 2015-23 models

Tested vehicle: 2015 Nissan Murano SV 4-door 4wd

Overall evaluation
Curb weight3,904 lbs
Peak force17,718 lbs
Strength-to-weight ratio4.54

About the roof strength test

Head restraints & seats

Seat type: Power cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power cloth seat
Geometry
Backset (mm) 18
Distance below top of head (mm) 20
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 12.5
Head contact time (ms) 63
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 337

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Trim level(s)

  • All trims
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was good on the sharp left and both right curves and fair on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test
Trim level(s)
  • All trims
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2021-24 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 91.2 m None
Straightaway left edge 57.2 m None
250m radius right curve, right edge 71.0 m None
250m radius left curve, right edge 56.3 m None
150m radius right curve, right edge 61.7 m None
150m radius left curve, left edge 55.3 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 180.0 m
Straightaway left edge 161.6 m
250m radius right curve, right edge 88.0 m
250m radius left curve, left edge 78.4 m
150m radius right curve, right edge 71.6 m
150m radius left curve, left edge 65.6 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Standard Automatic Emergency Braking with Pedestrian Detection

Overall evaluation

Applies to 2021-23 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Front crash prevention: pedestrian (day)

System details

  • standard Automatic Emergency Braking with Pedestrian Detection

Overall evaluation

This rating applies to all 2021-24 models

Superior
Superior

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 24 mph.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, this vehicle avoided a collision. A warning was issued 1.9 seconds before impact.

About the pedestrian front crash prevention test

Front crash prevention: pedestrian (night)

Night

System details

  • standard Automatic Emergency Braking with Pedestrian Detection

Overall evaluation

Includes high-beam assist credit

This rating applies to all 2021-24 models
Advanced
Advanced

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, impact speed was reduced by 23 mph.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 27 mph when using its high beams and a warning was issued 1.5 seconds before impact. When using its low beams, impact speed was reduced by 20 mph and a warning was issued 1 seconds before impact.

About pedestrian front crash prevention test

Seat belt reminders

Rating applies to 2021-22 models

Overall evaluation
Front row
Unbelted occupant alert (audible & visual)
Initiation time
DurationLong enough (90+ seconds)
Volume
Audio frequency
Second row
Startup status alert (visual)
None
Technical measurements for this test
Background cabin sound pressure level at 24 km/h 52 dB
Audible signal sound pressure level at 24 km/h 71 dB
Difference between background and signal 19.7 dB
Background cabin sound pressure level at 40 km/h 54 dB
Audible signal sound pressure level at 40 km/h 70 dB
Difference between background and signal 15.5 dB
Dominant audio frequency 2020 Hz

About the seat belt reminder evaluation

Child seat anchors

Rating applies to 2021-24 models

Overall evaluation
+
extra LATCH positions
Vehicle trimSV
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Overall evaluation
+
extra LATCH positions
Vehicle trimSV
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
Can be borrowed from 1 and 3
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 11
Clearance angle (degrees) 84
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 6
Clearance angle (degrees) 86
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
Lower latch is shared for this seat position
Lower anchor B
Lower latch is shared for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 8
Clearance angle (degrees) 80
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 10
Clearance angle (degrees) 80
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
