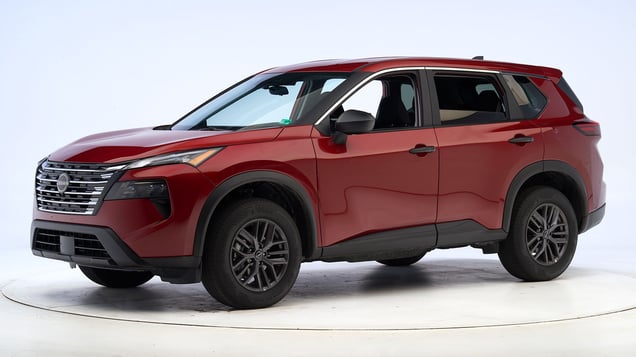

2025 Nissan Rogue
small SUV / 4-door SUV
Small overlap front
The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.
Driver-side
- Rating applies to 2021-25 models
Tested vehicle: 2021 Nissan Rogue SV 4-door 4wd
The Nissan Rogue was redesigned for the 2021 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test of a 2021 Nissan Rogue conducted by Nissan.
| Overall driver-side evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTN2011 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 11 |
| Footrest (cm) | 9 |
| Left toepan (cm) | 7 |
| Brake pedal (cm) | 6 |
| Parking brake (cm) | 0 |
| Rocker panel lateral average (cm) | 2 |
| Upper occupant compartment | |
| Steering column | 3 |
| Upper hinge pillar max (cm) | 12 |
| Upper dash (cm) | 12 |
| Lower instrument panel (cm) | 9 |
Driver injury measures
| Test ID | VTN2011 |
|---|---|
| Head | |
| HIC-15 | 133 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.1 |
| Extension bending moment (Nm) | 8 |
| Maximum Nij | 0.21 |
| Chest maximum compression (mm) | 28 |
| Femur (kN) | |
| Left | 1.4 |
| Right | 0.4 |
| Knee displacement (mm) | |
| Left | 2 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.46 |
| Right | 0.51 |
| Tibia axial force (kN) | |
| Left | 1.5 |
| Right | 0.7 |
| Foot acceleration (g) | |
| Left | 66 |
| Right | 37 |
Passenger-side
- Rating applies to 2022-25 models built after April 2022
Tested vehicle: 2022 Nissan Rogue S 4-door 4wd
The Nissan Rogue was redesigned for the 2021 model year for vehicles built in the US. Beginning with 2021 Rogue models built in Japan after February 2021, changes to the passenger-side frontal airbag and front passenger safety belt were implemented to match US built vehicles, and to improve occupant protection in passenger-side small overlap crashes. Further changes to the passenger-side frontal airbag were made beginning with 2022 models built after April 2022. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar. Information about what country a vehicle was built in is available by decoding the VIN number, present at the base of the windshield on the driver side).
Three passenger-side small overlap tests were conducted by Nissan. Because there were no structural changes, the structure rating is based on this test and two other tests of Rogue models conducted by Nissan. Because there were no changes to the driver restraints, driver data is based on all three tests.
| Overall passenger-side evaluation | |
|---|---|
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Measures of occupant compartment intrusion on passenger side
| Test ID | VTP2022 | VTP2210 | VTP2201 |
|---|---|---|---|
| Lower occupant compartment | |||
| Lower hinge pillar max (cm) | 9 | 9 | 6 |
| Footrest (cm) | 11 | 7 | 8 |
| Right toepan (cm) | 5 | 3 | 4 |
| Center toepan (cm) | 2 | 3 | 2 |
| Rocker panel lateral average (cm) | 1 | 1 | 2 |
| Upper occupant compartment | |||
| Center dash (cm) | 4 | 7 | 4 |
| Upper hinge pillar max (cm) | 6 | 11 | 5 |
| Upper dash (cm) | 7 | 9 | 5 |
| Right lower dash (cm) | 6 | 7 | 4 |
Passenger injury measures
| Test ID | VTP2210 |
|---|---|
| Head | |
| HIC-15 | 91 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.1 |
| Extension bending moment (Nm) | 15 |
| Maximum Nij | 0.19 |
| Chest maximum compression (mm) | 23 |
| Femur (kN) | |
| Left | 1.4 |
| Right | 2.3 |
| Knee displacement (mm) | |
| Left | 3 |
| Right | 3 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.44 |
| Right | 0.44 |
| Tibia axial force (kN) | |
| Left | 1.6 |
| Right | 1.7 |
| Foot acceleration (g) | |
| Left | 62 |
| Right | 49 |
Driver injury measures
| Test ID | VTP2022 | VTP2210 | VTP2201 |
|---|---|---|---|
| Head | |||
| HIC-15 | 67 | 53 | 88 |
| Peak gs at hard contact | no contact | no contact | no contact |
| Neck | |||
| Tension (kN) | 0.8 | 0.8 | 0.8 |
| Extension bending moment (Nm) | 9 | 11 | 21 |
| Maximum Nij | 0.18 | 0.16 | 0.18 |
| Chest maximum compression (mm) | 26 | 30 | 31 |
| Femur (kN) | |||
| Left | 0.2 | 0.7 | 0.2 |
| Right | 0.4 | 0.9 | 0.2 |
| Knee displacement (mm) | |||
| Left | 0 | 0 | 1 |
| Right | 1 | 0 | 2 |
| Knee-thigh-hip injury risk (%) | |||
| Left | 0 | 0 | 0 |
| Right | 0 | 0 | 0 |
| Maximum tibia index | |||
| Left | 0.26 | 0.24 | 0.47 |
| Right | 0.24 | 0.18 | 0.26 |
| Tibia axial force (kN) | |||
| Left | 0.6 | 0.5 | 0.2 |
| Right | 0.7 | 0.2 | 0.7 |
| Foot acceleration (g) | |||
| Left | 22 | 23 | 28 |
| Right | 38 | 44 | 48 |
Moderate overlap front: original test
Rating applies to 2021-25 models
Tested vehicle: 2021 Nissan Rogue SV 4-door 4wd
The Nissan Rogue was redesigned for the 2021 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test of a 2021 Nissan Rogue conducted by Nissan.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF2014 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 1 |
| Left (cm) | 2 |
| Center (cm) | 3 |
| Right (cm) | 3 |
| Brake pedal (cm) | 4 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 2 |
| Steering column movement | |
| Upward (cm) | 1 |
| Rearward (cm) | -6 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | VTF2014 |
|---|---|
| Head | |
| HIC-15 | 289 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.6 |
| Extension bending moment (Nm) | 8 |
| Maximum Nij | 0.25 |
| Chest maximum compression (mm) | 27 |
| Legs | |
| Femur force - left (kN) | 0.5 |
| Femur force - right (kN) | 0.5 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.51 |
| Maximum tibia index - right | 0.34 |
| Tibia axial force - left (kN) | 1.6 |
| Tibia axial force - right (kN) | 1.9 |
| Foot acceleration (g) | |
| Left | 50 |
| Right | 88 |
Side: original test
Rating applies to 2021-25 models
Tested vehicle: 2021 Nissan Rogue SV 4-door 4wd
The Nissan Rogue was redesigned for the 2021 model year. Side ratings are assigned by the Institute based on a test of a 2021 Nissan Rogue conducted by Nissan.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS2015 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -18.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS2015 |
|---|---|
| Head HIC-15 | 126 |
| Neck | |
| Tension (kN) | 0.9 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 32 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 24 |
| Average deflection (mm) | 21 |
| Maximum deflection rate (m/s) | 3.31 |
| Maximum viscous criterion (m/s) | 0.36 |
| Pelvis | |
| Iliac force (kN) | 0.9 |
| Acetabulum force (kN) | 0.9 |
| Combined force (kN) | 1.8 |
| Left femur | |
| L-M force (kN) | 0.9 |
| L-M moment (Nm) | 100 |
| A-P moment (Nm) | 56 |
Passenger injury measures
| Test ID | VTS2015 |
|---|---|
| Head HIC-15 | 166 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.5 |
| Shoulder | |
| Lateral deflection (mm) | 16 |
| Lateral force (kN) | 0.9 |
| Torso | |
| Maximum deflection (mm) | 16 |
| Average deflection (mm) | 14 |
| Maximum deflection rate (m/s) | 2.72 |
| Maximum viscous criterion (m/s) | 0.11 |
| Pelvis | |
| Iliac force (kN) | 0.2 |
| Acetabulum force (kN) | 1.4 |
| Combined force (kN) | 1.5 |
| Left femur | |
| L-M force (kN) | 0.2 |
| L-M moment (Nm) | 82 |
| A-P moment (Nm) | 25 |
Side: updated test
Rating applies to 2021-25 models
Tested vehicle: 2021 Nissan Rogue SV 4-door 4wd
The Nissan Rogue was redesigned for the 2021 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
|
Driver head protection
The dummy's head moved downward past the side curtain airbag and struck the window sill of the driver door hard, while the head was in proximity to the intruding barrier. Although the barrier did not hit the dummy's head in this test, this near miss indicates that only slightly different crash circumstances could produce a direct hit to a person's head. The head protection is inadequate. | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
|
Rear passenger head protection
The dummy's head contacted the C-pillar hard, through the side curtain airbag. The head protection is inadequate. | |
View of the vehicle just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows that the driver dummy's head moved downward, past the side curtain airbag, and contacted the window sill.
The dummy's head contacted the C-pillar through the side curtain airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES2101 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -19.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES2101 |
|---|---|
| Head | |
| HIC-15 | 290 |
| Peak gs at hard contact | 81 |
| Neck | |
| Tension (kN) | 1.1 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 24 |
| Lateral force (kN) | 1.1 |
| Torso | |
| Maximum deflection (mm) | 24 |
| Average deflection (mm) | 23 |
| Maximum deflection rate (m/s) | 2.56 |
| Maximum viscous criterion (m/s) | 0.24 |
| Pelvis | |
| Combined force (kN) | 3.6 |
Passenger injury measures
| Test ID | CES2101 |
|---|---|
| Head | |
| HIC-15 | 455 |
| Peak gs at hard contact | 89 |
| Neck | |
| Tension (kN) | 0.4 |
| Compression (kN) | 1.8 |
| Shoulder | |
| Lateral deflection (mm) | 31 |
| Lateral force (kN) | 1.7 |
| Torso | |
| Maximum deflection (mm) | 22 |
| Average deflection (mm) | 20 |
| Maximum deflection rate (m/s) | 3.27 |
| Maximum viscous criterion (m/s) | 0.24 |
| Pelvis | |
| Combined force (kN) | 2.4 |
Headlights
Trim level(s)
- All trims
| Low-beam headlight type | LED reflector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on both right curves and fair on both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual right curve and fair on the sharp right and both left curves.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on the sharp right curve.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating Applies to 2021-25 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 120.6 m | None |
| Straightaway left edge | 57.6 m | None |
| 250m radius right curve, right edge | 76.4 m | None |
| 250m radius left curve, left edge | 59.4 m | None |
| 150m radius right curve, right edge | 58.8 m | None |
| 150m radius left curve, left edge | 49.5 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 172.2 m |
| Straightaway left edge | 158.0 m |
| 250m radius right curve, right edge | 83.6 m |
| 250m radius left curve, left edge | 71.7 m |
| 150m radius right curve, right edge | 60.9 m |
| 150m radius left curve, left edge | 56.1 m |
Child seat anchors
Rating applies to 2021-25 models
| Overall evaluation | + extra LATCH positions |
| Vehicle trim | S |
| Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor, a single lower anchor and the ability to borrow the second anchor from another position.
Note: When anchors are borrowed, they aren't available to use in their designated positions.
| Overall evaluation | + extra LATCH positions |
| Vehicle trim | S |
| Seat type | cloth |
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| 1 | |
|---|---|
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| 1 dedicated anchor and 1 that can be borrowed from seat 3 | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors | |
| 3 | |
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors |
Seat position 21
| Lower anchor A | |
|---|---|
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 87 |
| Lower anchor B | |
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 88 |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
| Lower anchor A | |
|---|---|
| Lower latch is shared for this seat position | |
| Lower anchor B | |
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 72 |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
| Lower anchor A | |
|---|---|
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 87 |
| Lower anchor B | |
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 85 |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
