Top Safety Pick +Top Safety Pick criteria

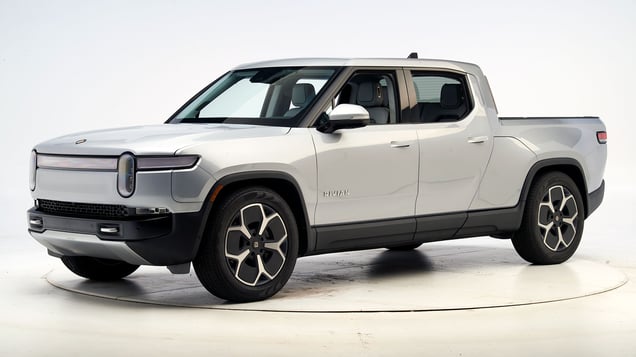

2024 Rivian R1T

large pickup / Crew cab pickup

Fully electric
2024 Rivian R1T Crew cab pickup

Crashworthiness

Rating overview
Small overlap front
Moderate overlap front: original test
Moderate overlap front: updated test
Side: updated test

Crash avoidance & mitigation

Headlights
Front crash prevention: pedestrian
Standard system

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Standard blind spot detection
  • Standard lane departure warning & prevention

Key

  • Good
  • Acceptable
  • Marginal
  • Poor

Small overlap front

The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.

Driver-side

  • Rating applies to 2022-24 models

Tested vehicle: 2022 Rivian R1T EV Adventure Trim Crew cab 4wd

The Rivian R1T, an all-new electric crew-cab pickup truck, was introduced in the 2022 model year.

Overall driver-side evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was very low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN2209
Lower occupant compartment
Lower hinge pillar max (cm) 7
Footrest (cm) 3
Left toepan (cm) 1
Brake pedal (cm) 4
Parking brake (cm)
Rocker panel lateral average (cm) 1
Upper occupant compartment
Steering column 2
Upper hinge pillar max (cm) 7
Upper dash (cm) 6
Lower instrument panel (cm) 4

Driver injury measures

Test ID CEN2209
Head
HIC-15 68
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 22
Maximum Nij 0.22
Chest maximum compression (mm) 30
Femur (kN)
Left 1.0
Right 0.6
Knee displacement (mm)
Left 1
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.50
Right 0.34
Tibia axial force (kN)
Left 2.6
Right 0.5
Foot acceleration (g)
Left 45
Right 32

Passenger-side

  • Rating applies to 2022-24 models

Tested vehicle: 2022 Rivian R1T EV Adventure Crew cab 4wd

The Rivian R1T, an all-new electric crew-cab pickup truck, was introduced in the 2022 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2022 R1T conducted by Rivian.

Overall passenger-side evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP2223
Lower occupant compartment
Lower hinge pillar max (cm) 8
Footrest (cm) 8
Right toepan (cm) 6
Center toepan (cm) 2
Rocker panel lateral average (cm) 2
Upper occupant compartment
Center dash (cm) 2
Upper hinge pillar max (cm) 6
Upper dash (cm) 5
Right lower dash (cm) 4

Passenger injury measures

Test ID VTP2223
Head
HIC-15 69
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 8
Maximum Nij 0.13
Chest maximum compression (mm) 26
Femur (kN)
Left 1.2
Right 1.2
Knee displacement (mm)
Left 1
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.45
Right 0.39
Tibia axial force (kN)
Left 2.0
Right 2.5
Foot acceleration (g)
Left 48
Right 74

Driver injury measures

Test ID VTP2223
Head
HIC-15 51
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 20
Maximum Nij 0.22
Chest maximum compression (mm) 38
Femur (kN)
Left 0.6
Right 0.3
Knee displacement (mm)
Left 2
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.31
Right 0.29
Tibia axial force (kN)
Left 0.1
Right 0.6
Foot acceleration (g)
Left 31
Right 38

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2022-24 models

Tested vehicle: 2022 Rivian R1T EV Adventure Trim Crew cab 4wd

The Rivian R1T, an all-new electric crew-cab pickup truck, was introduced in the 2022 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the moderate overlap frontal crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.

Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag during rebound.

Intrusion into the driver's space was minimal, and all leg and foot injury measures were very low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF2228
Footwell intrusion
Footrest (cm) 2
Left (cm) 3
Center (cm) 4
Right (cm) 5
Brake pedal (cm) 4
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) -1
Rearward (cm) -5
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF2228
Head
HIC-15 169
Peak gs at hard contact no contact
Neck
Tension (kN) 1.4
Extension bending moment (Nm) 11
Maximum Nij 0.23
Chest maximum compression (mm) 35
Legs
Femur force - left (kN) 1.2
Femur force - right (kN) 1.5
Knee displacement - left (mm) 1
Knee displacement - right (mm) 0
Maximum tibia index - left 0.21
Maximum tibia index - right 0.32
Tibia axial force - left (kN) 2.7
Tibia axial force - right (kN) 2.6
Foot acceleration (g)
Left 52
Right 89

About the original moderate overlap front test

Moderate overlap front: updated test

Rating applies to 2024 models

Tested vehicle: 2024 Rivian R1T Performance Dual Max 4-door 4wd

The Rivian R1T, an all-new electric crew-cab pickup truck, was introduced in the 2022 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Thigh/hip
Leg/foot
Driver restraints and dummy kinematics
Rear passenger injury measures
Head/neck
Chest
Thigh
Rear passenger restraints and dummy kinematics

View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

The rear passenger dummy's head remained a safe distance from the front seatback.

Rear passenger dummy injury values indicate a low risk of injury to the head or neck and chest. During the crash, the shoulder belt remained in an ideal position on the dummy’s chest.

The rear passenger dummy's lap belt remained in the ideal position on the pelvis.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF2414
Footwell intrusion
Footrest (cm) 7
Left (cm) 12
Center (cm) 13
Right (cm) 11
Brake pedal (cm) 11
Instrument panel rearward movement
Left (cm) 2
Right (cm) 2
Steering column movement
Upward (cm) 4
Rearward (cm) -4
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF2414
Head
HIC-15 156
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 17
Maximum Nij 0.24
Chest maximum compression (mm) 36
Femur (kN)
Left 1.3
Right 1.7
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.30
Right 0.93
Tibia axial force (kN)
Left 2.5
Right 3.4
Foot acceleration (g)
Left 51
Right 73

Rear passenger injury measures

Test ID CEF2414
Head
HIC-15 for head contact during forward excursion
no contact
Peak gs at hard contact no contact
Neck
Tension (kN) 1.4
Compression (kN) 0.3
Maximum Nij for head contact during forward excursion
no contact
Chest
Chest index 31
Shoulder belt tension (kN) 4.0
Thigh (kN)
Left femur compression 0.1
Right femur compression 0.1

About the moderate overlap front test

February 2024 adjustment to rating criteria

Side: updated test

Rating applies to 2022-24 models

Tested vehicle: 2022 Rivian R1T EV Adventure Crew Cab 4wd

The Rivian R1T, an all-new electric crew-cab pickup truck, was introduced in the 2022 model year. Two tests of the R1T were conducted by the Institute. During the first test, the rear passenger dummy's head moved beyond the rear portion of the side curtain airbag and made direct contact with the C-pillar, resulting in an elevated head injury risk. Rivian modified the C-pillar trim to prevent this from happening beginning with 2022 models built after November 2022, and issued a service campaign to retrofit models built since the start of production. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the driver door or adjacent B-pillar.) In the retest of the vehicle with the modification, the rear passenger dummy's head made direct contact with the C-pillar but the injury risk was low.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection
Part of the dummy's head moved beyond the rear portion of the side curtain airbag and contacted the C-pillar. The head protection is inadequate.

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy's head contacted the C-pillar despite the deployment of the side curtain airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES2244 CES2239
B-pillar to longitudinal centerline of driver's seat (cm) -34.0 -34.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES2244 CES2239
Head
HIC-15 15 15
Peak gs at hard contact no contact no contact
Neck
Tension (kN) 0.6 0.6
Compression (kN) 0.3 0.3
Shoulder
Lateral deflection (mm) 8 7
Lateral force (kN) 0.7 0.5
Torso
Maximum deflection (mm) 11 9
Average deflection (mm) 8 7
Maximum deflection rate (m/s) 1.59 1.45
Maximum viscous criterion (m/s) 0.05 0.04
Pelvis
Combined force (kN) 0.9 0.7

Passenger injury measures

Test ID CES2244
Head
HIC-15 235
Peak gs at hard contact 66
Neck
Tension (kN) 0.3
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 19
Lateral force (kN) 0.8
Torso
Maximum deflection (mm) 18
Average deflection (mm) 12
Maximum deflection rate (m/s) 1.91
Maximum viscous criterion (m/s) 0.17
Pelvis
Combined force (kN) 2.5

About the side crash test

Headlights

Trim level(s)

  • All trims
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on both right curves and fair on both left curves.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test
Trim level(s)
  • All trims
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2022-24 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 100.0 m None
Straightaway left edge 60.9 m None
250m radius right curve, right edge 81.7 m None
250m radius left curve, left edge 57.0 m None
150m radius right curve, right edge 62.2 m None
150m radius left curve, left edge 50.1 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 180.6 m
Straightaway left edge 155.2 m
250m radius right curve, right edge 95.9 m
250m radius left curve, left edge 82.6 m
150m radius right curve, right edge 69.3 m
150m radius left curve, left edge 66.5 m

About the headlight evaluation

Front crash prevention: pedestrian

Rating applies to all 2024 models

System details

  • standard Forward Collision Avoidance Support
Overall evaluation
Includes high-beam assist credit

Crossing child — day

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 22 mph.

Crossing adult — night

  • In the 12 mph test, impact speed was reduced by 10 mph when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 21 mph when using its high beams. When using its low beams, this vehicle avoided a collision.

Parallel adult — night

  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, impact speed was reduced by 18 mph.
  • In the 37 mph test, impact speed was reduced by 35 mph when using its high beams and a warning was issued 1.7 seconds before impact. When using its low beams, impact speed was reduced by 36 mph and a warning was issued 1.4 seconds before impact.

About the pedestrian front crash prevention test

Child seat anchors

Rating applies to 2022-25 models

Overall evaluation
Vehicle trimAdventure Edition
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimAdventure Edition
Seat type leather
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) -2-0
Force (lbs) 17
Clearance angle (degrees) 78
Lower anchor B
Open access rated No
Depth (cm) -2-0
Force (lbs) 12
Clearance angle (degrees) 67
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) -2-0
Force (lbs) 11
Clearance angle (degrees) 65
Lower anchor B
Open access rated No
Depth (cm) -2-0
Force (lbs) 16
Clearance angle (degrees) 66
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

About the child seat anchor evaluation
