2025 Subaru Solterra
small SUV / 4-door SUV
Small overlap front
The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.
Driver-side
- Rating applies to 2023-25 models

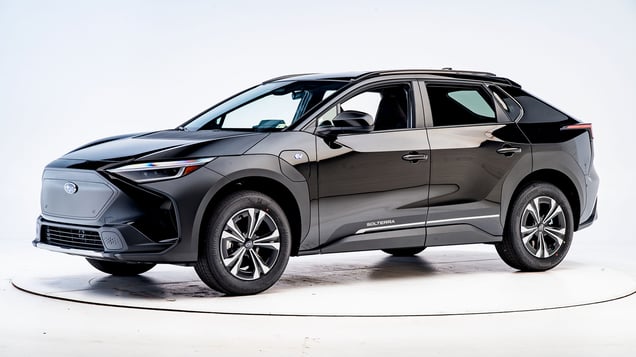

Tested vehicle: 2023 Subaru Solterra Touring 4-door 4wd
The Subaru Solterra and Toyota bZ4X, both all-new electric vehicles, were introduced for the 2023 model year.
| Overall driver-side evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Action shot taken during the driver-side small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.
The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN2301 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 3 |
| Footrest (cm) | 1 |
| Left toepan (cm) | 1 |
| Brake pedal (cm) | 3 |
| Parking brake (cm) | |
| Rocker panel lateral average (cm) | 0 |
| Upper occupant compartment | |
| Steering column | 1 |
| Upper hinge pillar max (cm) | 2 |
| Upper dash (cm) | 3 |
| Lower instrument panel (cm) | 3 |
Driver injury measures
| Test ID | CEN2301 |
|---|---|
| Head | |
| HIC-15 | 108 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 19 |
| Maximum Nij | 0.22 |
| Chest maximum compression (mm) | 25 |
| Femur (kN) | |
| Left | 0.6 |
| Right | 0.6 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.29 |
| Right | 0.24 |
| Tibia axial force (kN) | |
| Left | 1.6 |
| Right | 1.9 |
| Foot acceleration (g) | |
| Left | 31 |
| Right | 49 |
Passenger-side
- Rating applies to 2023-25 models
Tested vehicle: 2023 Subaru Solterra Touring 4-door 4wd
The Subaru Solterra and Toyota bZ4X, both all-new electric vehicles, were introduced for the 2023 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2023 Solterra conducted by Subaru.
| Overall passenger-side evaluation | |
|---|---|
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics The dummy’s head maintained only partial engagement with the frontal airbag, moving into the gap between the frontal and side curtain airbags and leaving the head vulnerable to contact with forward structure. |
|
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Measures of occupant compartment intrusion on passenger side
| Test ID | VTP2302 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 5 |
| Footrest (cm) | 1 |
| Right toepan (cm) | 4 |
| Center toepan (cm) | 1 |
| Rocker panel lateral average (cm) | 0 |
| Upper occupant compartment | |
| Center dash (cm) | 3 |
| Upper hinge pillar max (cm) | 3 |
| Upper dash (cm) | 6 |
| Right lower dash (cm) | 3 |
Passenger injury measures
| Test ID | VTP2302 |
|---|---|
| Head | |
| HIC-15 | 78 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 15 |
| Maximum Nij | 0.20 |
| Chest maximum compression (mm) | 21 |
| Femur (kN) | |
| Left | 0.5 |
| Right | 0.5 |
| Knee displacement (mm) | |
| Left | 1 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.33 |
| Right | 0.35 |
| Tibia axial force (kN) | |
| Left | 1.5 |
| Right | 1.6 |
| Foot acceleration (g) | |
| Left | 30 |
| Right | 32 |
Driver injury measures
| Test ID | VTP2302 |
|---|---|
| Head | |
| HIC-15 | 88 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.1 |
| Extension bending moment (Nm) | 18 |
| Maximum Nij | 0.18 |
| Chest maximum compression (mm) | 25 |
| Femur (kN) | |
| Left | 0.6 |
| Right | 1.1 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.37 |
| Right | 0.44 |
| Tibia axial force (kN) | |
| Left | 0.7 |
| Right | 1.9 |
| Foot acceleration (g) | |
| Left | 28 |
| Right | 47 |
Side: updated test
Rating applies to 2023-25 models built after October 2022
Tested vehicle: 2023 Subaru Solterra Touring 4-door 4wd
The Subaru Solterra and Toyota bZ4X, both all-new electric vehicles, were introduced for the 2023 model year. Beginning with 2023 models built after October 2022, reinforcements were implemented to improve occupant protection in side impact crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the driver door or adjacent B-pillar.)
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Rear passenger head protection Part of the dummy's head moved beyond the rear portion of the side curtain airbag and contacted the C-pillar. The head protection is inadequate. |
|
View of the vehicle just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
Smeared greasepaint shows where the rear passenger dummy’s head moved beyond the side curtain airbag and contacted the C-pillar.
Measures of occupant compartment intrusion on driver side
| Test ID | CES2301 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -27.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES2301 |
|---|---|
| Head | |
| HIC-15 | 105 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.7 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 13 |
| Lateral force (kN) | 0.6 |
| Torso | |
| Maximum deflection (mm) | 31 |
| Average deflection (mm) | 20 |
| Maximum deflection rate (m/s) | 3.12 |
| Maximum viscous criterion (m/s) | 0.33 |
| Pelvis | |
| Combined force (kN) | 3.9 |
Passenger injury measures
| Test ID | CES2301 |
|---|---|
| Head | |
| HIC-15 | 212 |
| Peak gs at hard contact | 68 |
| Neck | |
| Tension (kN) | 1.4 |
| Compression (kN) | 0.7 |
| Shoulder | |
| Lateral deflection (mm) | 16 |
| Lateral force (kN) | 1.0 |
| Torso | |
| Maximum deflection (mm) | 30 |
| Average deflection (mm) | 22 |
| Maximum deflection rate (m/s) | 2.79 |
| Maximum viscous criterion (m/s) | 0.35 |
| Pelvis | |
| Combined force (kN) | 2.9 |
