Small overlap front: driver-side
Rating applies to 2019-25 models
Tested vehicle: 2019 Toyota Corolla SE 4-door hatchback
The Toyota Corolla hatchback was redesigned for the 2019 model year. It replaces the Corolla iM hatchback. The Toyota Corolla sedan was redesigned for the 2020 model year (the listed ratings do not apply to the 2019 Corolla sedan). Driver-side small overlap frontal ratings are assigned by the Institute based on a test of a 2019 Corolla hatchback conducted by Toyota.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTN1809 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 5 |
Footrest (cm) | 2 |
Left toepan (cm) | 2 |
Brake pedal (cm) | 5 |
Parking brake (cm) | |
Rocker panel lateral average (cm) | 1 |
Upper occupant compartment | |
Steering column | 4 |
Upper hinge pillar max (cm) | 2 |
Upper dash (cm) | 4 |
Lower instrument panel (cm) | 4 |
Driver injury measures
Test ID | VTN1809 |
---|---|
Head | |
HIC-15 | 203 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.9 |
Extension bending moment (Nm) | 6 |
Maximum Nij | 0.17 |
Chest maximum compression (mm) | 25 |
Femur (kN) | |
Left | 0.9 |
Right | 0.5 |
Knee displacement (mm) | |
Left | 1 |
Right | 0 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.54 |
Right | 0.46 |
Tibia axial force (kN) | |
Left | 1.6 |
Right | 2.0 |
Foot acceleration (g) | |
Left | 78 |
Right | 60 |
Small overlap front: passenger-side
Rating applies to 2019-25 models
Tested vehicle: 2019 Toyota Corolla 4-door hatchback
The Toyota Corolla hatchback was redesigned for the 2019 model year. It replaces the Corolla iM hatchback. The Toyota Corolla sedan was redesigned for the 2020 model year (the listed ratings do not apply to the 2019 Corolla sedan). Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2019 Corolla hatchback conducted by Toyota.
Overall evaluation | |
---|---|
Structure and safety cage | |
Passenger injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Passenger restraints and dummy kinematics | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on passenger side
Test ID | VTP1826 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 5 |
Footrest (cm) | 1 |
Right toepan (cm) | 4 |
Center toepan (cm) | 4 |
Rocker panel lateral average (cm) | 1 |
Upper occupant compartment | |
Center dash (cm) | 2 |
Upper hinge pillar max (cm) | 4 |
Upper dash (cm) | 4 |
Right lower dash (cm) | 3 |
Passenger injury measures
Test ID | VTP1826 |
---|---|
Head | |
HIC-15 | 151 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.9 |
Extension bending moment (Nm) | 44 |
Maximum Nij | 0.44 |
Chest maximum compression (mm) | 22 |
Femur (kN) | |
Left | 0.4 |
Right | 1.6 |
Knee displacement (mm) | |
Left | 2 |
Right | 4 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.56 |
Right | 0.64 |
Tibia axial force (kN) | |
Left | 2.7 |
Right | 2.0 |
Foot acceleration (g) | |
Left | 52 |
Right | 46 |
Driver injury measures
Test ID | VTP1826 |
---|---|
Head | |
HIC-15 | 95 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.0 |
Extension bending moment (Nm) | 8 |
Maximum Nij | 0.19 |
Chest maximum compression (mm) | 29 |
Femur (kN) | |
Left | 0.6 |
Right | 0.8 |
Knee displacement (mm) | |
Left | 1 |
Right | 2 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.31 |
Right | 0.28 |
Tibia axial force (kN) | |
Left | 0.0 |
Right | 0.8 |
Foot acceleration (g) | |
Left | 35 |
Right | 56 |
Moderate overlap front: original test
Rating applies to 2019-25 models
Tested vehicle: 2019 Toyota Corolla SE 4-door hatchback
The Toyota Corolla hatchback was redesigned for the 2019 model year. It replaces the Corolla iM hatchback. The Toyota Corolla sedan was redesigned for the 2020 model year (the listed ratings do not apply to the 2019 Corolla sedan). Moderate overlap frontal ratings are assigned by the Institute based on a test of a 2019 Corolla hatchback conducted by Toyota.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF1817 |
---|---|
Footwell intrusion | |
Footrest (cm) | 1 |
Left (cm) | 4 |
Center (cm) | 2 |
Right (cm) | 4 |
Brake pedal (cm) | 5 |
Instrument panel rearward movement | |
Left (cm) | -1 |
Right (cm) | -3 |
Steering column movement | |
Upward (cm) | 0 |
Rearward (cm) | -3 |
A-pillar rearward movement (cm) | 1 |
Driver injury measures
Test ID | VTF1817 |
---|---|
Head | |
HIC-15 | 204 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.1 |
Extension bending moment (Nm) | 15 |
Maximum Nij | 0.20 |
Chest maximum compression (mm) | 28 |
Legs | |
Femur force - left (kN) | 0.8 |
Femur force - right (kN) | 0.7 |
Knee displacement - left (mm) | 1 |
Knee displacement - right (mm) | 1 |
Maximum tibia index - left | 0.72 |
Maximum tibia index - right | 0.62 |
Tibia axial force - left (kN) | 2.2 |
Tibia axial force - right (kN) | 2.4 |
Foot acceleration (g) | |
Left | 69 |
Right | 75 |
Side: original test
Rating applies to 2019-25 models
Tested vehicle: 2019 Toyota Corolla SE 4-door hatchback
The Toyota Corolla hatchback was redesigned for the 2019 model year. It replaces the Corolla iM hatchback. The Toyota Corolla sedan was redesigned for the 2020 model year (the listed ratings do not apply to the 2019 Corolla sedan).
Two side tests of a 2019 Corolla hatchback were conducted, one by the Institute and the other by Toyota. Ratings are based on both tests and apply to both the hatchback and redesigned sedan.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
View of the vehicle and barrier (left edge of photo) just after the Institute's crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment (Institute test car shown).
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag in the Institute's test.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
Test ID | VTS1814 | CES1809 |
---|---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -17.0 | -19.5 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1814 | CES1809 |
---|---|---|
Head HIC-15 | 294 | 181 |
Neck | ||
Tension (kN) | 1.1 | 0.8 |
Compression (kN) | 0.2 | 0.1 |
Shoulder | ||
Lateral deflection (mm) | 23 | 21 |
Lateral force (kN) | 1.2 | 1.4 |
Torso | ||
Maximum deflection (mm) | 31 | 25 |
Average deflection (mm) | 28 | 20 |
Maximum deflection rate (m/s) | 4.20 | 3.52 |
Maximum viscous criterion (m/s) | 0.42 | 0.24 |
Pelvis | ||
Iliac force (kN) | 3.1 | 2.5 |
Acetabulum force (kN) | 1.8 | 1.2 |
Combined force (kN) | 4.8 | 3.6 |
Left femur | ||
L-M force (kN) | 0.8 | 0.7 |
L-M moment (Nm) | 118 | 112 |
A-P moment (Nm) | 20 | 35 |
Passenger injury measures
Test ID | VTS1814 | CES1809 |
---|---|---|
Head HIC-15 | 111 | 127 |
Neck | ||
Tension (kN) | 0.1 | 0.2 |
Compression (kN) | 0.8 | 0.6 |
Shoulder | ||
Lateral deflection (mm) | 24 | 23 |
Lateral force (kN) | 0.8 | 1.0 |
Torso | ||
Maximum deflection (mm) | 26 | 23 |
Average deflection (mm) | 22 | 20 |
Maximum deflection rate (m/s) | 3.20 | 2.28 |
Maximum viscous criterion (m/s) | 0.31 | 0.23 |
Pelvis | ||
Iliac force (kN) | 0.1 | 0.0 |
Acetabulum force (kN) | 1.2 | 1.1 |
Combined force (kN) | 1.2 | 1.1 |
Left femur | ||
L-M force (kN) | 1.8 | 1.4 |
L-M moment (Nm) | 236 | 226 |
A-P moment (Nm) | 79 | -102 |
Side: updated test
Rating applies to 2019-25 models

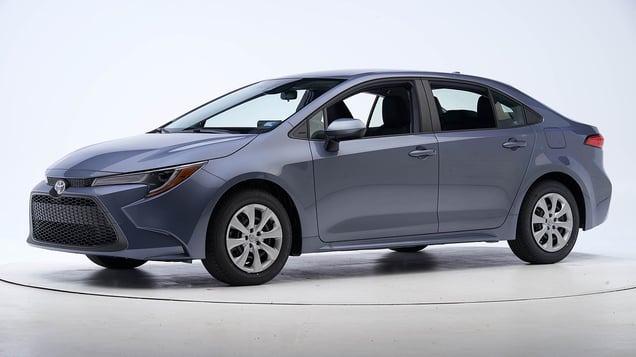

Tested vehicle: 2022 Toyota Corolla LE 4-door sedan
The Toyota Corolla hatchback was redesigned for the 2019 model year. It replaces the Corolla iM hatchback. The Toyota Corolla sedan was redesigned for the 2020 model year (the listed ratings do not apply to the 2019 Corolla sedan).
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis | |
Rear passenger head protection |
View of the vehicle just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbags.
Measures of occupant compartment intrusion on driver side
Test ID | CES2233 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -16.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | CES2233 |
---|---|
Head | |
HIC-15 | 99 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.9 |
Compression (kN) | 0.6 |
Shoulder | |
Lateral deflection (mm) | 28 |
Lateral force (kN) | 1.2 |
Torso | |
Maximum deflection (mm) | 41 |
Average deflection (mm) | 33 |
Maximum deflection rate (m/s) | 3.32 |
Maximum viscous criterion (m/s) | 0.75 |
Pelvis | |
Combined force (kN) | 6.0 |
Passenger injury measures
Test ID | CES2233 |
---|---|
Head | |
HIC-15 | 150 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.3 |
Compression (kN) | 0.4 |
Shoulder | |
Lateral deflection (mm) | 35 |
Lateral force (kN) | 1.4 |
Torso | |
Maximum deflection (mm) | 28 |
Average deflection (mm) | 21 |
Maximum deflection rate (m/s) | 3.16 |
Maximum viscous criterion (m/s) | 0.38 |
Pelvis | |
Combined force (kN) | 4.6 |
Roof strength
Rating applies to 2019-23 models
Tested vehicle: 2019 Toyota Corolla SE 4-door hatchback
Overall evaluation | |
---|---|
Curb weight | 2,998 lbs |
Peak force | 15,653 lbs |
Strength-to-weight ratio | 5.22 |
Head restraints & seats
Seat type: Manual cloth seat
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Manual cloth seat |
---|---|
Geometry | |
Backset (mm) | 24 |
Distance below top of head (mm) | 6 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 12.7 |
Head contact time (ms) | 56 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 0 |
Max neck tension (N) | 193 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Headlights
Ratings are given for 3 different headlight variations available on this vehicle.
Trim level(s)
- XLE trim equipped with Advanced Lighting package
- XSE trim equipped with Advanced Lighting package
Low-beam headlight type | LED projector |
---|---|
High-beam headlight type | LED projector |
Curve-adaptive? | Yes |
High-beam assist? | Yes |
Overall rating | |
Distance at which headlights provide at least 5 lux illumination: |
Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was good in all 4 tests.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on the gradual right curve.
Trim level(s) |
|
---|---|
Low-beam headlight type | LED projector |
High-beam headlight type | LED projector |
Curve-adaptive? | Yes |
High-beam assist? | Yes |
Overall rating Applies to 2019-22 models |
LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
---|---|---|
Straightaway right edge | 88.2 m | None |
Straightaway left edge | 45.8 m | None |
250m radius right curve, right edge | 69.4 m | None |
250m radius left curve, left edge | 48.1 m | None |
150m radius right curve, right edge | 67.3 m | None |
150m radius left curve, left edge | 46.0 m | None |
HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
---|---|
Straightaway right edge | 130.4 m |
Straightaway left edge | 127.0 m |
250m radius right curve, right edge | 81.2 m |
250m radius left curve, left edge | 81.5 m |
150m radius right curve, right edge | 71.4 m |
150m radius left curve, left edge | 69.7 m |
Trim level(s)
- L trim; built after November 2021
- LE trim; built after November 2021
- Hybrid LE trim; built after November 2021
- SE trim; built after November 2021
- XLE trim; built after November 2021
- XSE trim; built after November 2021
Low-beam headlight type | LED projector |
---|---|
High-beam headlight type | LED projector |
Curve-adaptive? | No |
High-beam assist? | Yes |
Overall rating | |
Distance at which headlights provide at least 5 lux illumination: |
Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on both right curves and inadequate on both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was inadequate in all 4 tests.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on the gradual right curve.
Trim level(s) |
|
---|---|
Low-beam headlight type | LED projector |
High-beam headlight type | LED projector |
Curve-adaptive? | No |
High-beam assist? | Yes |
Overall rating Applies to 2022 models built after November 2021 |
LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
---|---|---|
Straightaway right edge | 94.2 m | None |
Straightaway left edge | 50.1 m | None |
250m radius right curve, right edge | 60.8 m | None |
250m radius left curve, right edge | 46.7 m | None |
150m radius right curve, right edge | 49.6 m | None |
150m radius left curve, left edge | 44.2 m | None |
HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
---|---|
Straightaway right edge | 149.5 m |
Straightaway left edge | 138.5 m |
250m radius right curve, right edge | 63.6 m |
250m radius left curve, left edge | 62.3 m |
150m radius right curve, right edge | 48.6 m |
150m radius left curve, left edge | 47.8 m |
Trim level(s)
- L trim; built before December 2021
- LE trim; built before December 2021
- Hybrid LE trim; built before December 2021
- SE trim; built before December 2021
- XLE trim; built before December 2021
- XSE trim; built before December 2021
Low-beam headlight type | LED projector |
---|---|
High-beam headlight type | LED projector |
Curve-adaptive? | No |
High-beam assist? | Yes |
Overall rating | |
Distance at which headlights provide at least 5 lux illumination: |
Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was fair on both right curves and inadequate on both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
Trim level(s) |
|
---|---|
Low-beam headlight type | LED projector |
High-beam headlight type | LED projector |
Curve-adaptive? | No |
High-beam assist? | Yes |
Overall rating Applies to 2019-22 models built before December 2021 |
LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
---|---|---|
Straightaway right edge | 76.9 m | None |
Straightaway left edge | 45.0 m | None |
250m radius right curve, right edge | 58.3 m | None |
250m radius left curve, right edge | 36.3 m | None |
150m radius right curve, right edge | 50.4 m | None |
150m radius left curve, left edge | 40.2 m | None |
HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
---|---|
Straightaway right edge | 137.5 m |
Straightaway left edge | 123.5 m |
250m radius right curve, right edge | 68.9 m |
250m radius left curve, left edge | 63.8 m |
150m radius right curve, right edge | 53.3 m |
150m radius left curve, left edge | 50.1 m |
Front crash prevention: vehicle-to-vehicle
Front crash prevention: pedestrian (day)
Front crash prevention: pedestrian (night)
Seat belt reminders
Rating applies to 2022 models
Overall evaluation | |
---|---|
Front row | |
Unbelted occupant alert (audible & visual) | |
Initiation time | |
Duration | Long enough (90+ seconds) |
Volume | |
Audio frequency | |
Second row | |
Startup status alert (visual) | |
Initiation time | |
Duration at least 60 seconds | |
Belt disengaged alert (audible & visual) | |
Initiation time | |
Duration at least 30 seconds | |
Volume | |
Audio frequency |
Background cabin sound pressure level at 24 km/h | 55 dB |
Audible signal sound pressure level at 24 km/h | 76 dB |
Difference between background and signal | 21.3 dB |
Background cabin sound pressure level at 40 km/h | 58 dB |
Audible signal sound pressure level at 40 km/h | 77 dB |
Difference between background and signal | 18.3 dB |
Dominant audio frequency | 800 Hz |
Child seat anchors
Rating applies to 2020-25 models
Overall evaluation | + extra LATCH positions |
Vehicle trim | L |
Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.
Note: When anchors are borrowed, they aren't available to use in their designated positions.
Overall evaluation | + extra LATCH positions |
Vehicle trim | L |
Seat type | cloth |
G | Good |
A | Acceptable |
M | Marginal |
P | Poor |
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
Lower anchor(s) can be borrowed from adjacent positions(s) | |
No hardware available |
Details by seating position
1 | |
---|---|
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
not too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors | |
2 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
Can be borrowed from 1 and 3 | |
3 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
not too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors |
Seat position 21
Lower anchor A | |
---|---|
Open access rated | Yes |
Depth | Visible |
Force (lbs) | 0 |
Clearance angle (degrees) | 75 |
Lower anchor B | |
Open access rated | Yes |
Depth | Visible |
Force (lbs) | 0 |
Clearance angle (degrees) | 75 |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
Lower anchor A | |
---|---|
Lower latch is shared for this seat position | |
Lower anchor B | |
Lower latch is shared for this seat position | |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
Lower anchor A | |
---|---|
Open access rated | Yes |
Depth | Visible |
Force (lbs) | 0 |
Clearance angle (degrees) | 77 |
Lower anchor B | |
Open access rated | Yes |
Depth | Visible |
Force (lbs) | 0 |
Clearance angle (degrees) | 78 |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
