Top Safety PickTop Safety Pick criteria

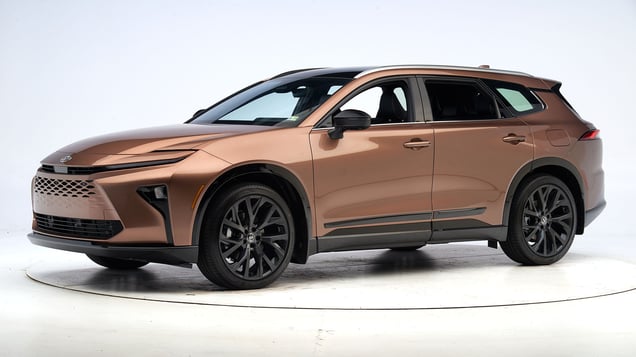

2025 Toyota Crown Signia

midsize SUV / 4-door SUV

2025 Toyota Crown Signia 4-door SUV

Crashworthiness

Rating overview
Evaluation criteriaRating
Small overlap front
G
Moderate overlap front: original test
G
Side: updated test
G

Crash avoidance & mitigation

Evaluation criteriaRating
Headlights
G
Front crash prevention: vehicle-to-vehicle 2.0
Standard system
G
Front crash prevention: pedestrian
Standard system
G

Seat belts & child restraints

Evaluation criteriaRating
LATCH ease of use
G
+

Other available safety features

  • Optional blind spot detection
  • Standard lane departure warning & prevention
  • Optional rear automatic braking

Key

  • Good
  • Acceptable
  • Marginal
  • Poor

Small overlap front

The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.

Driver-side

  • Rating applies to 2025 models

Tested vehicle: 2025 Toyota Crown Signia Limited 4-door 4wd

The Toyota Crown Signia was introduced in the 2025 model year.

Evaluation criteriaRating
Overall driver-side evaluation
G
Structure and safety cage
G
Driver injury measures
Head/neck
G
Chest
G
Hip/thigh
G
Lower leg/foot
G
Driver restraints and dummy kinematics
G

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Intrusion into the driver's space was maintained well, and risk of injuries to the dummy's legs and feet was very low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteriaMeasurement
Test ID CEN2407
Lower occupant compartment
Lower hinge pillar max (cm) 4
Footrest (cm) 4
Left toepan (cm) 4
Brake pedal (cm) 3
Parking brake (cm)
Rocker panel lateral average (cm) 0
Upper occupant compartment
Steering column 1
Upper hinge pillar max (cm) 3
Upper dash (cm) 5
Lower instrument panel (cm) 5

Driver injury measures

Evaluation criteriaMeasurement
Test ID CEN2407
Head
HIC-15 61
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 9
Maximum Nij 0.17
Chest maximum compression (mm) 19
Femur (kN)
Left 0.7
Right 0.5
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.29
Right 0.38
Tibia axial force (kN)
Left 1.4
Right 1.7
Foot acceleration (g)
Left 39
Right 43

Passenger-side

  • Rating applies to 2025 models

Tested vehicle: 2025 Toyota Crown Signia XLE 4-door 4wd

The Toyota Crown Signia was introduced in the 2025 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2025 Crown Signia conducted by Toyota.

Evaluation criteriaRating
Overall passenger-side evaluation
G
Structure and safety cage
G
Passenger injury measures
Head/neck
G
Chest
G
Hip/thigh
G
Lower leg/foot
G
Passenger restraints and dummy kinematics
The dummy’s head contacted the right side of the frontal airbag but began to move into the gap between the frontal and side curtain airbags, leaving the head vulnerable to contact with forward structure. The inflated side curtain airbag has sufficient forward coverage to protect the head from contact with side structure and outside objects.
A
Driver injury measures
Head/neck
G
Chest
G
Hip/thigh
G
Lower leg/foot
G
Driver restraints and dummy kinematics
G
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Evaluation criteriaMeasurement
Test ID VTP2415
Lower occupant compartment
Lower hinge pillar max (cm) 5
Footrest (cm) 8
Right toepan (cm) 9
Center toepan (cm) 5
Rocker panel lateral average (cm) 1
Upper occupant compartment
Center dash (cm) 2
Upper hinge pillar max (cm) 3
Upper dash (cm) 2
Right lower dash (cm) 2

Passenger injury measures

Evaluation criteriaMeasurement
Test ID VTP2415
Head
HIC-15 126
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 11
Maximum Nij 0.20
Chest maximum compression (mm) 16
Femur (kN)
Left 1.4
Right 1.6
Knee displacement (mm)
Left 2
Right 3
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.44
Right 0.40
Tibia axial force (kN)
Left 2.6
Right 1.6
Foot acceleration (g)
Left 40
Right 51

Driver injury measures

Evaluation criteriaMeasurement
Test ID VTP2415
Head
HIC-15 72
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 9
Maximum Nij 0.18
Chest maximum compression (mm) 19
Femur (kN)
Left 0.9
Right 1.2
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.39
Right 0.50
Tibia axial force (kN)
Left 2.0
Right 2.1
Foot acceleration (g)
Left 26
Right 44

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2025 models

Tested vehicle: 2025 Toyota Crown Signia XLE 4-door 4wd

The Toyota Crown Signia was introduced in the 2025 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test of a 2025 Crown Signia conducted by Toyota.

Evaluation criteriaRating
Overall evaluation
G
Structure and safety cage
G
Driver injury measures
Head/neck
G
Chest
G
Leg/foot, left
G
Leg/foot, right
G
Driver restraints and dummy kinematics
G
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteriaMeasurement
Test ID VTF2405
Footwell intrusion
Footrest (cm) 6
Left (cm) 8
Center (cm) 10
Right (cm) 9
Brake pedal (cm) 5
Instrument panel rearward movement
Left (cm) 1
Right (cm) 1
Steering column movement
Upward (cm) 0
Rearward (cm) -6
A-pillar rearward movement (cm) 0

Driver injury measures

Evaluation criteria Measurement
Test ID VTF2405
Head
HIC-15 127
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 36
Maximum Nij 0.40
Chest maximum compression (mm) 29
Legs
Femur force - left (kN) 1.2
Femur force - right (kN) 2.0
Knee displacement - left (mm) 1
Knee displacement - right (mm) 1
Maximum tibia index - left 0.32
Maximum tibia index - right 0.74
Tibia axial force - left (kN) 1.9
Tibia axial force - right (kN) 3.9
Foot acceleration (g)
Left 62
Right 67

About the original moderate overlap front test

Side: updated test

Rating applies to 2025 models

Tested vehicle: 2025 Toyota Crown Signia XLE 4-door 4wd

The Toyota Crown Signia was introduced in the 2025 model year. Side 2.0 ratings are assigned by the Institute based on a test of a 2025 Crown Signia conducted by Toyota.

Evaluation criteriaRating
Overall evaluation
G
Structure and safety cage
A
Driver injury measures
Head/neck
G
Torso
G
Pelvis
A
Driver head protection
G
Rear passenger injury measures
Head/neck
G
Torso
G
Pelvis
G
Rear passenger head protection
G
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteria Measurement
Test ID VTS2420
B-pillar to longitudinal centerline of driver's seat (cm) -17.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Evaluation criteria Measurement
Test ID VTS2420
Head
HIC-15 89
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 16
Lateral force (kN) 0.9
Torso
Maximum deflection (mm) 29
Average deflection (mm) 20
Maximum deflection rate (m/s) 3.82
Maximum viscous criterion (m/s) 0.29
Pelvis
Combined force (kN) 4.9

Passenger injury measures

Evaluation criteria Measurement
Test ID VTS2420
Head
HIC-15 108
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 24
Lateral force (kN) 0.9
Torso
Maximum deflection (mm) 27
Average deflection (mm) 19
Maximum deflection rate (m/s) 3.69
Maximum viscous criterion (m/s) 0.49
Pelvis
Combined force (kN) 3.8

About the side crash test

Headlights

Trim level(s)

  • All trims
Evaluation criteriaRating
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
G
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the sharp left and both right curves and fair on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on the gradual right and both left curves and fair on the sharp right curve.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test
Evaluation criteria Measurement
Trim level(s)
  • All trims
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2025 models
G
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 99.1 m None
Straightaway left edge 53.0 m None
250m radius right curve, right edge 78.4 m None
250m radius left curve, left edge 64.2 m None
150m radius right curve, right edge 60.2 m None
150m radius left curve, left edge 55.4 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 128.9 m
Straightaway left edge 128.1 m
250m radius right curve, right edge 84.4 m
250m radius left curve, left edge 84.4 m
150m radius right curve, right edge 62.7 m
150m radius left curve, left edge 65.0 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle 2.0

Rating applies to all 2025 models

System details

  • standard Pre-Collision System with Pedestrian Detection

Overall evaluation

G

Passenger car target

Test runSpeed reductionTimely warning?
31 mph/target centeredCollision avoided
31 mph/target off-centerCollision avoided
37 mph/target centeredCollision avoided
37 mph/target off-centerCollision avoided
43 mph/target centeredCollision avoided
43 mph/target off-centerCollision avoided

Motorcycle target

Test runSpeed reductionTimely warning?
31 mph/target centeredCollision avoided
31 mph/target off-centerCollision avoided
37 mph/target centeredCollision avoided
37 mph/target off-centerCollision avoided
43 mph/target centeredCollision avoided
43 mph/target off-centerCollision avoided

Semitrailer

Only warning is tested with the semitrailer.

Test runTimely warning?
31 mph/target centered
37 mph/target centered
43 mph/target centered

About the front crash prevention test

Front crash prevention: pedestrian

Rating applies to all 2025 models

System details

  • standard Pre-Collision System with Pedestrian Detection
Evaluation criteriaRating
Overall evaluation
G
Includes high-beam assist credit

Crossing child — day

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Crossing adult — night

  • In the 12 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.

Parallel adult — night

  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 37 mph test, this vehicle avoided a collision when using its high beams and a warning was issued 2.1 seconds before impact. When using its low beams, this vehicle avoided a collision and a warning was issued 1.9 seconds before impact.

About the pedestrian front crash prevention test

Child seat anchors

Rating applies to 2025 models

Evaluation criteriaRating
Overall evaluation
G
+
extra LATCH positions
Vehicle trimLimited
Seat type leatherette

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Evaluation criteriaRating
Overall evaluation
G
+
extra LATCH positions
Vehicle trimLimited
Seat type leatherette
1 2 3
Rating iconRating
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

PositionRating
1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
Can be borrowed from 1 and 3
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 92
Lower anchor B
Open access rated No
Depth (cm) N/A
Force (lbs) 0
Clearance angle (degrees) 90
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned for use of LATCH		 Yes

Seat position 22

2

Lower anchor A
Lower latch is shared for this seat position
Lower anchor B
Lower latch is shared for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned for use of LATCH		 Yes

Seat position 23

1

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 83
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 91
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned for use of LATCH		 Yes

About the child seat anchor evaluation
