Top Safety Pick +Top Safety Pick criteria

2022 Toyota RAV4 Prime

small SUV / 4-door SUV

Plug-in hybrid

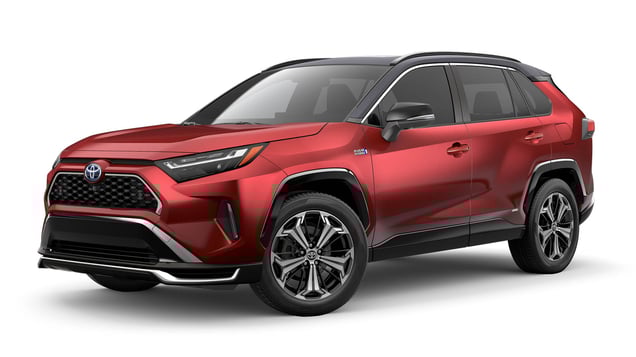

2022 Toyota RAV4 Prime 4-door SUV
Photo courtesy of Toyota Motor North America

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Standard system
Superior
Front crash prevention: pedestrian (day)
Standard system
Superior

Seat belts & child restraints

LATCH ease of use
+

Other available safety features

  • Standard blind spot detection
  • Standard lane departure warning & prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2021-24 models

Tested vehicle: 2021 Toyota RAV4 Prime SE 4-door 4wd

The Toyota RAV4 Prime, a plug-in hybrid variant of the Toyota RAV4, was introduced in the 2021 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test of a 2021 RAV4 Prime conducted by Toyota.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTN2008
Lower occupant compartment
Lower hinge pillar max (cm) 5
Footrest (cm) 3
Left toepan (cm) 3
Brake pedal (cm) 2
Parking brake (cm)
Rocker panel lateral average (cm) 1
Upper occupant compartment
Steering column 2
Upper hinge pillar max (cm) 4
Upper dash (cm) 4
Lower instrument panel (cm) 6

Driver injury measures

Test ID VTN2008
Head
HIC-15 110
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Extension bending moment (Nm) 9
Maximum Nij 0.25
Chest maximum compression (mm) 21
Femur (kN)
Left 1.3
Right 0.9
Knee displacement (mm)
Left 2
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.53
Right 0.48
Tibia axial force (kN)
Left 2.2
Right 2.5
Foot acceleration (g)
Left 41
Right 46

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2021-24 models

Tested vehicle: 2021 Toyota Rav4 Prime SE 4-door 4wd

The Toyota RAV4 Prime, a plug-in hybrid variant of the Toyota RAV4, was introduced in the 2021 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2021 RAV4 Prime conducted by Toyota.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
The dummy’s head contacted the right side of the frontal airbag but began to slide into the gap between the frontal and side curtain airbags, contacting the dislodged A-pillar trim. The inflated side curtain airbag has sufficient forward coverage to protect the head from contact with side structure and outside objects.
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP2008
Lower occupant compartment
Lower hinge pillar max (cm) 7
Footrest (cm) 4
Right toepan (cm) 4
Center toepan (cm) 3
Rocker panel lateral average (cm) 1
Upper occupant compartment
Center dash (cm) 2
Upper hinge pillar max (cm) 7
Upper dash (cm) 5
Right lower dash (cm) 5

Passenger injury measures

Test ID VTP2008
Head
HIC-15 86
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 23
Maximum Nij 0.29
Chest maximum compression (mm) 19
Femur (kN)
Left 1.8
Right 2.6
Knee displacement (mm)
Left 5
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.43
Right 0.41
Tibia axial force (kN)
Left 1.5
Right 0.7
Foot acceleration (g)
Left 92
Right 65

Driver injury measures

Test ID VTP2008
Head
HIC-15 53
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 9
Maximum Nij 0.18
Chest maximum compression (mm) 25
Femur (kN)
Left 0.9
Right 0.5
Knee displacement (mm)
Left 2
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.34
Right 0.27
Tibia axial force (kN)
Left 1.0
Right 1.1
Foot acceleration (g)
Left 46
Right 64

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2021-24 models

Tested vehicle: 2021 Toyota RAV4 Prime SE 4-door 4wd

The Toyota RAV4 Prime, a plug-in hybrid variant of the Toyota RAV4, was introduced in the 2021 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test of a 2021 RAV4 Prime conducted by Toyota.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF2008
Footwell intrusion
Footrest (cm) 5
Left (cm) 8
Center (cm) 9
Right (cm) 11
Brake pedal (cm) 2
Instrument panel rearward movement
Left (cm) 2
Right (cm) 4
Steering column movement
Upward (cm) 1
Rearward (cm) -5
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF2008
Head
HIC-15 155
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Extension bending moment (Nm) 23
Maximum Nij 0.33
Chest maximum compression (mm) 26
Legs
Femur force - left (kN) 1.0
Femur force - right (kN) 0.8
Knee displacement - left (mm) 4
Knee displacement - right (mm) 2
Maximum tibia index - left 0.37
Maximum tibia index - right 0.36
Tibia axial force - left (kN) 1.7
Tibia axial force - right (kN) 2.4
Foot acceleration (g)
Left 46
Right 100

About the original moderate overlap front test

Side: original test

Rating applies to 2021-24 models

Tested vehicle: 2021 Toyota RAV4 Prime SE 4-door 4wd

The Toyota RAV4 Prime, a plug-in hybrid variant of the Toyota RAV4, was introduced in the 2021 model year. Side ratings are assigned by the Institute based on a test of a 2021 RAV4 Prime conducted by Toyota.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS2007
B-pillar to longitudinal centerline of driver's seat (cm) -20.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS2007
Head HIC-15 135
Neck
Tension (kN) 0.6
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 17
Lateral force (kN) 1.0
Torso
Maximum deflection (mm) 27
Average deflection (mm) 21
Maximum deflection rate (m/s) 4.70
Maximum viscous criterion (m/s) 0.18
Pelvis
Iliac force (kN) 1.4
Acetabulum force (kN) 1.4
Combined force (kN) 2.7
Left femur
L-M force (kN) 0.3
L-M moment (Nm) 78
A-P moment (Nm) -23

Passenger injury measures

Test ID VTS2007
Head HIC-15 60
Neck
Tension (kN) 0.7
Compression (kN) 0.9
Shoulder
Lateral deflection (mm) 18
Lateral force (kN) 0.9
Torso
Maximum deflection (mm) 16
Average deflection (mm) 14
Maximum deflection rate (m/s) 2.90
Maximum viscous criterion (m/s) 0.13
Pelvis
Iliac force (kN) 0.7
Acetabulum force (kN) 2.2
Combined force (kN) 2.5
Left femur
L-M force (kN) 0.8
L-M moment (Nm) 62
A-P moment (Nm) -19

About the original side crash test

Roof strength

Rating applies to 2021-23 models

Tested vehicle: 2019 Toyota RAV4 LE 4-door 4wd

Overall evaluation
Curb weight3,500 lbs
Peak force21,009 lbs
Strength-to-weight ratio6.00

About the roof strength test

Head restraints & seats

Seat type: Manual cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seat
Geometry
Backset (mm) 18
Distance below top of head (mm) 11
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 12.2
Head contact time (ms) 57
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 231

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Trim level(s)

  • All trims
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual right and gradual left curves and inadequate on the sharp right and sharp left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test
Trim level(s)
  • All trims
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2022-24 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 100.4 m None
Straightaway left edge 56.9 m None
250m radius right curve, right edge 73.8 m None
250m radius left curve, left edge 51.1 m None
150m radius right curve, right edge 60.1 m None
150m radius left curve, left edge 45.2 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 144.5 m
Straightaway left edge 140.5 m
250m radius right curve, right edge 70.7 m
250m radius left curve, left edge 69.3 m
150m radius right curve, right edge 52.0 m
150m radius left curve, left edge 50.9 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Standard Toyota Safety Sense 2.0: Pre-Collision System with Pedestrian Detection

Overall evaluation

Applies to 2021-22 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Front crash prevention: pedestrian (day)

System details

  • standard Toyota Safety Sense 2.0/2.5/2.5+ Pre-Collision System with Pedestrian Detection

Overall evaluation

This rating applies to all 2021-24 models

Superior
Superior

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 23 mph. A warning was issued 1.5 seconds before impact.

About the pedestrian front crash prevention test

Child seat anchors

Rating applies to 2021-24 models

Overall evaluation
+
extra LATCH positions
Vehicle trimLE
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Overall evaluation
+
extra LATCH positions
Vehicle trimLE
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
Can be borrowed from 1 and 3
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 8
Clearance angle (degrees) 92
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 9
Clearance angle (degrees) 89
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
Lower latch is shared for this seat position
Lower anchor B
Lower latch is shared for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 8
Clearance angle (degrees) 90
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 8
Clearance angle (degrees) 93
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
