2022 Toyota Tacoma

small pickup / Crew cab pickup

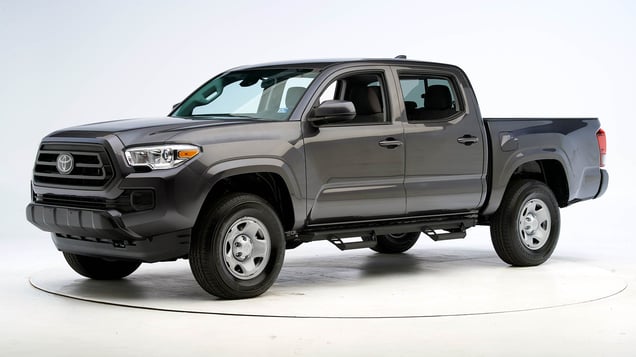

2022 Toyota Tacoma Crew cab pickup

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Moderate overlap front: updated test
Side: original test
Side: updated test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention: vehicle-to-vehicle
Standard system
Superior
Front crash prevention: pedestrian (day)
Standard system
Advanced
Front crash prevention: pedestrian (night)
Standard system
No Credit

Seat belts & child restraints

Seat belt reminders
LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Standard lane departure warning

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2016-23 models

Tested vehicle: 2017 Toyota Tacoma SR5 Double Cab 2wd

The Toyota Tacoma Double Cab was re-engineered and restyled for the 2016 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Although intrusion into the driver's space was minimal, forces on the dummy's left lower leg were high enough to indicate a moderate risk of injury.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1638
Lower occupant compartment
Lower hinge pillar max (cm) 8
Footrest (cm) 12
Left toepan (cm) 8
Brake pedal (cm) 8
Parking brake (cm)
Rocker panel lateral average (cm) 3
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 5
Upper dash (cm) 5
Lower instrument panel (cm) 4

Driver injury measures

Test ID CEN1638
Head
HIC-15 292
Peak gs at hard contact no contact
Neck
Tension (kN) 1.9
Extension bending moment (Nm) 9
Maximum Nij 0.33
Chest maximum compression (mm) 21
Femur (kN)
Left 2.3
Right 2.0
Knee displacement (mm)
Left 10
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.62
Right 0.78
Tibia axial force (kN)
Left 5.5
Right 4.0
Foot acceleration (g)
Left 91
Right 105

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2016-23 models

Tested vehicle: 2019 Toyota Tacoma SR5 Double Cab 2wd

The Toyota Tacoma Double Cab was re-engineered and restyled for the 2016 model year.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
The dummy’s movement was reasonably well controlled. The dummy’s head loaded the frontal airbag, which stayed in front of the dummy until rebound. The side curtain airbag deployed and has sufficient forward coverage to protect the head from contact with typical side structure and outside objects. The side torso airbag also deployed. However, the grab handle on the A-pillar protrudes so far into the path of the dummy's head that the rear of the head hit it.
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the passenger-side small overlap frontal crash test.

The dummy's position in relation to the door frame and dashboard after the crash test indicates that the passenger’s survival space was maintained well.

The frontal and side curtain airbags worked reasonably well together, but smeared greasepaint shows where the rear of the dummy's head hit the protruding A-pillar grab handle.

Although intrusion overall into the passenger's space was low, the unusual intrusion pattern of the footwell contributed to a likely risk of injury to the right lower leg and a moderate risk to the right foot.

Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID CEP1824
Lower occupant compartment
Lower hinge pillar max (cm) 11
Footrest (cm) 17
Right toepan (cm) 15
Center toepan (cm) 11
Rocker panel lateral average (cm) 8
Upper occupant compartment
Center dash (cm) 4
Upper hinge pillar max (cm) 5
Upper dash (cm) 6
Right lower dash (cm) 7

Passenger injury measures

Test ID CEP1824
Head
HIC-15 336
Peak gs at hard contact 63
Neck
Tension (kN) 2.1
Extension bending moment (Nm) 19
Maximum Nij 0.32
Chest maximum compression (mm) 10
Femur (kN)
Left 2.5
Right 4.1
Knee displacement (mm)
Left 8
Right 12
Knee-thigh-hip injury risk (%)
Left 0
Right 2
Maximum tibia index
Left 0.65
Right 1.50
Tibia axial force (kN)
Left 2.3
Right 10.0
Foot acceleration (g)
Left 68
Right 197

Driver injury measures

Test ID CEP1824
Head
HIC-15 109
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 9
Maximum Nij 0.16
Chest maximum compression (mm) 26
Femur (kN)
Left 1.1
Right 1.5
Knee displacement (mm)
Left 3
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.47
Right 0.49
Tibia axial force (kN)
Left 1.8
Right 2.8
Foot acceleration (g)
Left 29
Right 59

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2016-23 models

Tested vehicle: 2016 Toyota Tacoma SR5 Double Cab 4wd

The Toyota Tacoma Double Cab was re-engineered and restyled for the 2016 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Toyota.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1513
Footwell intrusion
Footrest (cm) 8
Left (cm) 10
Center (cm) 10
Right (cm) 9
Brake pedal (cm) 3
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) 5
Rearward (cm) 6
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1513
Head
HIC-15 337
Peak gs at hard contact 80
Neck
Tension (kN) 1.8
Extension bending moment (Nm) 13
Maximum Nij 0.28
Chest maximum compression (mm) 22
Legs
Femur force - left (kN) 1.2
Femur force - right (kN) 1.7
Knee displacement - left (mm) 1
Knee displacement - right (mm) 2
Maximum tibia index - left 0.28
Maximum tibia index - right 0.44
Tibia axial force - left (kN) 3.1
Tibia axial force - right (kN) 3.3
Foot acceleration (g)
Left 44
Right 103

About the original moderate overlap front test

Moderate overlap front: updated test

Rating applies to 2022-23 models

Tested vehicle: 2022 Toyota Tacoma SR Double Cab 4wd

The Toyota Tacoma Double Cab was re-engineered and restyled for the 2016 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Thigh/hip
Leg/foot
Driver restraints and dummy kinematics
Rear passenger injury measures
Head/neck
Chest
Thigh
Rear passenger restraints and dummy kinematics

View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

The rear passenger dummy's head approached the front seatback, which increases the risk of head injuries.

Rear passenger dummy injury values indicate a likely risk of injury to the head or neck and chest. During the crash, the shoulder belt remained in an ideal position on the dummy’s chest.

The rear passenger dummy's lap belt remained in the ideal position on the pelvis.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF2220
Footwell intrusion
Footrest (cm) 7
Left (cm) 9
Center (cm) 9
Right (cm) 8
Brake pedal (cm) 3
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) 3
Rearward (cm) -5
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF2220
Head
HIC-15 288
Peak gs at hard contact no contact
Neck
Tension (kN) 1.6
Extension bending moment (Nm) 20
Maximum Nij 0.25
Chest maximum compression (mm) 30
Femur (kN)
Left 1.0
Right 2.3
Knee displacement (mm)
Left 2
Right 4
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.57
Right 0.62
Tibia axial force (kN)
Left 3.6
Right 5.0
Foot acceleration (g)
Left 65
Right 116

Rear passenger injury measures

Test ID CEF2220
Head
HIC-15 for head contact during forward excursion
no contact
Peak gs at hard contact no contact
Neck
Tension (kN) 3.5
Compression (kN) 0.2
Maximum Nij for head contact during forward excursion
no contact
Chest
Chest index 56
Shoulder belt tension (kN) 8.8
Thigh (kN)
Left femur compression 1.4
Right femur compression 1.5

About the moderate overlap front test

February 2024 adjustment to rating criteria

Side: original test

Rating applies to 2016-23 models

Tested vehicle: 2016 Toyota Tacoma SR5 Double Cab 4wd

The Toyota Tacoma Double Cab was re-engineered and restyled for the 2016 model year. Side ratings are assigned by the Institute based on a test conducted by Toyota.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1512
B-pillar to longitudinal centerline of driver's seat (cm) -15.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1512
Head HIC-15 137
Neck
Tension (kN) 1.0
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 22
Lateral force (kN) 1.1
Torso
Maximum deflection (mm) 37
Average deflection (mm) 29
Maximum deflection rate (m/s) 2.99
Maximum viscous criterion (m/s) 0.37
Pelvis
Iliac force (kN) 1.9
Acetabulum force (kN) 1.3
Combined force (kN) 3.3
Left femur
L-M force (kN) 0.2
L-M moment (Nm) 66
A-P moment (Nm) -28

Passenger injury measures

Test ID VTS1512
Head HIC-15 111
Neck
Tension (kN) 0.2
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 31
Lateral force (kN) 1.0
Torso
Maximum deflection (mm) 45
Average deflection (mm) 36
Maximum deflection rate (m/s) 5.11
Maximum viscous criterion (m/s) 0.75
Pelvis
Iliac force (kN) 0.4
Acetabulum force (kN) 2.6
Combined force (kN) 2.8
Left femur
L-M force (kN) 0.4
L-M moment (Nm) 107
A-P moment (Nm) 26

About the original side crash test

Side: updated test

Rating applies to 2016-23 models

Tested vehicle: 2022 Toyota Tacoma SR Double Cab 4wd

The Toyota Tacoma Double Cab was re-engineered and restyled for the 2016 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES2229
B-pillar to longitudinal centerline of driver's seat (cm) -9.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES2229
Head
HIC-15 139
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 4
Lateral force (kN) 0.4
Torso
Maximum deflection (mm) 29
Average deflection (mm) 18
Maximum deflection rate (m/s) 2.27
Maximum viscous criterion (m/s) 0.35
Pelvis
Combined force (kN) 3.9

Passenger injury measures

Test ID CES2229
Head
HIC-15 242
Peak gs at hard contact no contact
Neck
Tension (kN) 0.3
Compression (kN) 0.5
Shoulder
Lateral deflection (mm) 27
Lateral force (kN) 1.5
Torso
Maximum deflection (mm) 32
Average deflection (mm) 24
Maximum deflection rate (m/s) 3.65
Maximum viscous criterion (m/s) 0.53
Pelvis
Combined force (kN) 3.7

About the side crash test

Roof strength

Rating applies to 2016-23 models

Tested vehicle: 2017 Toyota Tacoma SR5 Double Cab 2wd

Overall evaluation
Curb weight4,170 lbs
Peak force17,213 lbs
Strength-to-weight ratio4.13

About the roof strength test

Head restraints & seats

Seat type: Manual cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seat
Geometry
Backset (mm) 22
Distance below top of head (mm) 30
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 14.2
Head contact time (ms) 53
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 398

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • TRD Off-Road trim equipped with LED headlights with LED Daytime Running Lights package
  • TRD Sport trim equipped with LED headlights with LED Daytime Running Lights package
  • TRD Pro trim
  • TRD Limited trim
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test
Trim level(s)
  • TRD Off-Road trim equipped with LED headlights with LED Daytime Running Lights package
  • TRD Sport trim equipped with LED headlights with LED Daytime Running Lights package
  • TRD Pro trim
  • TRD Limited trim
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2020-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 86.3 m None
Straightaway left edge 49.6 m None
250m radius right curve, right edge 74.5 m None
250m radius left curve, right edge 48.9 m None
150m radius right curve, right edge 60.0 m None
150m radius left curve, left edge 52.2 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 164.7 m
Straightaway left edge 163.8 m
250m radius right curve, right edge 95.2 m
250m radius left curve, left edge 83.7 m
150m radius right curve, right edge 71.0 m
150m radius left curve, left edge 70.9 m

Trim level(s)

  • SR trim
  • SR5 trim
  • TRD Sport trim
  • TRD Off-Road trim
Low-beam headlight typeHalogen projector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • SR trim
  • SR5 trim
  • TRD Sport trim
  • TRD Off-Road trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2018-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 68.0 m None
Straightaway left edge 40.6 m None
250m radius right curve, right edge 50.2 m None
250m radius left curve, left edge 41.9 m None
150m radius right curve, right edge 40.9 m None
150m radius left curve, left edge 37.4 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 142.6 m
Straightaway left edge 118.9 m
250m radius right curve, right edge 68.4 m
250m radius left curve, left edge 63.3 m
150m radius right curve, right edge 52.5 m
150m radius left curve, left edge 51.8 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Standard Pre-Collision System with Pedestrian Detection

Overall evaluation

Applies to 2018-23 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Front crash prevention: pedestrian (day)

System details

  • standard Pre-Collision System with Pedestrian Detection

Overall evaluation

This rating applies to all 2022-23 models

Advanced
Advanced

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 3 mph.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 21 mph.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 14 mph. A warning was issued 1.1 seconds before impact.

About the pedestrian front crash prevention test

Front crash prevention: pedestrian (night)

Night

System details

  • standard Pre-Collision System with Pedestrian Detection

Overall evaluation

Includes high-beam assist credit

This rating applies to 2022-23 models of the following trim lines: SR trim, SR5 trim, TRD Sport trim, TRD Off-Road trim
No Credit
No Credit

Crossing adult

  • In the 12 mph test, impact speed was reduced by 3 mph when using its high beams. When using its low beams, this vehicle failed to slow.
  • In the 25 mph test, this vehicle failed to slow when using its high beams. When using its low beams, this vehicle failed to slow.

Parallel adult

  • In the 25 mph test, impact speed was reduced by 7 mph when using its high beams. When using its low beams, this vehicle failed to slow.
  • In the 37 mph test, impact speed was reduced by 5 mph when using its high beams and a warning was issued 0.6 seconds before impact. When using its low beams, impact speed was reduced by 2 mph and a warning was issued 0.2 seconds before impact.

About pedestrian front crash prevention test

Seat belt reminders

Rating applies to 2022-23 models

Overall evaluation
Front row
Unbelted occupant alert (audible & visual)
Initiation time
DurationToo short (8-89 seconds)
Volume
Audio frequency
Second row
Startup status alert (visual)
None
Technical measurements for this test
Background cabin sound pressure level at 24 km/h 50 dB
Audible signal sound pressure level at 24 km/h 66 dB
Difference between background and signal 16.9 dB
Background cabin sound pressure level at 40 km/h 54 dB
Audible signal sound pressure level at 40 km/h 69 dB
Difference between background and signal 15.6 dB
Dominant audio frequency 2000 Hz

About the seat belt reminder evaluation

Child seat anchors

Rating applies to 2017-23 models

Overall evaluation
Vehicle trimSR5
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimSR5
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 27
Clearance angle (degrees) 73
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 12
Clearance angle (degrees) 65
Tether anchor
Location Back wall
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Back wall
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 15
Clearance angle (degrees) 72
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 11
Clearance angle (degrees) 72
Tether anchor
Location Back wall
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
